Luglio Offerta Speciale OBDSTAR G3 FULL 2026 OBDSTAR X300 Classic G3 (KEY MASTER G3) Key Programmer con Built-in CAN FD DoIP Supporta Car, E-Car, HD, Motorcycle, Marine IMMO, VAG MQB48
Prezzo al dettaglio: €1,212.00
OBDSTAR X300 Classic G3: Classic G3
7 OBDSTAR X300 Classic G3: Classic G3
AutoOBD2 Luglio Offerta Speciale :
Luglio Il prezzo più basso,clica qui per acquistare!
X431 PRO Elite/X431 V/V+/PRO TT/PRO5/PAD VII con ottimo prezzo,EU spedizione no tasse!
100% Originale Launch X431 Serie,Clica qui!
VIP Prezzo Contattarci Whatsapp: +86 18580434781
Luglio Il prezzo più basso,clica qui per acquistare!
X431 PRO Elite/X431 V/V+/PRO TT/PRO5/PAD VII con ottimo prezzo,EU spedizione no tasse!
100% Originale Launch X431 Serie,Clica qui!
VIP Prezzo Contattarci Whatsapp: +86 18580434781
Motore Kit Cavi +key Sim-2 Regali Gratis
Spedizione:
Spedizione Gratuita
Servizio di Trasporto EspressoTempo di Consegna: 8-12 giorni lavorativi.I dettagli »
Peso:
6.5KG
Pacchetto:
52cm*40cm*17cm
( Inch: 20.47*15.75*6.69 )
Ritorno:
Rimborso entro 30 giorni, il compratore paga il trasporto di ritorno. I dettagli»
File di download correlati
Descrizione del prodotto
X300 Classic G3 è lo scanner intelligente di nuova generazione di OBDSTAR, che eredita pienamente i numerosi vantaggi di OBDSTAR nella tecnologia automobilistica/veicolo commerciale, come un'ampia copertura di modelli di auto e varie funzioni, e aumenta in modo completo le funzioni di programmazione di auto elettriche, moto , marino (moto d'acqua), ecc. Un buon aiuto per il maestro fabbro automobilistico.
2026 OBDSTAR X300 Classic G3 Programmatore Chiave 2 anni di aggiornamento gratuito
OBDSTAR X300 Classic G3 è lo scanner intelligente di nuova generazione di OBDSTAR, che eredita appieno i numerosi vantaggi di OBDSTAR nel campo della tecnologia automobilistica e dei veicoli commerciali, come l'ampia copertura di modelli di auto e le diverse funzionalità, e amplia ulteriormente le funzioni di programmazione per veicoli elettrici, motociclette, imbarcazioni (moto d'acqua), ecc. Un valido strumento per i professionisti della duplicazione chiavi auto.
OBDSTAR Key Master G3 Highlights:
1. Latest Version (2025): Upgrade of Key Master X300 DP Plus with enhanced hardware & functions.
2. Built-in Features: CAN-FD, Low Speed (Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test, RFID.
3. PIN Extraction/BCM Cloning: First locksmith tool to support BCM PIN extraction & cloning on bench without cutting immo-boxes or dealer pins.
4. High-Performance Hardware: RK3568 Hexa-Core Processor, 4G+64G storage, high-brightness display, HDMI, dual-band Wi-Fi, Bluetooth 5.0, STM32H723 VCI.
5. OS: Android 11 for smoother operation.
6. Supported Vehicle Types: Car, Heavy-Duty, E-Car, Motorcycle, Marine (jet-ski).
7. Adapters Included: MP001 (replaces P003/P003+), P004.
8. Free Gifts: Key SIM smart key emulator + motorcycle IMMO cable set (M034, M037, M040, M041, M042, M043, M053, M054).
9. Software & Licenses: 2 years free updates; renewal $249/year.
11. With the ECU Cloning license, it works like DC706.
12. Buy X300 Classic G3 programming tool, get free Key Sim Kit and Motorcycle IMMO Accessories(M034, M037, M040, M041, M042, M043, M053, M054)
13. Warehouse & Shipping: Stock in EU warehouses, No Tax
OBDSTAR Key Master G3 Specification:
★ Two Years free update online
★ Update version of X300 DP Plus
★ RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
★ Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
★ Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
★ Language: ONLY English
★ Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool.
★ Optional Gift: Key SIM emulator or Motorcycle cables set (M034, M037, M040, M041, M042, M043, M053, M054) Please select the gift you prefer when place order
OBDSTAR X300 Classic G3 Features:
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.
8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and other functions are available.
⚠️ Disclaimer: Some functions of this product involve instrument repair, replacement, and legal calibration only. It is prohibited to use them for illegal mileage alteration or fraudulent purposes. The user is solely responsible for lawful usage.
Key Master G3 Function Module List:
✅ Programming IMMO(Keys)
✅ IMMO OFF
✅ Remote Test
✅ R/W EEPROM/MCU
✅ R/W Transponder
✅ Unlock ECU
✅ Make Dealer Keys
✅ ECU Advanced
✅ Make Start Keys
✅ OBDII
✅ Renew Key
✅ IMMO OFF
✅ Remote Test
✅ R/W EEPROM/MCU
✅ R/W Transponder
✅ Unlock ECU
✅ Make Dealer Keys
✅ ECU Advanced
✅ Make Start Keys
✅ OBDII
✅ Renew Key
✅ Mileage correction (add-on module)
✅ ECU/TCU Cloning (add-on module, newly released checksum correction function)
✅ Airbag reset (add-on module)
✅ Test platform (add-on module)
✅ Benz key programming (add key, AKL) and ECU/TCU/ISM reset/program (Purchase Benz FBS3 kit)
✅ ECU/TCU Cloning (add-on module, newly released checksum correction function)
✅ Airbag reset (add-on module)
✅ Test platform (add-on module)
✅ Benz key programming (add key, AKL) and ECU/TCU/ISM reset/program (Purchase Benz FBS3 kit)
A: IMMO
A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO
A1.4: MOTO IMMO
A1.5: MARINE IMMO
A2.1 Remote Test
A3.1 ECU Advanced
A4.1 Make Key
A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key
B: ODO METER
B1.1: CAR ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset
C: ECU Flasher
C1.1: CAR ECM
C1.2: CAR TCM
C1.3: CAR BODY
C2.1: MOTO ECM
D: Crash Reset
D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset
E: Test Platform
E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C Panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV
E1.7: E-CAR AUDIO
E1.8: E-CAR EBA
Any of the above functions can be matched at will.
OBDSTAR X300 Classic G3 vs X300 DP Plus C pack
| Item | X300 DP Plus C | X300 Classic G3 | |
| Hardware | Operation system | Android 5.1.1 | Android 11 |
| OTA | x | √ | |
| Screen recording | x | √ | |
| Wireless screen casting | x | √ | |
| CPU | qual core ARM cortex A9 1.4GHz | Quad-core 64-bit Cortex-A55 2.0GHz | |
| Battery | 3700mAh | 9000mAh | |
| Storage capacity | 1+32GB | 4+64GB | |
| LCD | 8.0 inch | 8.0 inch fully laminated sunlight readable screen | |
| Camera | Rear camera 500W pixels | Rear camera 800W pixels, auto-focus | |
| Bluetooth | Bluetooth 4.2 | Bluetooth 5.0(Compatible with BT 4.2) | |
| External interfaces | x | RJ-45√ | |
| x | HDMI√ | ||
| TYPE-A | TYPE-A,TYPE-C | ||
| WiFi | 2.4G | Dual-band 2.4G/5GHZ | |
| VCI | STM32F105 | STM32H723 | |
| CANFD Adapter Required | CANFD built in√ | ||
| x | DOIP built in√ | ||
| x | Low Speed(Fault Tolerant) CAN built in√ | ||
| x | RS232, RS485 built in√ | ||
| All other common protocol types | All other common protocol types | ||
| RFID | P001 Required | Built in√ | |
| Remote Test | RT100 Required | Built in√ | |
| Renault Converter | Renault Converter Required | Built in√ | |
| Weight | About 1kg | 1.5kg (main unit) | |
| Dimension | 254mm*174mm*35mm | 270.5mm*165mm*39mm | |
| Functions | Diagnosis | √ | x |
| OBDⅡ | √ | √ | |
| Car IMMO | √ | √ | |
| MOTO IMMO | √ | √ | |
| HD IMMO | √ | √ | |
| Marine IMMO | x | √ | |
| E-Car IMMO | x | √ | |
| RFID | x | √ | |
| Make key | x | √ | |
| Unlock Smart key | x | √ | |
| Renew key | √ | √ | |
| Read/Write EEPROM MCU | √ | √ | |
| ECU advanced (Includes ECU unlock) | x | √ | |
| Oil/Service reset | √ | √ | |
| Other service function | √ | x | |
| Remote test | x | √ | |
| ECU flasher IMMO (IMMO OFF, ISN, IMMO DATA) | x | √ | |
| ECU flasher (Clone) | √ Limited supported models, different with DC706 and G3 |
Paid activation | |
| Car/Motorcycle cluster recalibration | √ | Paid activation | |
| Airbag reset | √ | Paid activation | |
| Test Platform | x | Paid activation |
X300 Classic G3 Function Display:
X300 Classic G3 Menu:
OBDSTAR G3 Recent Update:
- Adds 2019- Renault RH850 and Nissan 2021- RH850 proximity key programming
- Adds BMW Motorcycle 4D Blade and 8A Proximity Key Programming
- Update 2022- Toyota/Lexus 4A/8A proximity key programming, update Ford 2021-2023 proximity key programming (March 2025)
- Update Opel Vivaro 2001-2014 blade, Renault Austral 2023 smart key, Toyota Sequoia 2020-, Jeep Commander 2022-, America Aaargo/Toro/Cronos 2018-2023 smart key programming etc
- Update Audi, Toyota Lexus steering angle sensor repair function
- Honda Accord, Avancier, Elysion, Inspire, U-RV, Vezel 2022-, Nissan Sentra 2022-, Toyota Corolla 2023-, Dacia Duster 2021- AKL
- Adds Volvo ABS module reset and Buick/ Ford/ Cadillac BMS reset
- Add Fiat, Alfa, Maserati, Dodge immo key programming till 2023
- Add BMW AISIN GA8F/GA6F series, VW AQ600, AQ250, AL750, AL1000 etc Gearbox TCUs
- Add PSA hybrid -2023, Eletric -2023 pin code reading with working key
- Add Bentley Lamborghini MLB IMMO function (Add MLB key via OBD)
- Add Greatwall WEY GAOSHAN 2024, WEY TANK 400 2023-, Havel H5 2023 and Havel MENGLONG 2023 proximity programming
- Add Hyundai IONIQ5 Palisade Carnival K5 2023- blade, remote and proximity key programming
- Adds Volvo ABS and ECM learning function
- Adds MG1CS001, EDC16, EDC17 and ME7.x.x ECUs (with ECU license)
- Add Chevrolet Montana 2023, Onix 2020-2023, SPIN 2019-2023, Buick Encore GX 2020-2024, Cadillac CT6 2023, Escalade ESV 2023, XT4 2024, XT4 2020-2023, XT6 2020-2023, Camato 2020-2023, Silverado 2024, Silverado 1500 2024, Silverado 1500 2021-2023, Silverado 2500 2024, Silverado 3500 2024, Trailblazer 2020-2023, Trax 2023-2024, GMC Acadia 2020-203, Canyon 2023,GMC Sierra 2024, Sierra 1500 2024, Sierra 1500 2020-2023, Sierra 2500 2024, Sierra 3500 2024, Yukon XL 2022-2023 proximity key programming
- Adds Lexus NX 2022-, RX 2023- add proximity key free pin code
- Adds Volvo S60, S90, V60, V90, XC40, XC60, XC90 2022- proximity key programming
- Adds Ford F250, F350, ECOSPORT proximity key programming till 2022 and many other Ford smart key/blade key programming

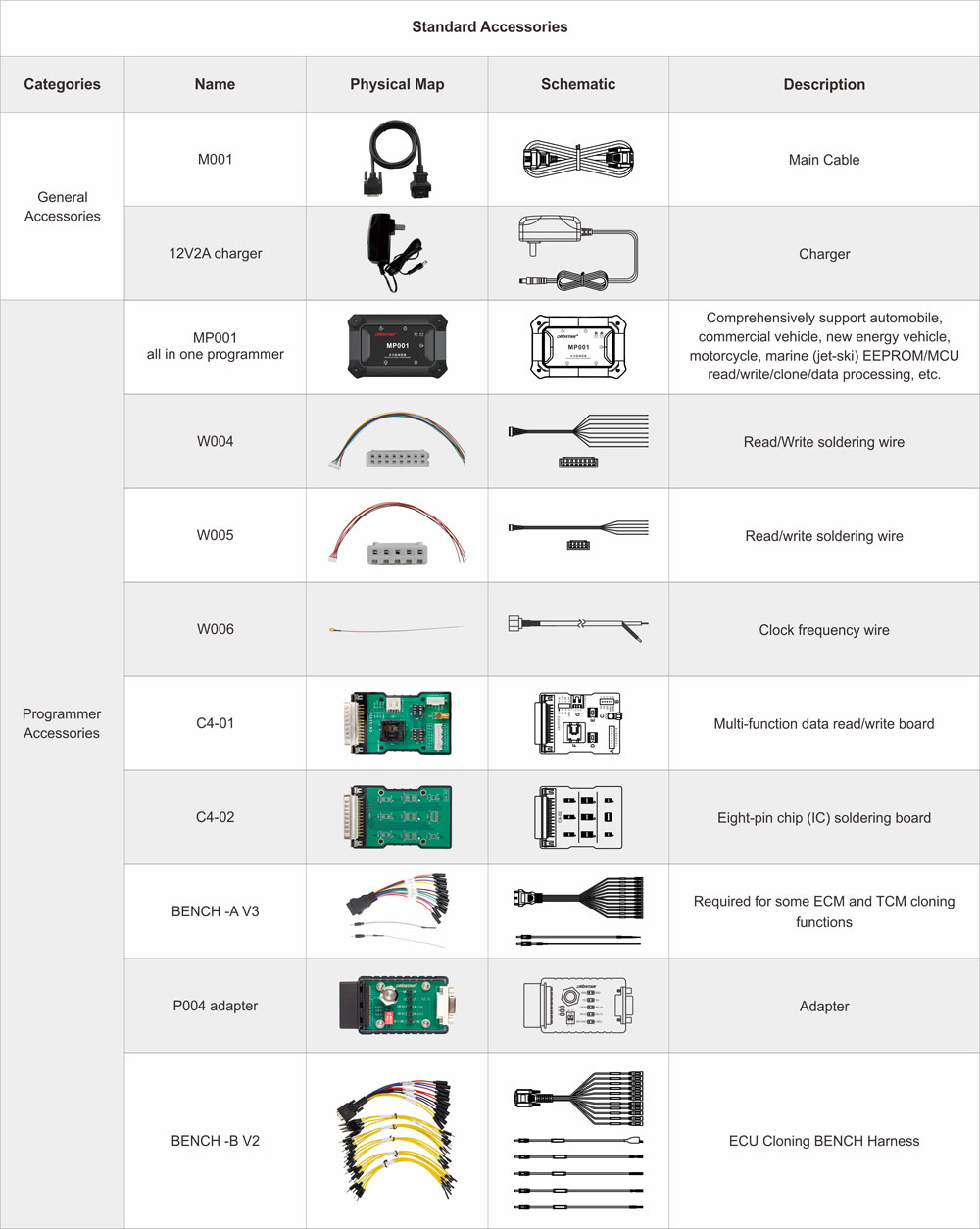

1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x W006 clock frequency wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

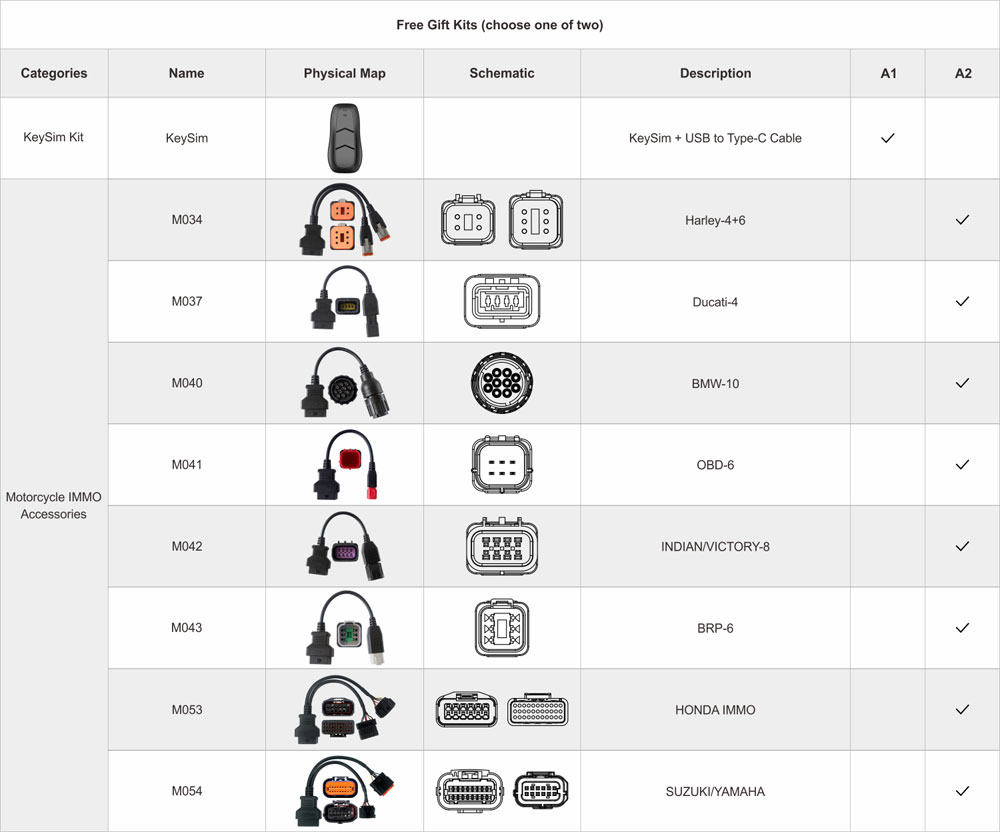

Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
Note: From June 1, 2026 onwards, the original A2 free gift will no longer be provided for free, but can be purchased separately.
Free gift kits (get both)
FAQs:
Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?
A: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.
Q: Can I use the accessories of an old product I have previously purchased?
A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.
Q: What is ECU Unlock function of X300 Classic G3?
A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
