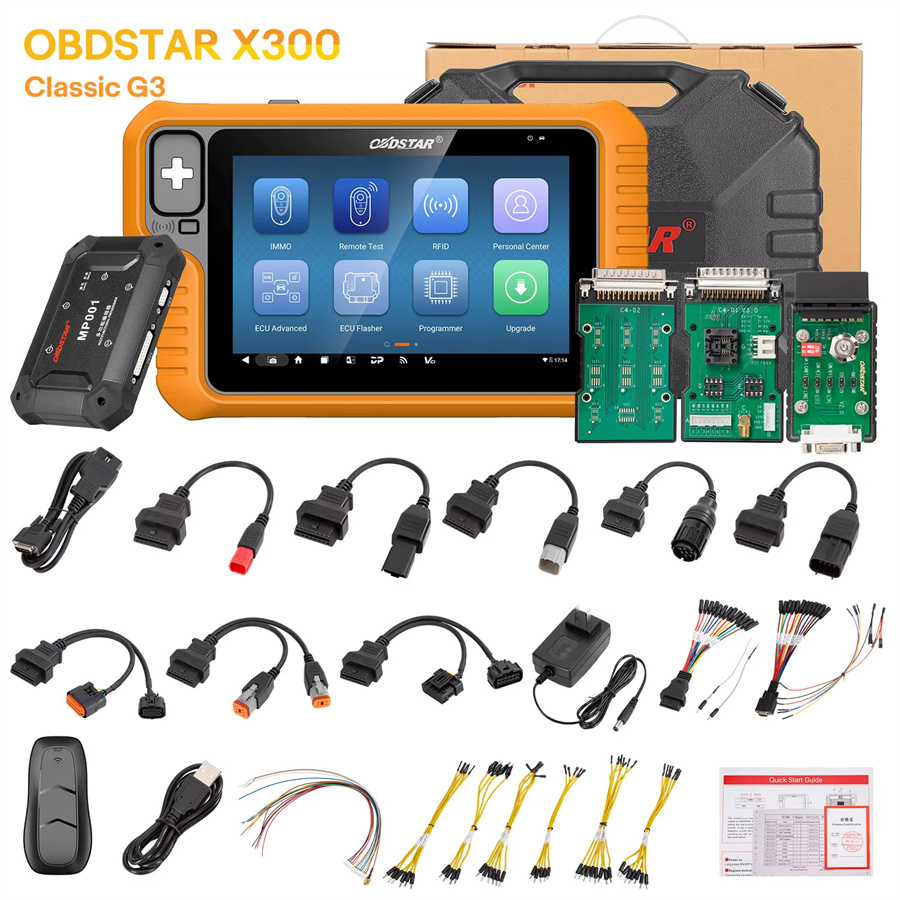

Agosto Offerta Speciale UE Spedizione 2 Anni Aggiornamento OBDSTAR G3 FULL (FULL Versione) OBDSTAR X300 Classic G3 Key Programmer con Full License Airbag Mileage ECU e Test Platform

1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: for Car, HD, E-Car, MOTO, Jet Ski
3 Two Years Free Update Online, Update Version of X300 DP Plus
4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package
6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.
8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.
OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 coverage (vehicle list)



Highlights Added：

               Add BENZ DSM(FBS4) C207/C292/W166/W212/W218/W447 3 part numbers(A0002703252/A0002703352/A0002703452) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data.

               Add BENZ DSM222(FBS4) C217/W205/W222/W907/W910 3 part numbers(A0002704252/A0002704452/A0002704652) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data(Recover).

Key Master G3 Function Module List:

Function Module List

A: IMMO  A1.1: CAR IMMO

                A1.2: HD IMMO

                A1.3: E-CAR IMMO

                A1.4: MOTO IMMO

                A1.5: MARINE IMMO



               A2.1 Remote Test

               A3.1 ECU Advanced

               A4.1 Make Key

               A4.2 R/W Transponder

               A4.3 Unlock Smart Key

               A5.1 EEPROM/MCU

               A5.2 Renew Key



B: ODO METER

                B1.1: Car ODO METER

                B1.2: MOTO ODO METER

                B2.1: Oil/Service Reset



C: ECU Flasher

                C1.1: CAR ECM

                C1.2 :CAR TCM

                C1.3: CAR BODY

                C2.1: MOTO ECM



D: Crash Reset

                D1.1: Battery Reset (MVBM)

                D1.2: Airbag Reset

                D1.3: SAS Reset



E: Test Platform

                E1.1: Dash Board

                E1.2: E-CAR ABS

                E1.3: Gear Lever

                E1.4: E-CAR BSG

                E1.5: E-CAR MHEV

OBDSTAR G3 Full License Menu

Supported Vehicle types

Car, HD, E-Car, MOTO, Marine (jet-ski)

Advanced Functions

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;

3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.

NOTE: Type C connector only used to transfer files, cannot be used to charge battery.


X300 Classic G3 Menu:








OBDSTAR X300 Classic G3 vs X300 DP Plus C pack

Item		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55  2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN  built in√
		x	RS232, RS485  built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm*174mm*35mm	270.5mm*165mm*39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced (Includes ECU unlock)	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO (IMMO OFF, ISN, IMMO DATA)	x	√
	ECU flasher (Clone)	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation

FAQs:

Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?

A: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q: Can I use the accessories of an old product I have previously purchased?

A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users

1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, for TOYOTA-24/27/30 CABLE;3. for NISSAN-40 BCM CABLE, for NISSAN/ RENAULT 16+32 CABLE;
3. FCA 12+8 CABLE;
4. for TOYOTA 8A cable, FORD all key lost cable.

Q: What is ECU Unlock function of X300 Classic G3?
A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

Standard package:

Free gift kits (choose one of two)

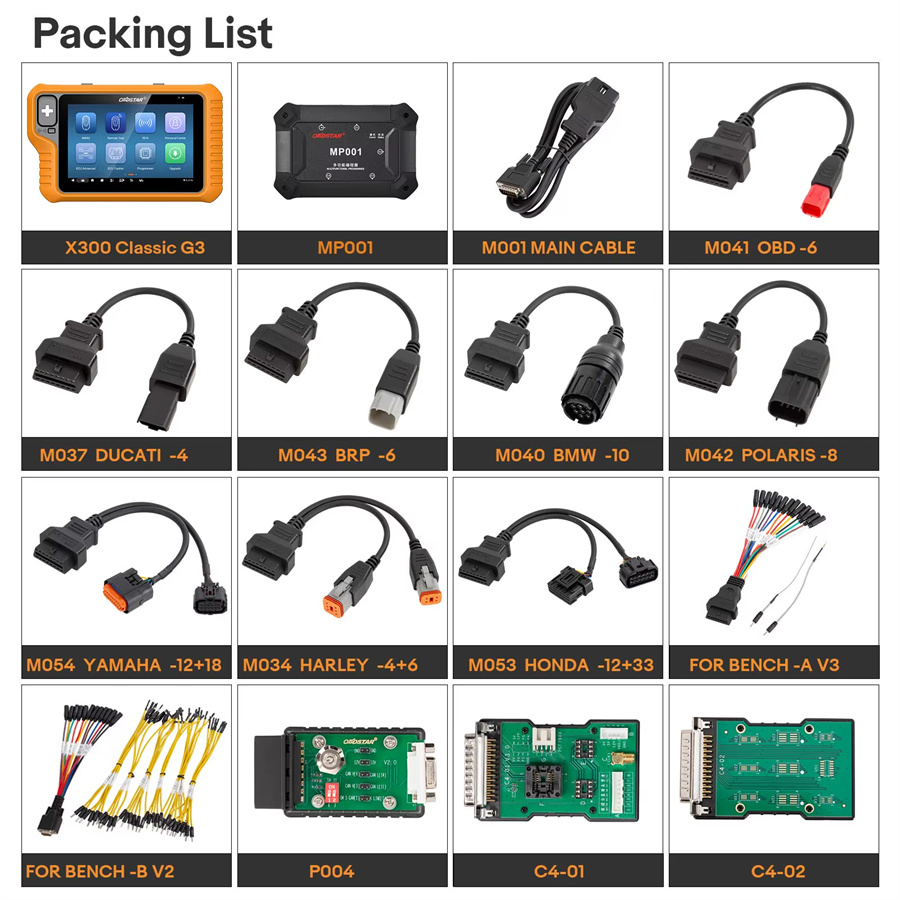

Package Includes:

1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x W006 clock frequency wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA

Note: From June 1, 2026 onwards, the original A2 free gift will no longer be provided for free, but can be purchased separately.

FULL License  Activation:
1pc x Airbag Function License
1 pc x Mileage Function License
1pc x ECU Flash Function License
1pc x Test Platform Function License
