YANHUA ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction

YANHUA ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction

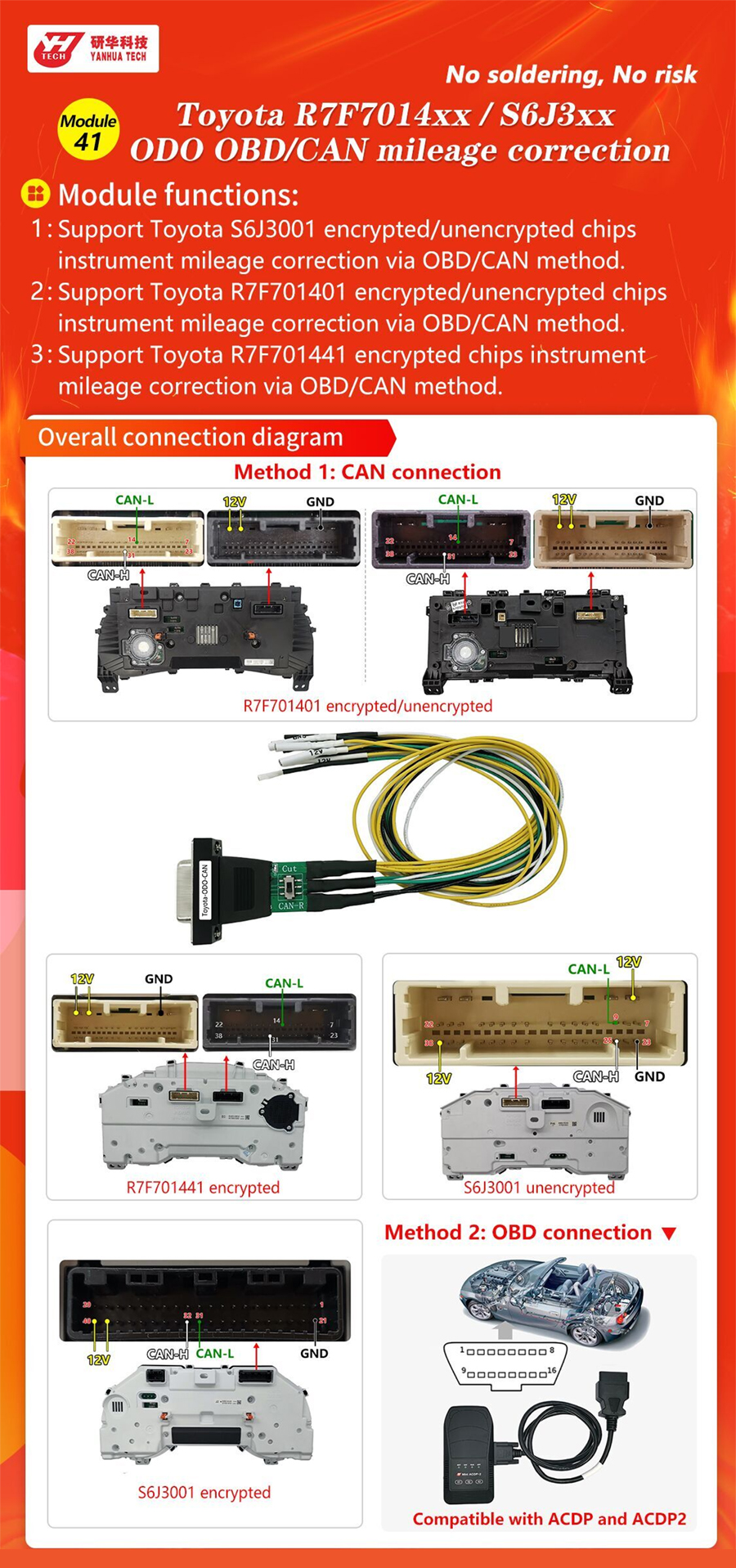

Module Functions:

1: Support Toyota S6J3001 encrypted/unencrypted chips instrument mileage correction via OBD/CAN method.

2: Support Toyota R7F701401 encrypted/unencrypted chips instrument mileage correction via OBD/CAN method.

3: Support Toyota R7F701441 encrypted chips instrument mileage correction via OBD/CAN method.



Supported Vehicle Models(for reference only):



ACDP Module 35 vs Module 41
Module 35 read by interface board through disassembling the cluster, while Module 41 read via OBD or CAN wiring, but this method does not work 100% of the time. If it fails, the instrument disassembly method with Module 35 is required.

Module 41 way of OBD is compatible with more devices, and the two modules are functionally complementary. If you already own Module 35, you are eligible for a discount when purchasing Module 41. Additionally, a combined discount is available if you buy both modules together.

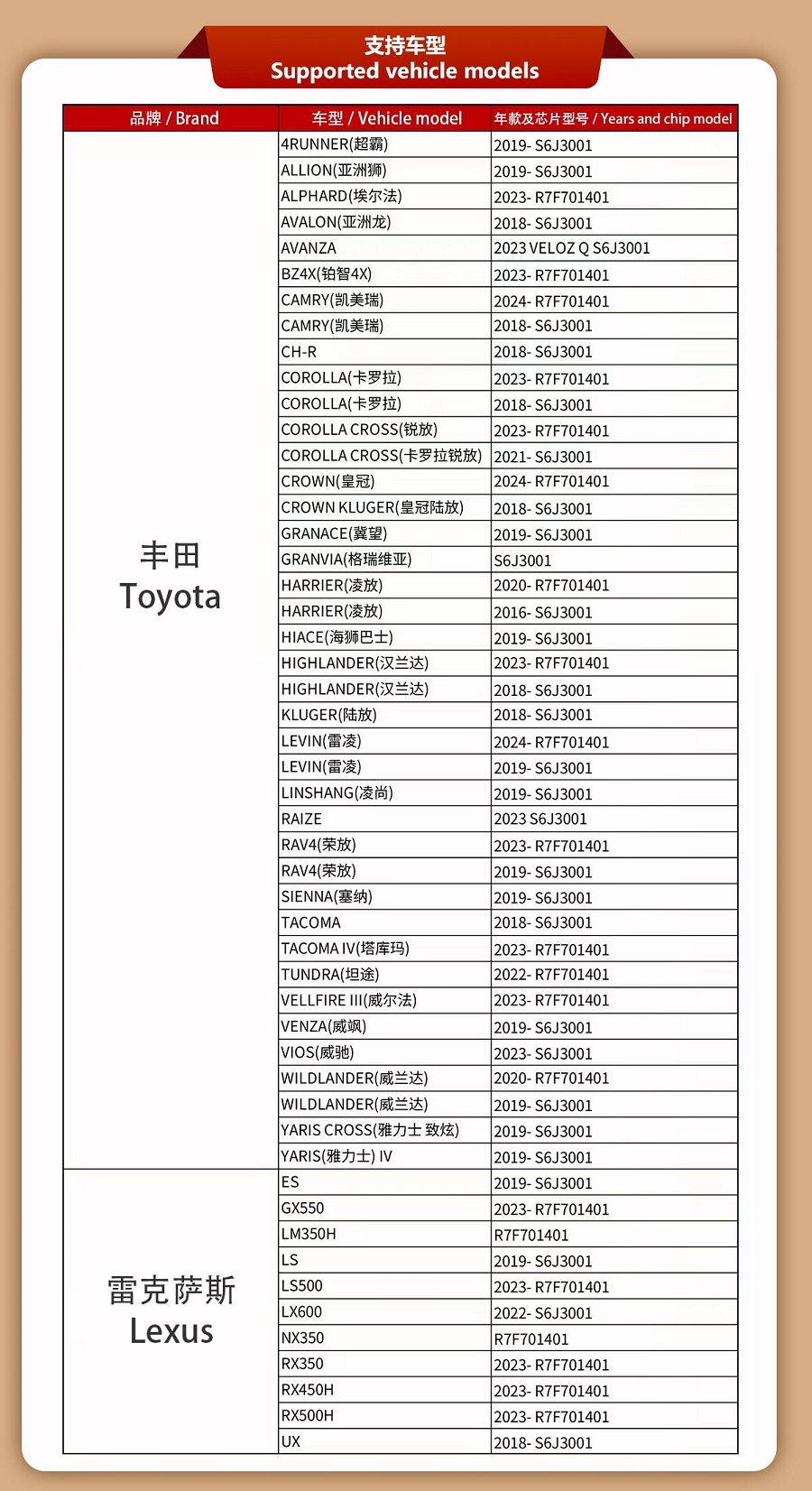

Yanhua ACDP Toyota R7F7014xx and S7J3001 Car List
If R7F7014xx cluster cannot be done via OBD/CAN mode, you may need module 35 (need to disassemble cluster to change km).

Brand	Model	Type
Toyota	4RUNNER	2019 - S6J3001 DENSO
	ALLION	2019 - S6J3001 DENSO
	ALPHARD	2023 - R7F701401 DENSO
	AVALON	2018 - S6J3001 DENSO
	AVANZA	2023 VELQ O S6J3001 DENSO
	BZ4X	2023 - R7F701401 DENSO
	CAMRY	2024 - R7F701401 DENSO(80)
	CAMRY	2018 - S6J3001 DENSO
	CH - R	2018 - S6J3001 DENSO
	COROLLA	2023 - R7F701401 DENSO
	COROLLA	2018 - S6J3001 DENSO
	COROLLA CROSS	2023 - R7F701401 DENSO
	COROLLA CROSS	2021 - S6J3001 DENSO
	CROWN	2024 - R7F701401 DENSO
	CROWN KLUGER	2018 - S6J3001 DENSO
	GRANACE	2019 - S6J3001 DENSO
	GRANVIA	S6J3001 DENSO
	HARRIER	2020 - R7F701401 DENSO
	HARRIER	2016 - S6J3001 DENSO
	HIACE	2019 - S6J3001 DENSO
	HIGHLANDER	2023 - R7F701401 DENSO(70)
	HIGHLANDER	2018 - S6J3001 DENSO
	KLUGER	2018 - S6J3001 DENSO
	LEVIN	2024 - R7F701401 DENSO
	LEVIN	2019 - S6J3001 DENSO
	LINSHANG	2019 - S6J3001 DENSO
	RAIZE	2023 S6J3001 DENSO
	RAV4	2023 - R7F701401 DENSO
	RAV4	2019 - S6J3001 DENSO
	SIENNA	2019 - S6J3001 DENSO
	TACOMA	2018 - S6J3001 DENSO
	TACOMA IV	2023 - R7F701401 DENSO
	TUNDRA	2022 - R7F701401 DENSO
	VELLFIRE III	2023 - R7F701401 DENSO
	VENZA	2019 - S6J3001 DENSO
	VIOS	2023 - S6J3001 DENSO
	WILDLANDER	2020 - R7F701401 DENSO
	WILDLANDER	2019 - S6J3001 DENSO
	YARIS CROSS	2019 - S6J3001 DENSO
	YARIS IV	2019 - S6J3001 DENSO
Lexus	ES	2019 - S6J3001 DENSO
	GX550	2023 - R7F701401 DENSO
	LM350H	R7F701401 DENSO
	LS	2019 - S6J3001 DENSO
	LS500	2023 - R7F701401 DENSO
	LX600	2022 - S6J3001 DENSO
	NX350	R7F701401 DENSO
	RX350	2023 - R7F701401 DENSO
	RX450H	2023 - R7F701401 DENSO
	RX500H	2023 - R7F701401 DENSO
	UX	2018 - S6J3001 DENSO





1pc x YANHUA ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction
