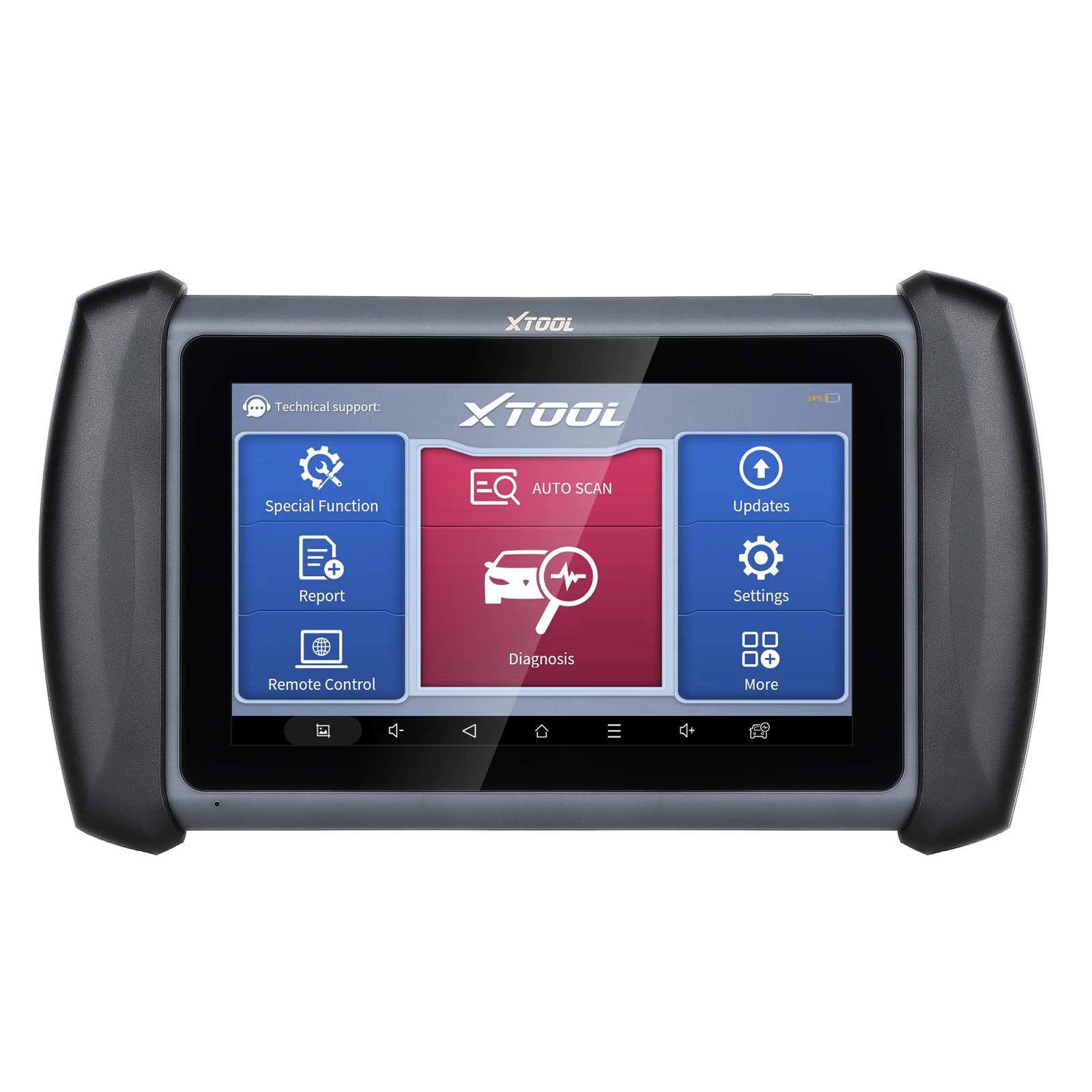

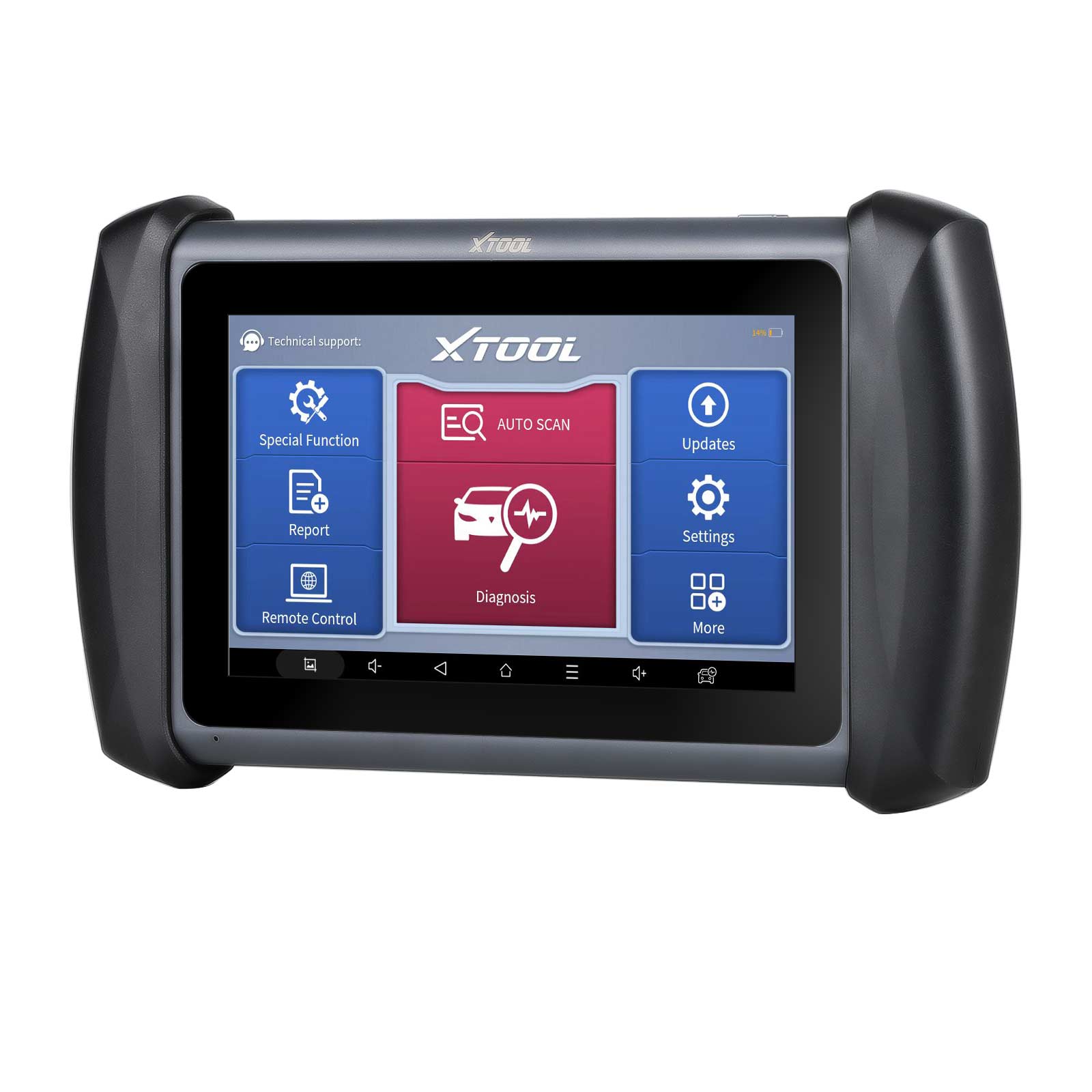

Aprile Speciale 2024 nuovo 3 Anni Aggiornamento [3 Ann Aggiornamento Gratis]2024 Nuovo XTOOL InPlus IP819 Automotive Diagnostic Scanner ECU Coding Active Test OBD2 Full Systems Diagnoses

Descrizione del prodotto

XTOOL Inplus IP819 Full System Diagnostic Tool For Car Service 31+ Reset Functions

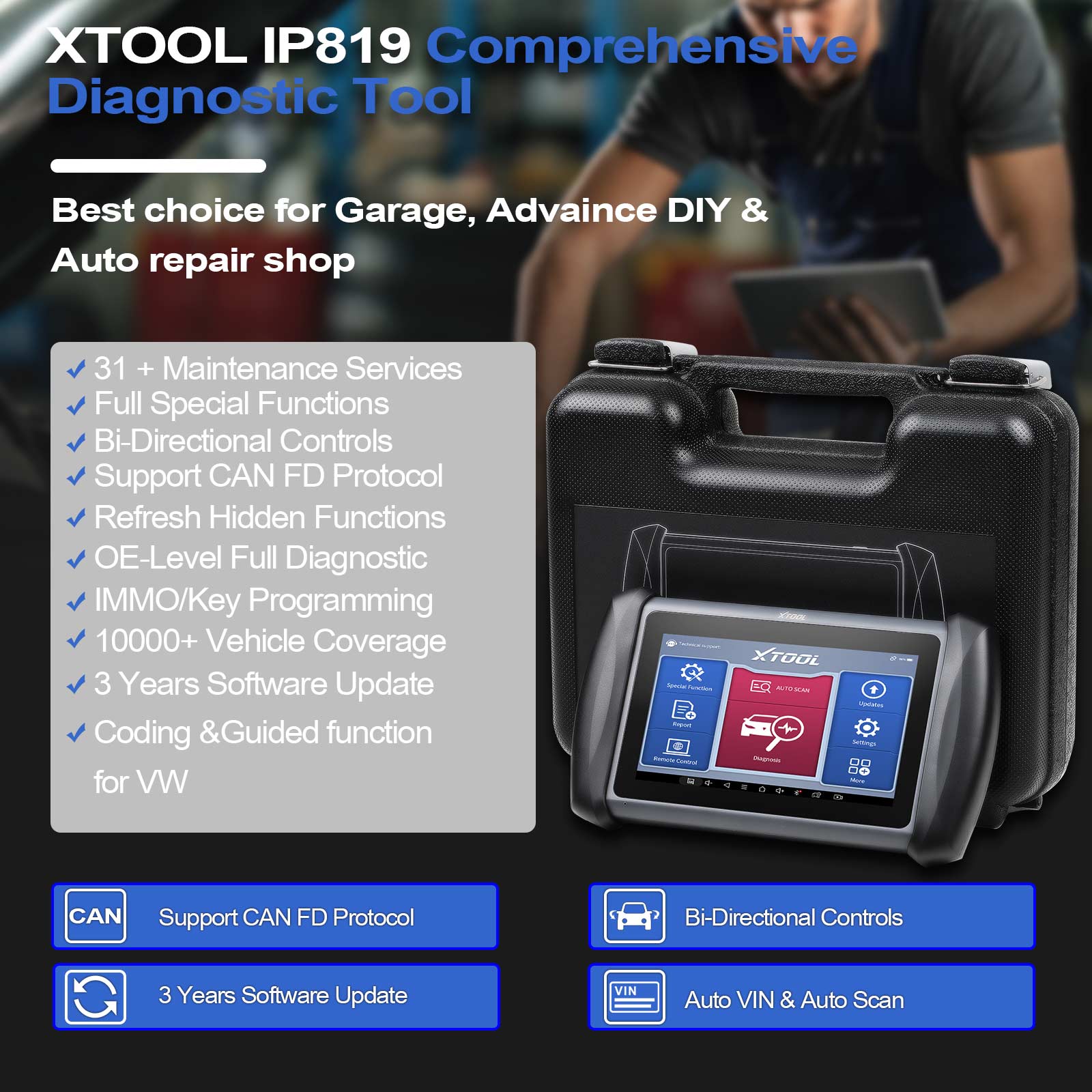

10 motivi principali per acquistare Xtool IP819

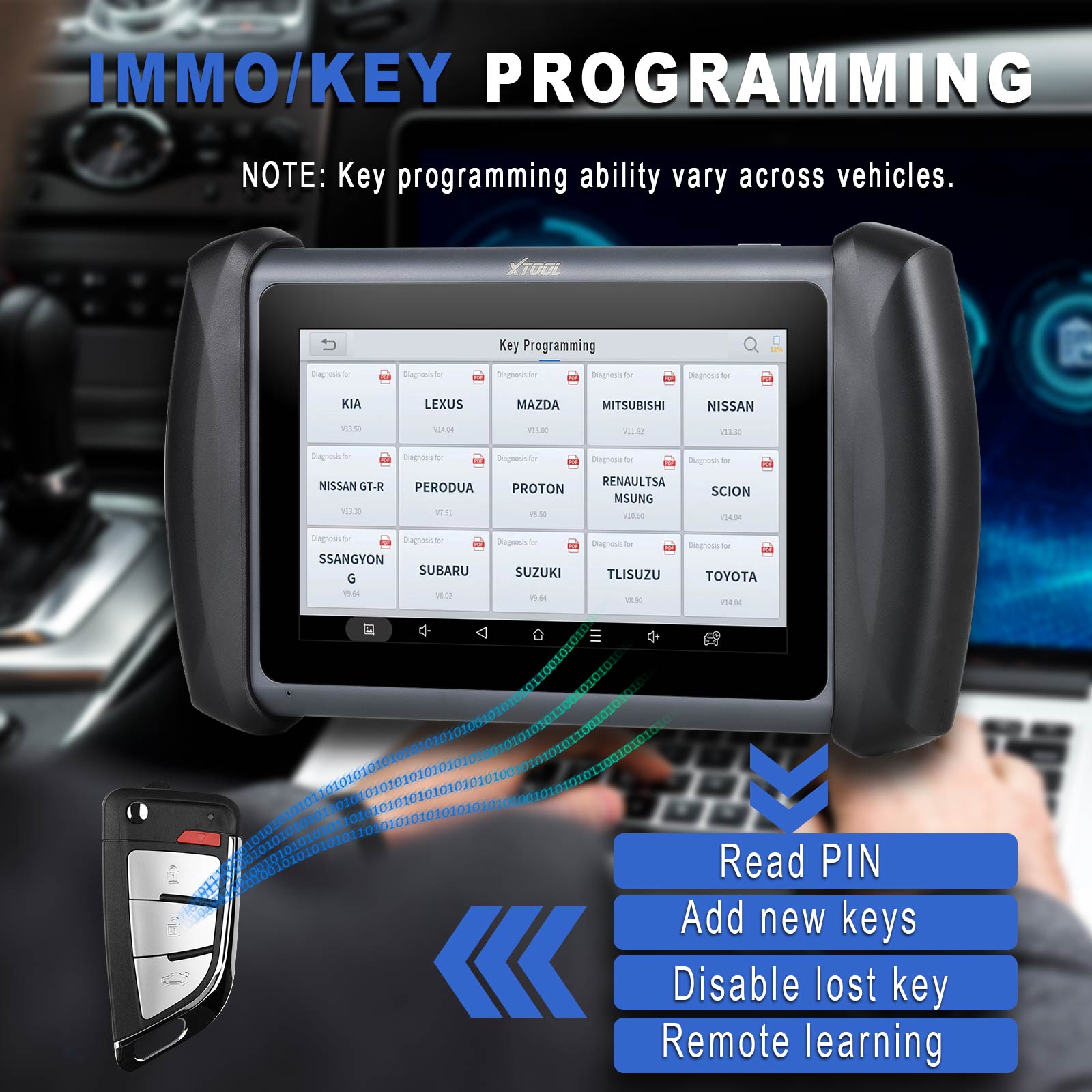

1. OE-Level Full System Diagnoses and Key Fob Programming
2. Professional 38+ Reset Service: 25 Service Options under “Common Services”, plus additional resets & relearns under “Diagnosis” menu, to meet routine auto maintenance services tasks
3. Active Test (Bi-directional Control)
4. Auto Vin & Auto Scan
5. ECU Coding: To Improve vehicle performance,Make a new code,Recognize the new actuators,Car systems to recognize each other and Recognize the new actuators
6. Support CAN FD Protocol
7. 8 in 1 Live Data/Freeze Frame
8. 3 Years Free Update,After 3 years 161EUR/ 1 year.
9. Support 15 Languages: English, Spanish, German, French, Italiano, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.
10. check the supported car list here

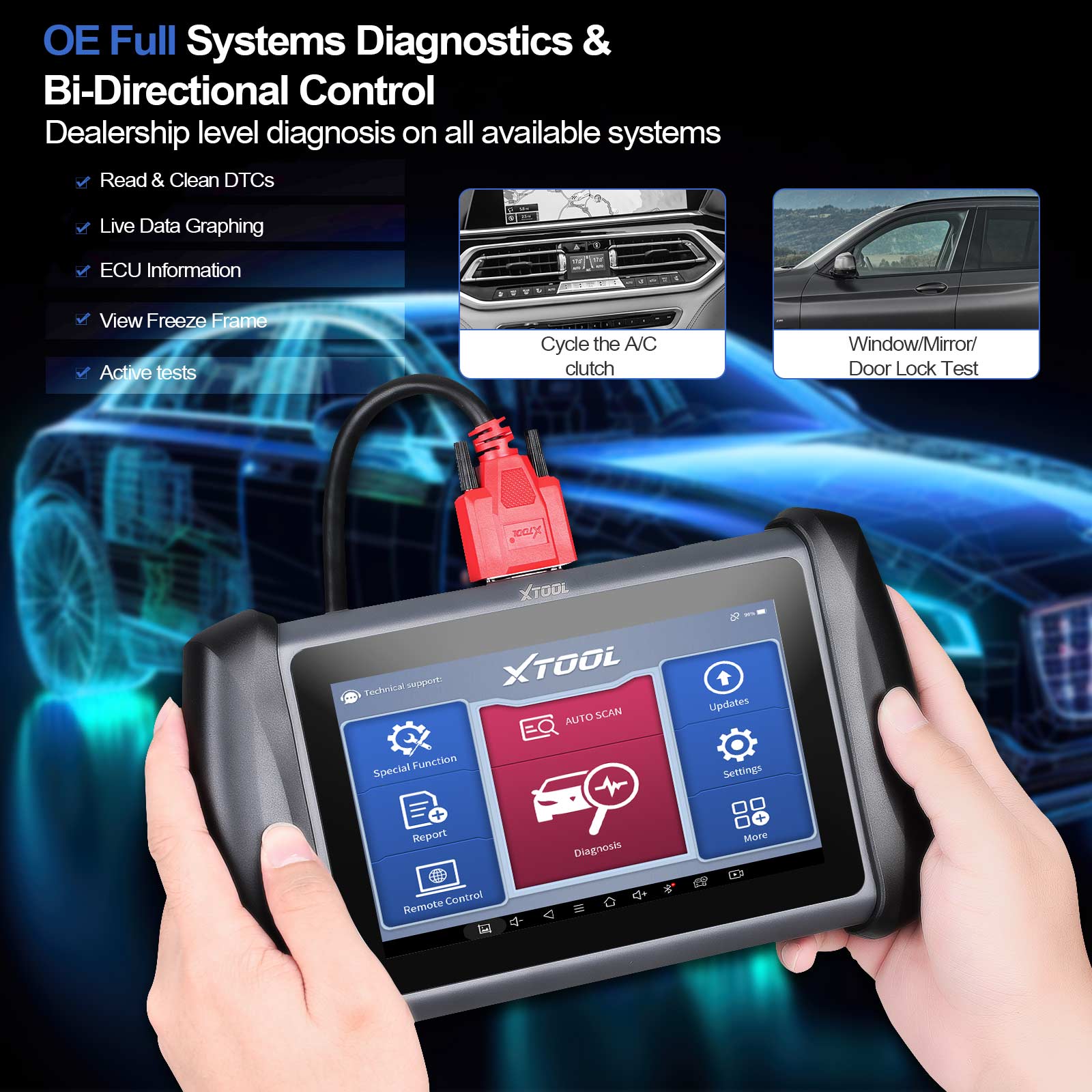

Full System Diagnosis

Newest car diagnostic tool XTOOL Inplus IP819 provides diagnostic access to all available modules in the car for code, data flow and graphics, freeze frames and ECU information. Can be used in modules such as engine, transmission, ABS, airbag, brake system, chassis, HVAC, etc.

Full OBDII Functions

► Read Trouble Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

► Clear Trouble Codes: Turns off Check Engine Light (MIL), clears codes and resets monitors

► Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

► Read Freeze Frame: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

► Read ECU Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

► Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

► On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

► O2 Sensor Monitoring Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

► I/M Readiness: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing


38+ Service Functions

Oil Reset: Reset the Engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle's driving conditions and climate. The oil life reminder must be reset each time the oil is changed so that the system can calculate when the next oil change is required.

EPB: Reset the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration.

Throttle Relearn: Enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state. It can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

ABS Bleeding: After the gear learning is successful, the MIL will be closed. This function can complete the self-learning of the gearbox and improve the quality of shifting.

BMS Reset: The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

Headlight: Refers to the adaptive front lighting system (when using bi-xenon headlights at night), it can be rotated to both sides, pressing the button means that they stay in direct light, and will not turn when you turn the steering wheel

Air Suspension: The air suspension system reset function enables the computer ECU to match the current air suspension system information, thereby ensuring the normal damping effect of the vehicle when driving.

Gear Learning: After the gear learning is successful, the MIL will be closed. This function can complete the self-learning of the gearbox and improve the quality of shifting.

Cylinder: This function is suitable for power balance after replacing and repairing the cylinder.

EGR: After the EGR valve is damaged, the engine fault light will be turned on. After the EGR valve is replaced, the EGR valve needs to be matched and learned with a diagnostic instrument to ensure the normal operation of the exhaust gas recirculation system.

VGT: Use the VGT Relearn function of IP616 to reset and learn the turbo system after replacing the turbocharger or the solenoid valve sensor in the turbo system.

A/C Relearn: It is used to reset and self-learn the operation data of the compressor, reset and self-learn the position of the servo motor, and use it to detect and verify the faulty part of the air-conditioning system.

HV Battery: When a new energy vehicle fails to be repaired, it is necessary to ensure that the high-voltage battery has no power output. This function can disconnect the power output of the high-voltage battery to the vehicle, so that the maintenance worker can safely perform maintenance and inspection on the vehicle.

Also including:IMMO/Key Programmer, EEPROM Adapter, Injector Coding, SAS, Gearbox Match, SRS, DPF Regeneration, TPMS Reset, Windows Initialization, Seat Match, Electronic Pump Activation, Disable Transport Mode, ECU configuration, Stop/Start Reset, Language Change, A/F Reset, Airbag Reset, Tire Upgrade, EPS, ECU Configuration,EGR Relearn,VGT Relearn,A/C Relearn,HV Battery,SAS,etc.

One Click Read Car Information

Read ECU Information

This function can be used to help you read the version information of the vehicle module. Read model information, software version, hardware version, mainly used when upgrading ECU software version. It can be used to check the production date and part number when replacing the ECU.

Auto VIN Scan

One click auto VIN scan helps you choose the car and enter the car system to diagnose quickly.

Advanced ECU Coding

Inplus IP819 come with powerful ECU coding function. This function could help you flash hidden function, turn off the annoying functions and reprogram the adaptive data after the component have been replaced or repaired.

* Recode changed modules & Component Match

* Customize car settings (like changing the chime style, daytime running lights)

* Disable annoying features (seatbelt alarm, beep when locking or unlocking and so)

* Re-Flash hidden functions (Mirror automatically fold & unfold)

Guided Function

The guidance function can provide relevant data and give you a maintenance idea. You can find the fault by following the on-screen instructions step-by-step. This function is dedicated to VAG vehicles.

Note: ECU coding and guided function and only work for VW / for Audi / for Skoda.


8 in 1 Live Data Graph

When using the function of reading data stream, Inplus IP819 supports selecting 8 pieces of data at the same time to form a data flow chart, which is convenient for you to understand the status of each module more intuitively.

Diagnostic Report

XTOOL Inplus IP819 can generate a diagnostic report after you diagnose or repair the vehicle. You can print out the diagnostic report by connecting to a printer via Bluetooth.

Support 80+ Car Brands

Inplus IP819 support more than 80 car brands to do diagnostic functions.

It can work for For ABARTH, For ACURA, For ROMEO, For ASTONMARTIN, For AUDI, For BMW, For MINI, For PROTON, For PORSCHE, For PERODUA, For BENZ, For SMART, For TRANSPORTER, For HONDA, For PEUGEOT, For DACIA, For DAIHATSU, For DAEWOO, For VW, For CVVW, For RENAULT, For RENAULTSAM, For HYUNDAI, For HYUNDAICV, For OPEL, For INFINITI, For LANDROVER, For FIAT, For BENTLEY, For LINCOLN, For BUICK, For SEAT, For DODGE, For BUGATTI, For NISSAN, For TOYOTA, For HUMMER, For HOLDEN, For JEEP, For JAGUAR, For CADILLAC, For CHRYSLER, For LAMBORGHINI, For LANCIA, For ROLLS, For LEXUS, For SUZUKI, For MAZDA For MASERATI, For MAYBACH, For AUSFORD, For EURFORD, For USAFORD, For KIA, For PONTIAC, For SAAB, For SCION, For MIT, For SSANGYONG, For SUBARU, For SKODA, For TLISUZU, For GM, For SATURN, For VOLVO, For VAUXHALL, For ISUZU, For CHEVROLET, For CITROEN, For FERRARI, For UAZ, For GAZ, For CHANGCHENG, For YQAUDI, For YQVW, For SHVW, For SQDTZY, For SQMG, For RONGWEI, For QIRUI, For JETOUR, For JIAO, For JILI, For HUACHEN, For JAC, For GMC, For BYD, For LIFAN.

Note: For the compatibility of each function is different, pls send us your car VIN to check the compatibility before place an order.

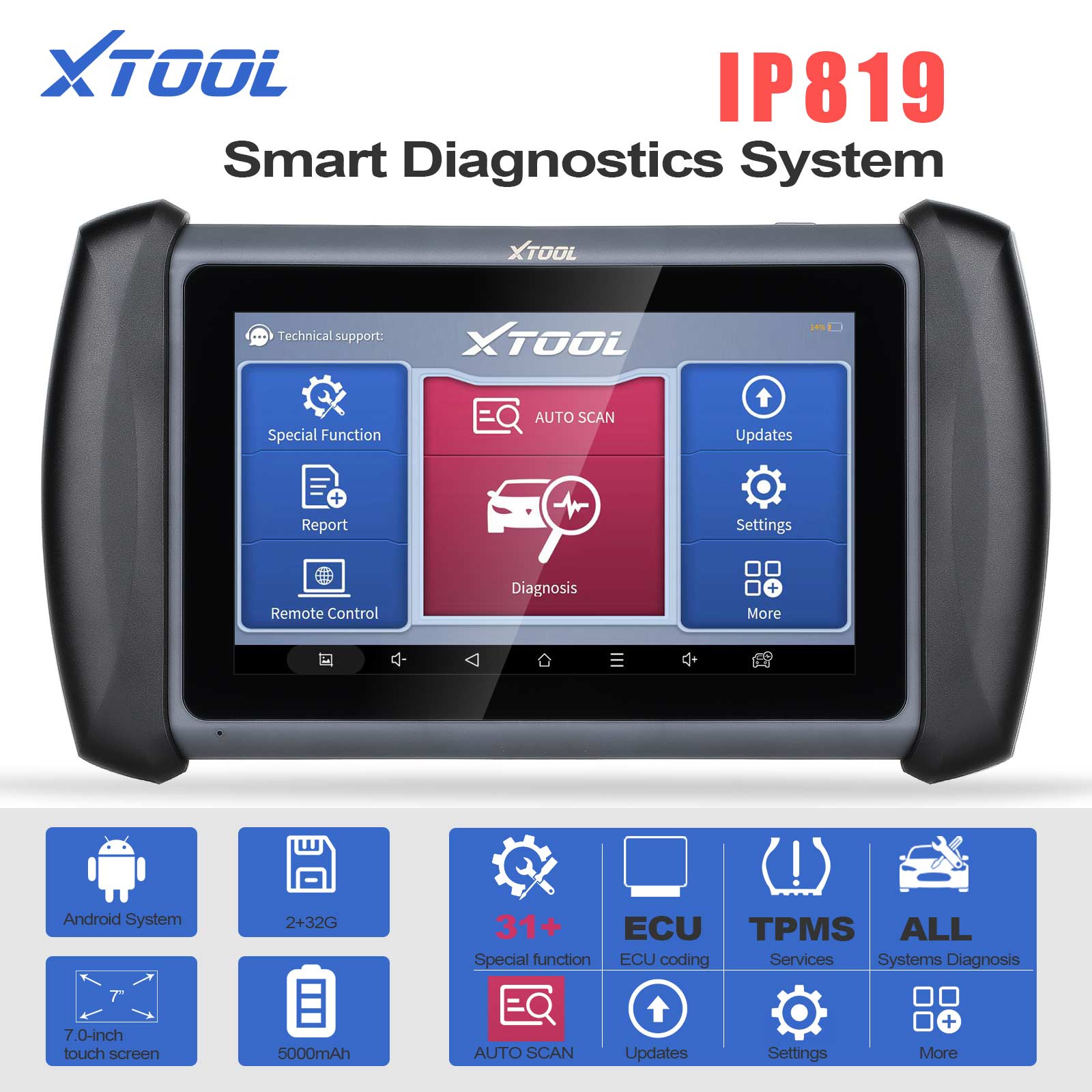

XTOOL InPlus IP819 Parameters:

Operating System：Android 10
Memory：2G(RAM) + 32G(ROM)
Display：7.0-inch touch screen with 1024×600 resolution
Connectivity：USB/Wi-Fi/Wired
Sensors：Gravity sensor, light sensor
Audio Input/Output：Microphone/Speaker
Power and Battery：5000 mAh, 3.65 V lithium-polymer battery
Power Voltage：5V
Power Consumption：8W
Operating Temperature：-20 to 60℃(-4 to 140℉)
Storage Temperature：-40 to 70℃(-40 to 158℉)
Humidity：<90%
Dimension (L*W*H)：249*142*33.5mm

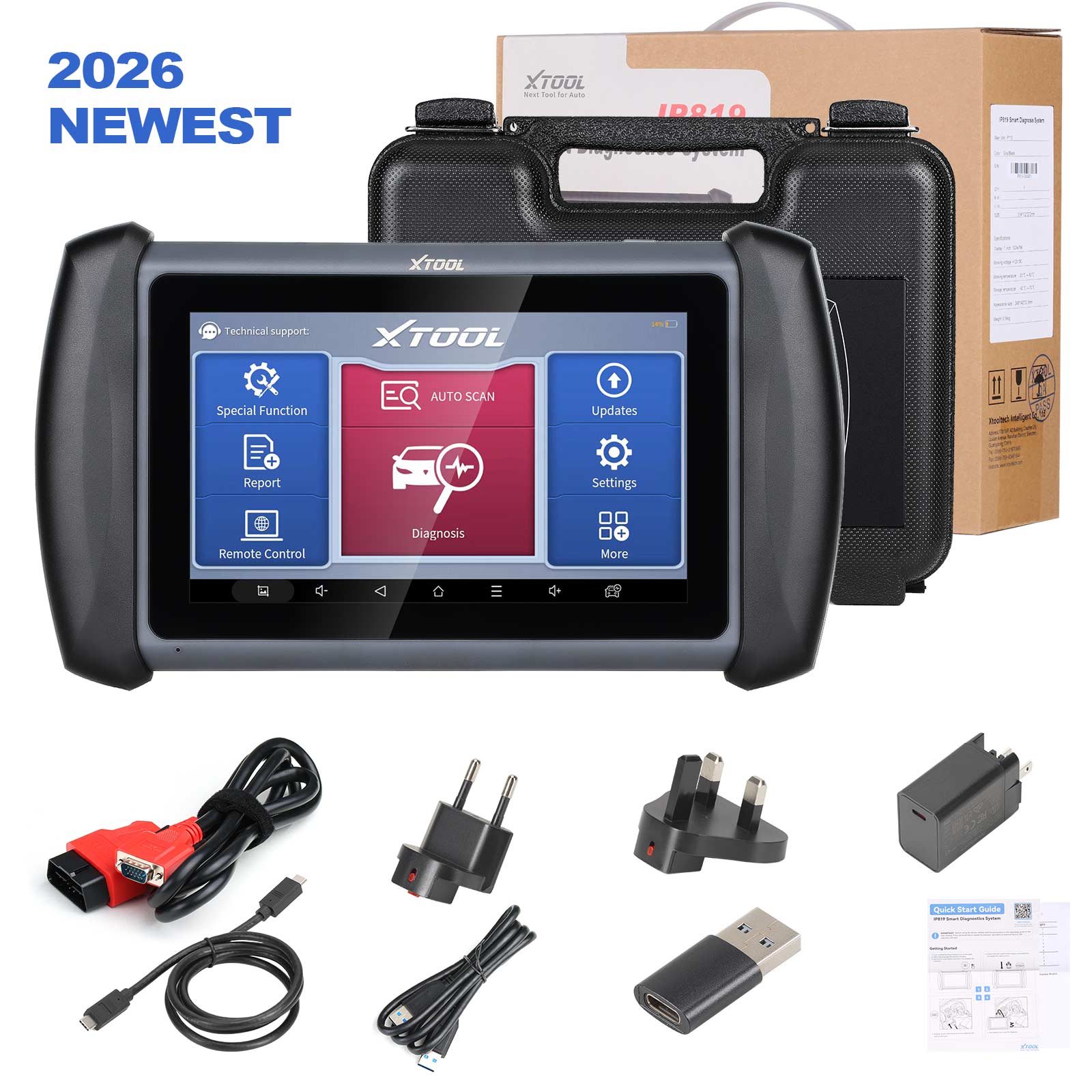

XTOOL InPlus IP819 Package list:

Accessories
Color Carton
Packing List
Certificate of Quality

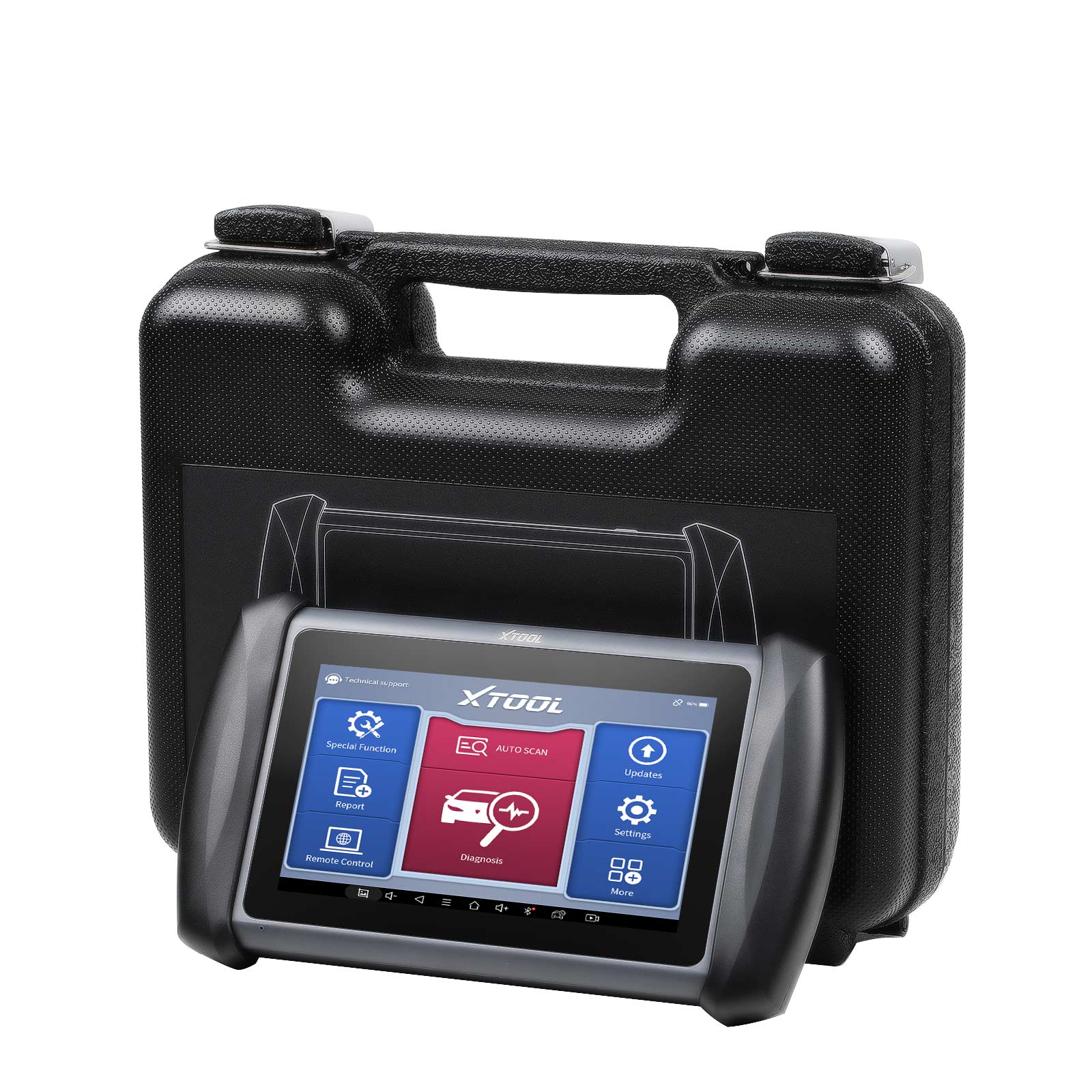

Tool Case
User Manual
Main Units
P710 Tablet
Charger for Tablet
Charger US Adapter
Charger EU Adapter
Charger EN Adapter
Test Connectors
VGA to OBD II Main Cable
USB Cable



---
