Descrizione del prodotto

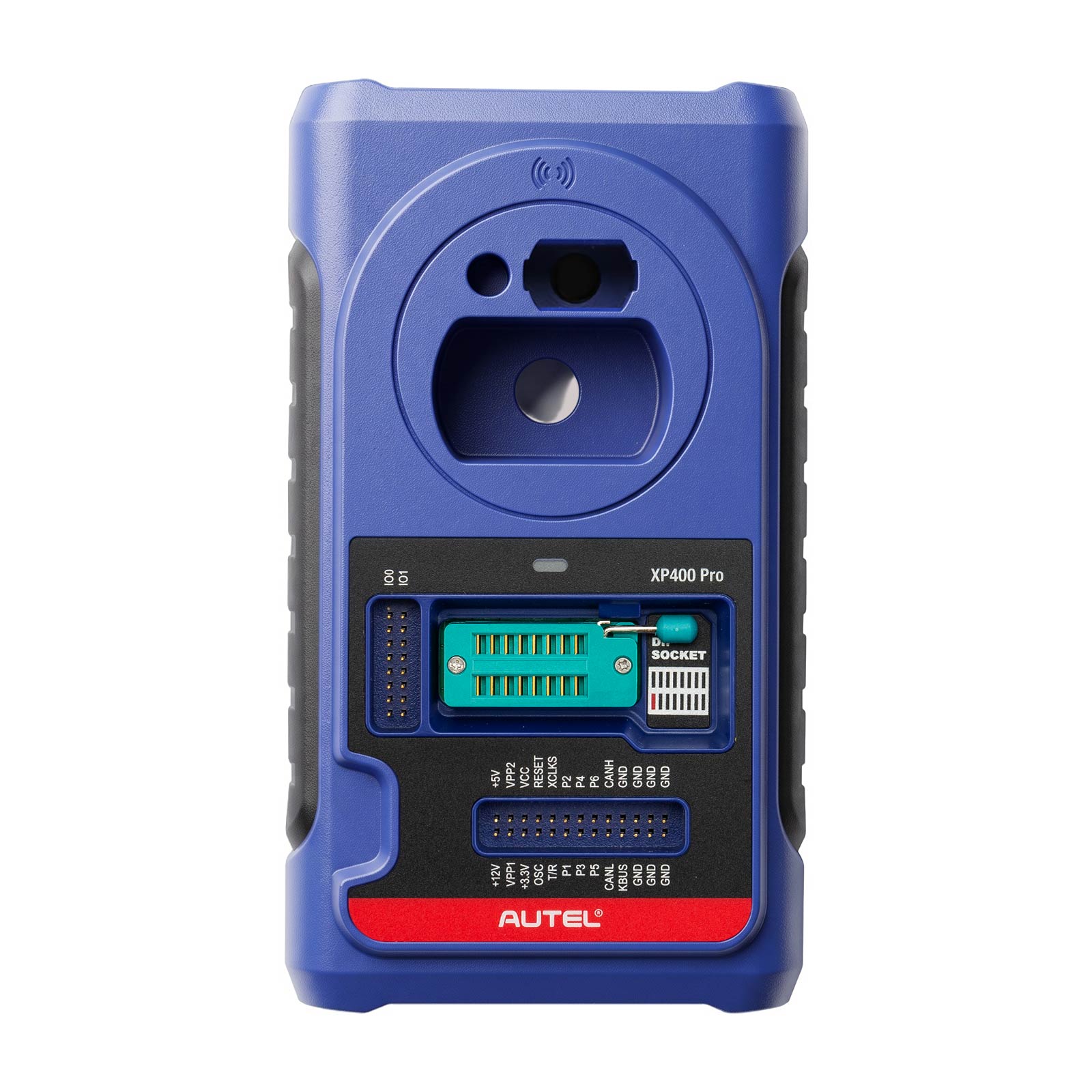

AUTEL XP400 PRO Adapter Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
AUTEL XP400 Pro Adapter Key and Chip Programmer Work with Autel MaxiIM IM608/IM508

Function:
Support PC

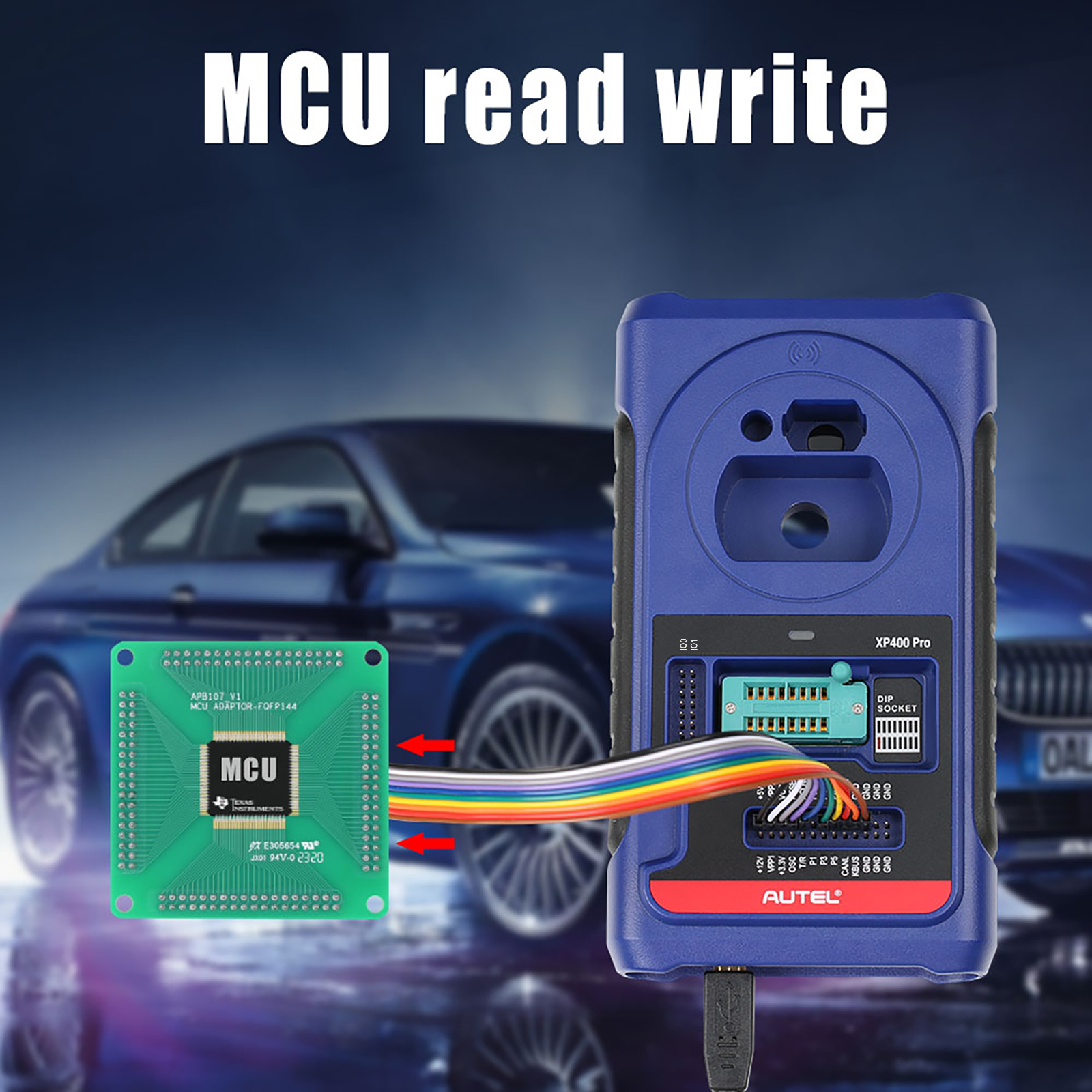

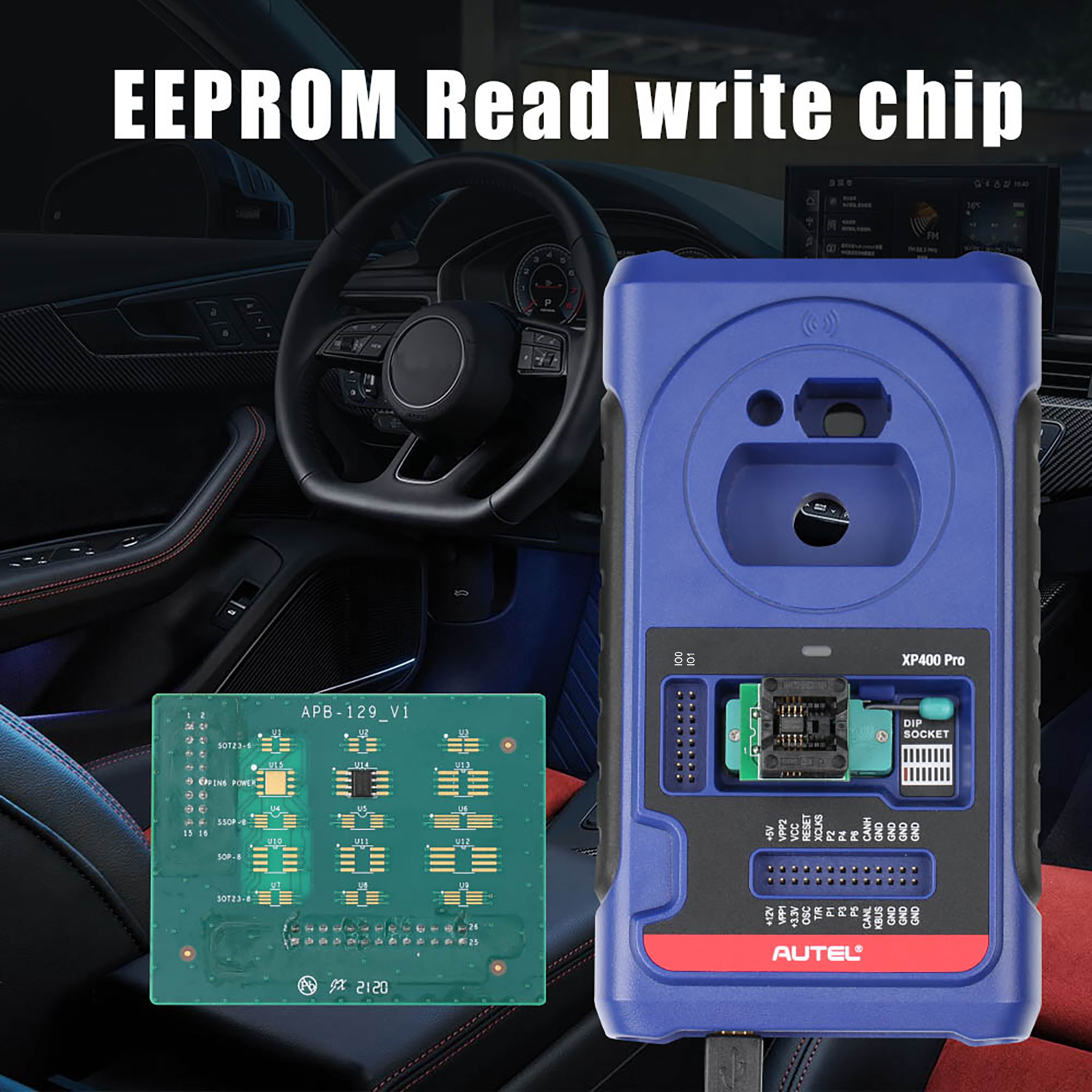

MCU / EEPROM chips read / write

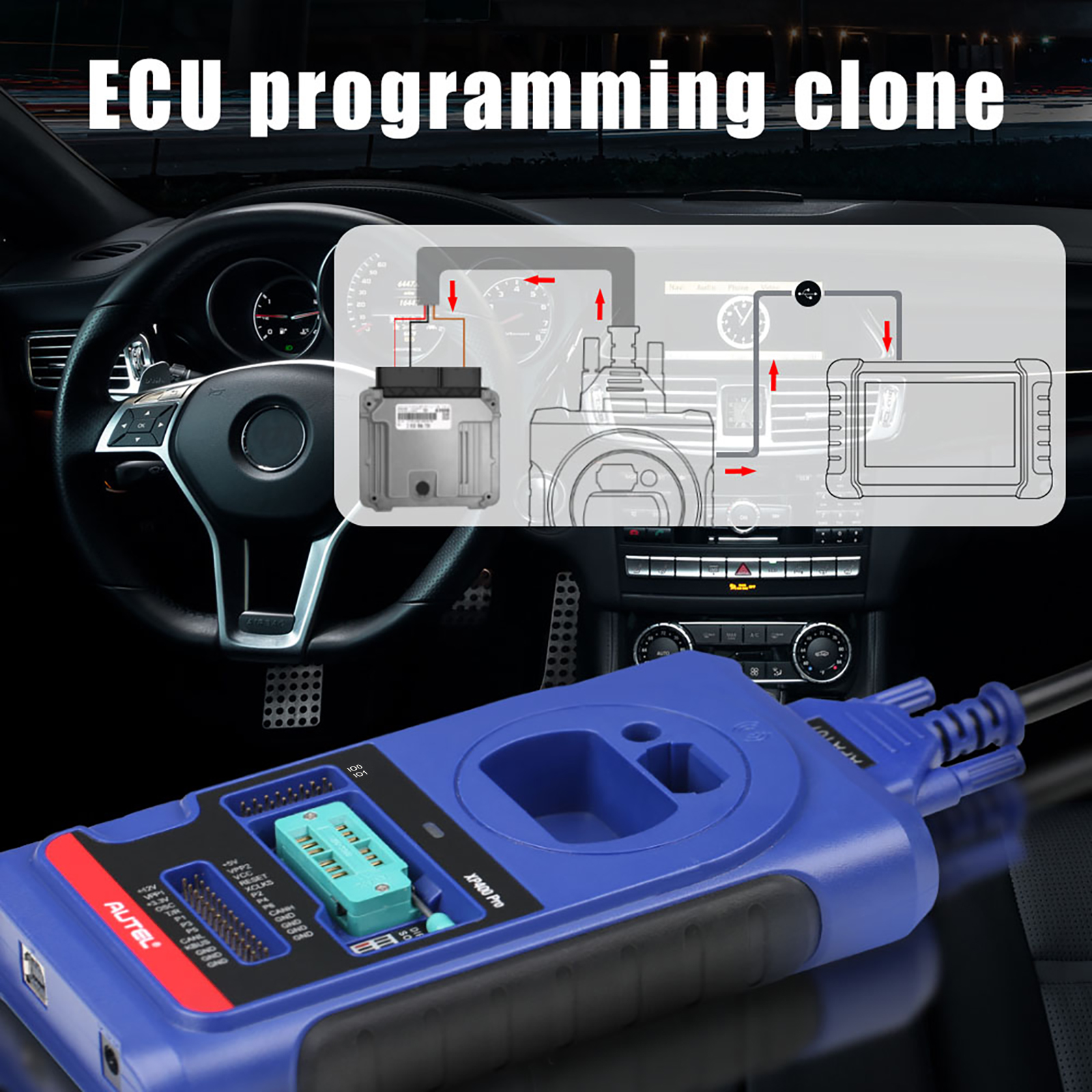

ECU Read / Write
MC9S12 Encryption chips read / write
Key Read / Write

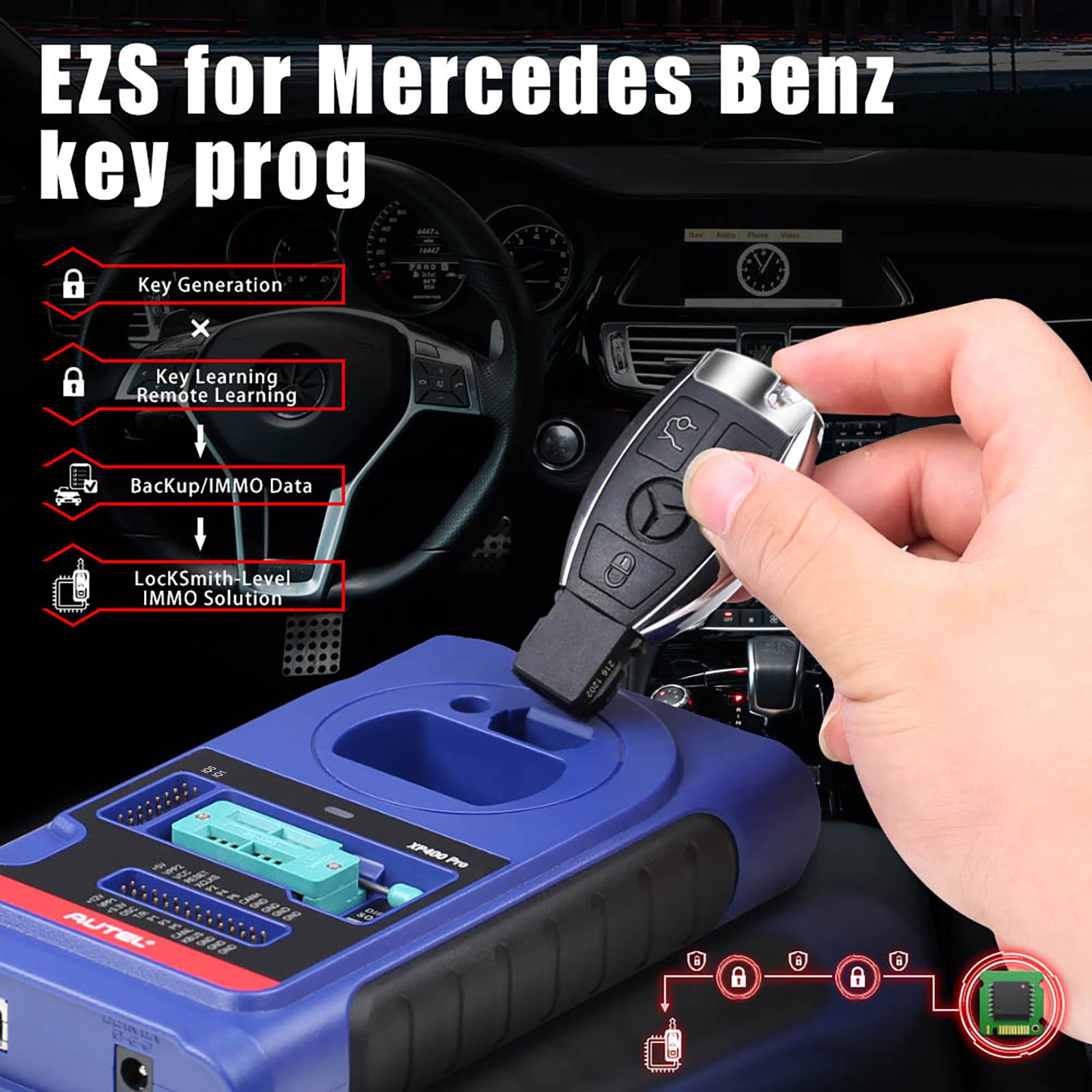

Mercedes Infrared key chips read / write
Remote frequency detect
IC Card read/Write

Connect the IM608 tablet to the XP400 key programmer (no vehicle connection required) to access the key chip,
read, retrieve and write key information, as well as other key related functions.

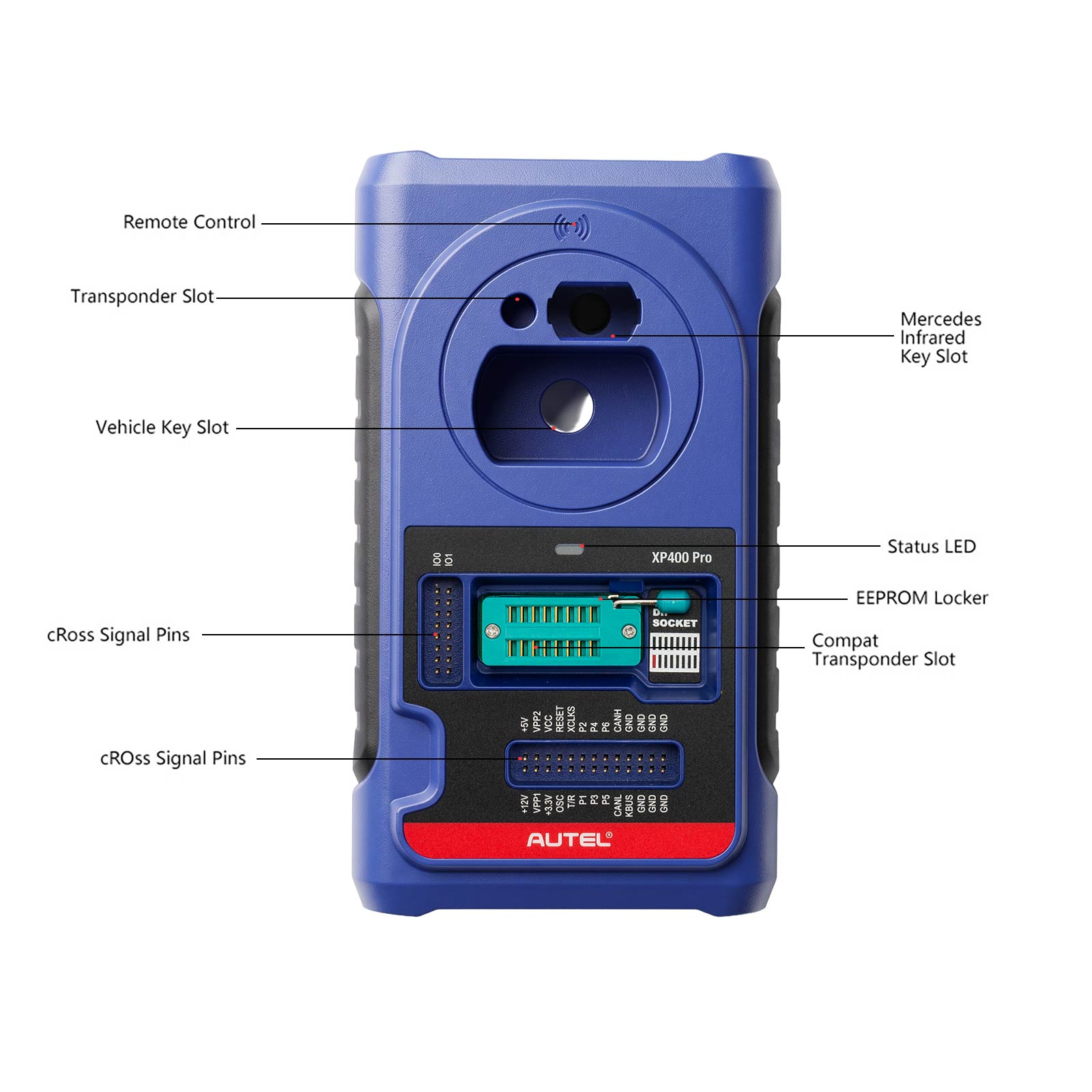

 The XP400 includes 12 ports:
1. DC Port – provides 12V DC power supply.
2. USB Port – provides data communication and 5V DC power supply.
3. DB 26-Pin Port – connects with the mercedes benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.

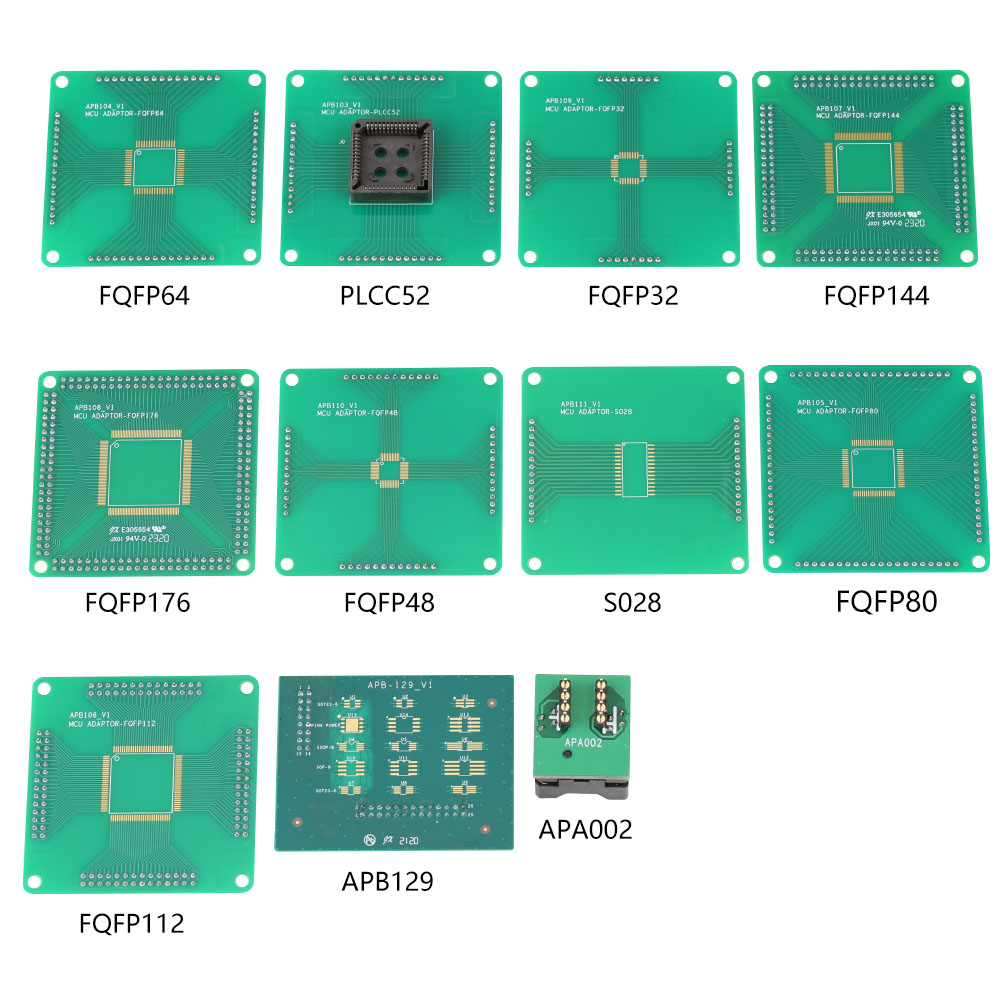

4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction area
6. Vehicle Key Slot – holds the vehicle key.
7. Transponder Slot – holds the transponder.
8. Remote control transponder induction area figure 2-5 XP400 views 11
9. Mercedes Infrared key slot – holds the mercedes infrared key.
10. Status LED – indicates the current operating status.
11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM component transponder slot – holds the EEPROM plug-in transponder or EEPROM socket.
DC Port :  Provides 12 V power supply for the XP400.
USB Port: Provides data communication and power supply for handheld device, PC and XP400.

DB 26-Pin Port:
Five components can be connected to this port:
Mercedes Infrared Cable
APA102 – Remote Match Cable (optional)
APA104 – ECU Cable
APA105– MCU Cable
APA106 – MC9S12 Cable

APA102 – Remote Match Cable (optional)
No.
Color
Definition
Pin correspond to DB26
 Note
1
Red
VCC5V
16

2
Black
GND
3/10/25

 3
Blue and White
REMOTE_MISO
14

4
Gray and White
REMOTE_MOSI
 5

5
Brown and White
REMOTE_CLK
 23

 6
Green and White
REMOTE_RX_C S
15


APA104 – ECU Cable
 No.
 Color
Definition
Pin correspond to DB26
 Note
1
Red
VCC12V
7

2
Black
GND
25

3
Green
IGN
/

4
Orange
CANL
8

5
Blue
CANH
17

6
Brown
BOOTM
/

7
Yellow
K
18

8
White
LIN
26


APA105 – MCU Cable
No.
Color
 Definition
Pin correspond to DB26
 Note
1
Red and White
VPP1
20

2
Red and Black
VPP2
12

3
Red and Yellow
+12V
7

4
Red and Blue
VPPR
/

5
Black
GND
25

6
White
S1
14

7
Brown
S2
5

8
Gray
S3
23

9
Blue
S4
11

10
Red
S5
21

11
Orange
S6
13

12
Purple
S7
4

13
Yellow
S8
19

14
Green
S9
2

15
Black
GND
10
Shielded Twisted
16
White
OSC
1
Shielded Twisted

APA106 – MC9S12 Cable
 No.
 Color
 Definition
Pin correspond to DB26
 Note
1
Red
+5V
16

2
Black
GND
25

3
Green
XCLKS
2

4
Blue
T/R
11

5
Yellow
RESET
19

6
Black
GND
10
Shielded Twisted
7
White
OSC
1
Shielded Twisted

Cross-shaped Signal Pin: Places MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.
IC Card Induction Area: Reads and writes IC card information.
Vehicle Key Slot: Holds the vehicle key to read or write vehicle key information.
Transponder Slot: Holds the transponder to read or write transponder information.
Remote Control Transponder Induction Area: Reads and writes remote control transponder information.
Mercedes Infrared Key Slot: Holds Mercedes infrared key to read or write Mercedes vehicle key information.
Status LED: Shows the current operating status of the XP400. See the table below for detailed description.
Indicator
Status
Description



On
Light Green
Powered on and default
Flash Green
Communication
Light Red
Error

Locker : Places EEPROM chip or socket to read or write EEPROM information.
EEPROM Component Transponder Slot : Holds the EEPROM plug-in transponder or EEPROM socket.

Parameter:
Item
Description
Operating Temperature
-10℃ ~ 60℃ (14℉ ~ 140℉)
Storage Temperature
-20℃ ~ 60℃ (-4℉ ~ 140℉)
Port
Mini USB, VGA_DB15
Input Voltage
5 VDC
Operating Current
< 250 mA
Maximum Consumption
1 W

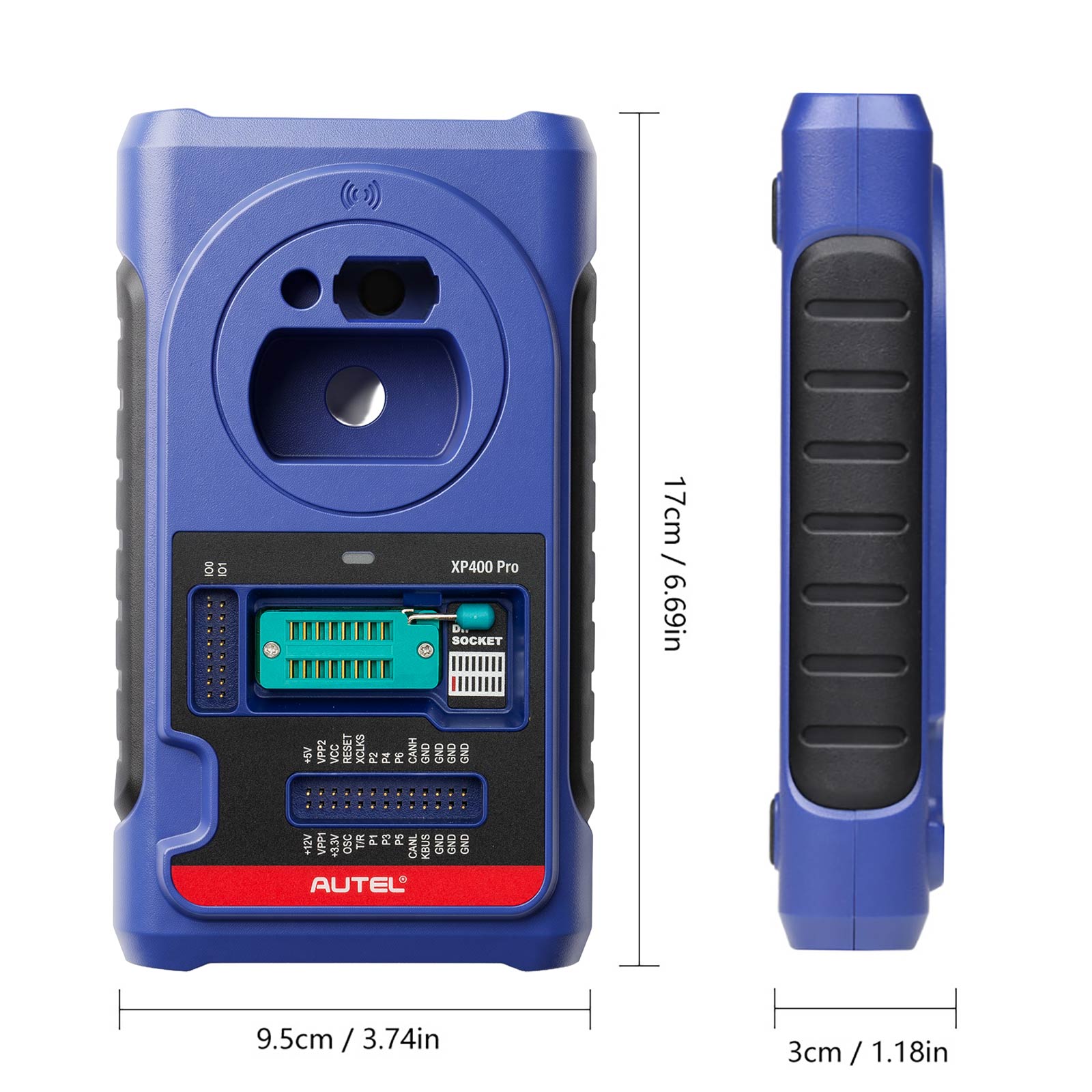

Device Dimensions (L*W*H)
130 mm * 68 mm * 28 mm
Package Dimensions (L*W*H)
201 mm * 167 mm * 75 mm
Net Weight
466 g

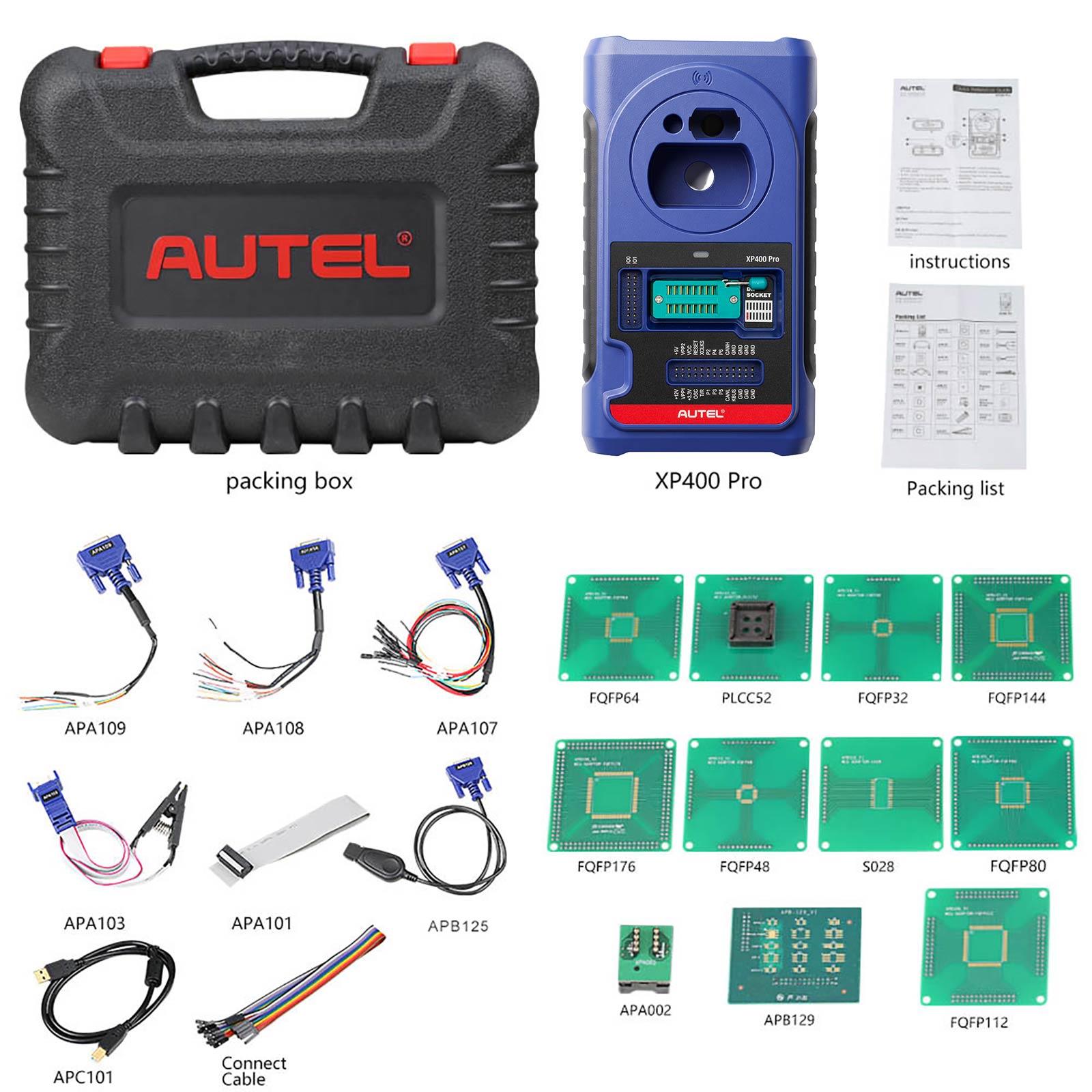

Package includes:

1pc x AUTEL XP400 PRO
