XHORSE XDMVJP MVCI PRO+ J2534 Super Vehicle Diagnosis Programming Cable Support Multi-Vehicle and Multi-Protocol

Descrizione del prodotto

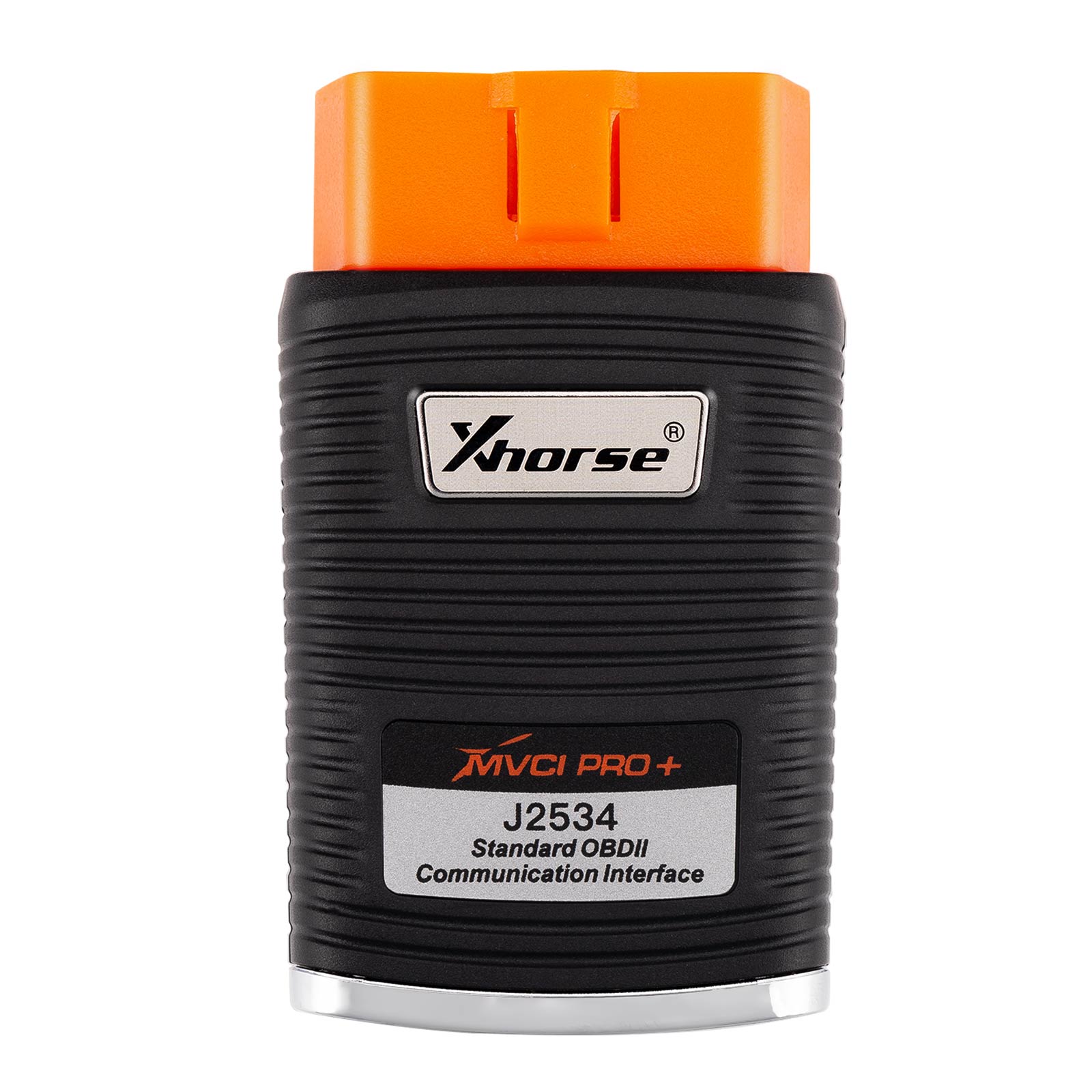

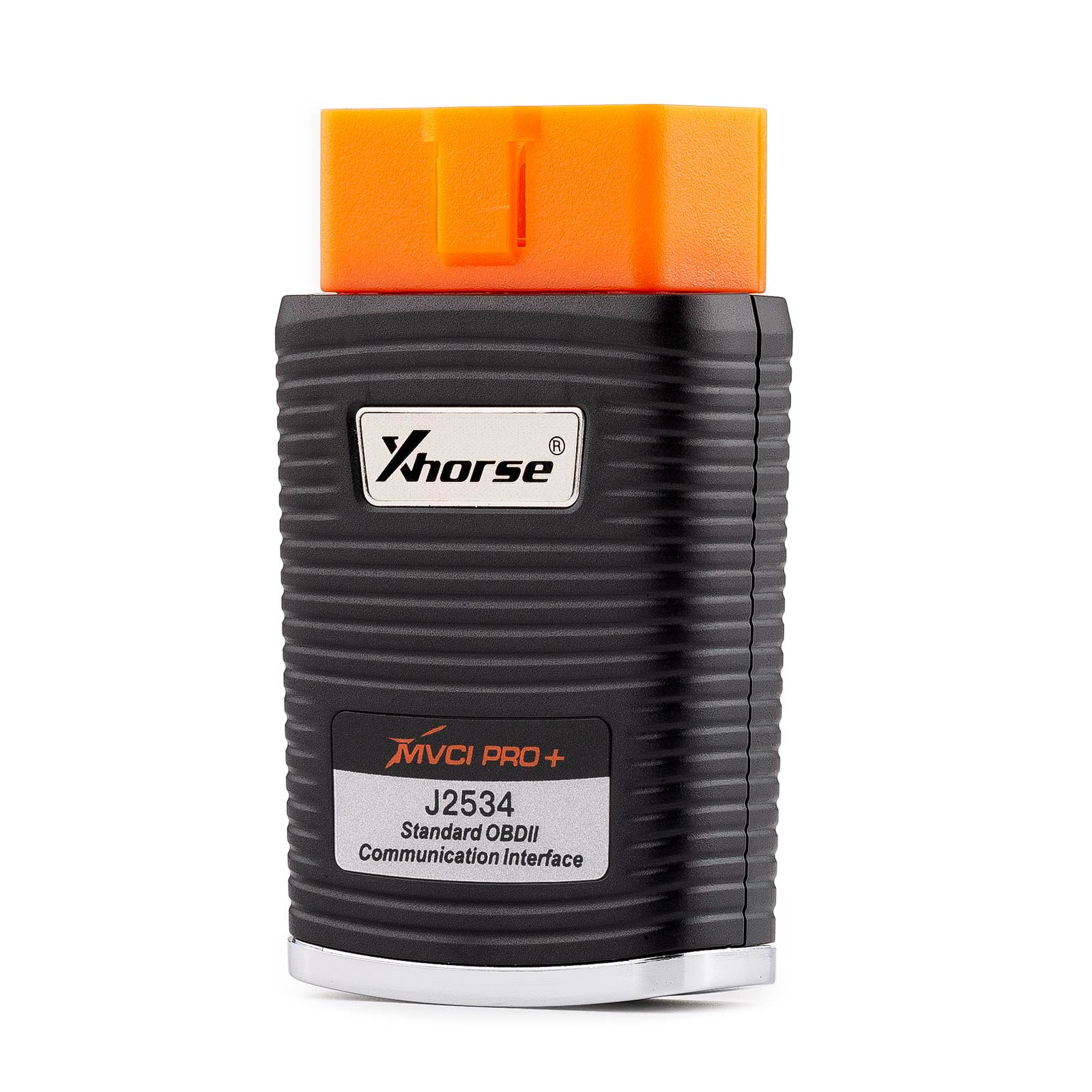

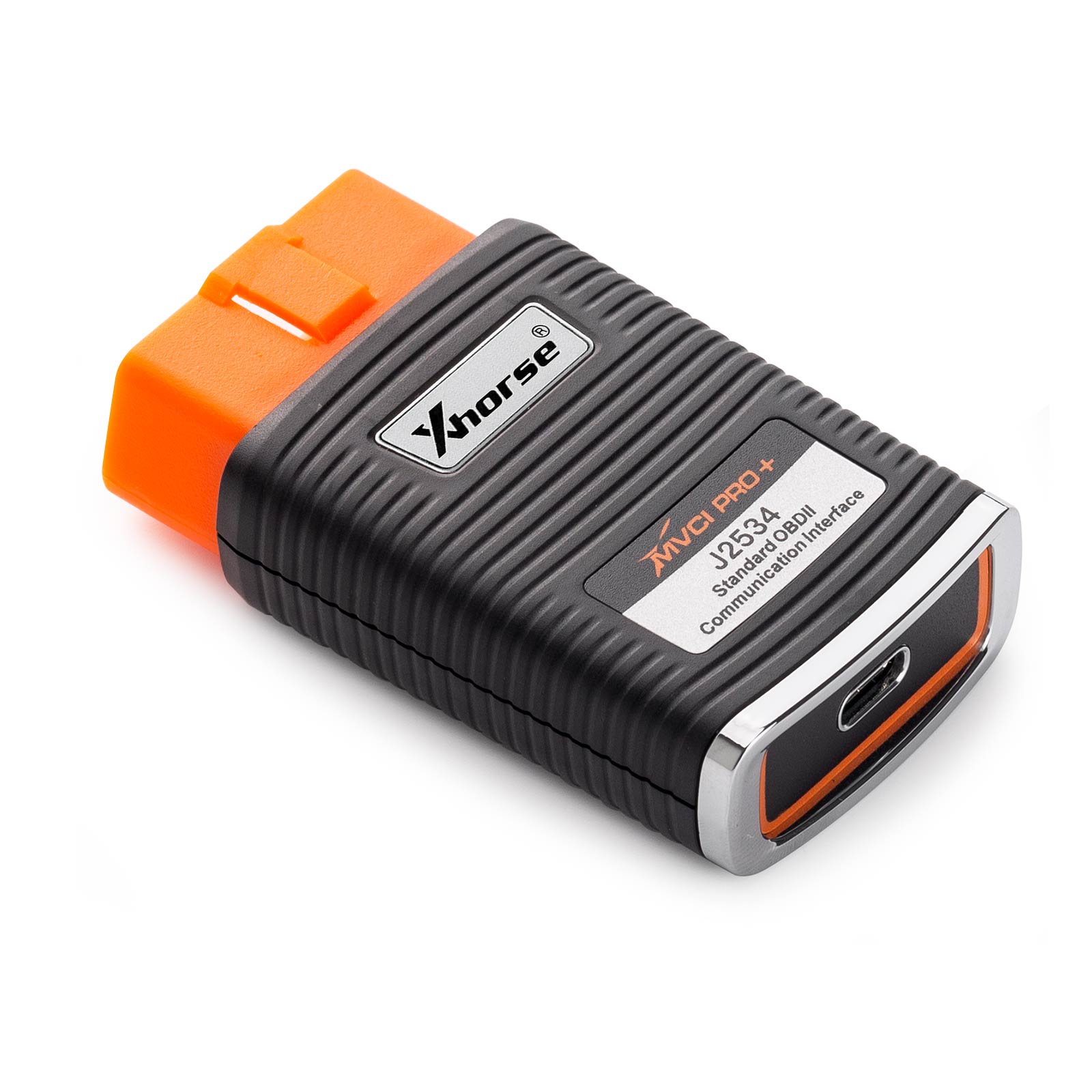

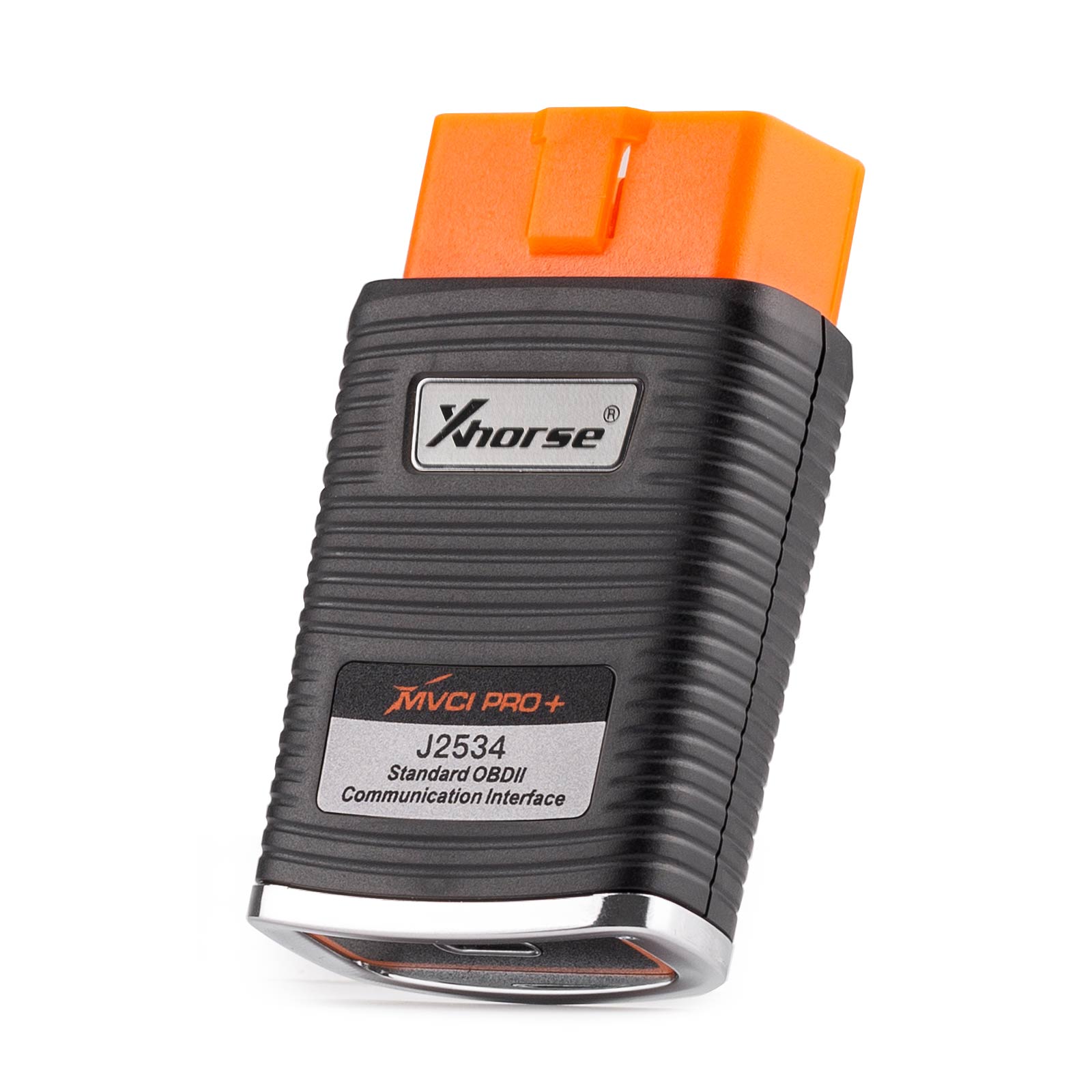

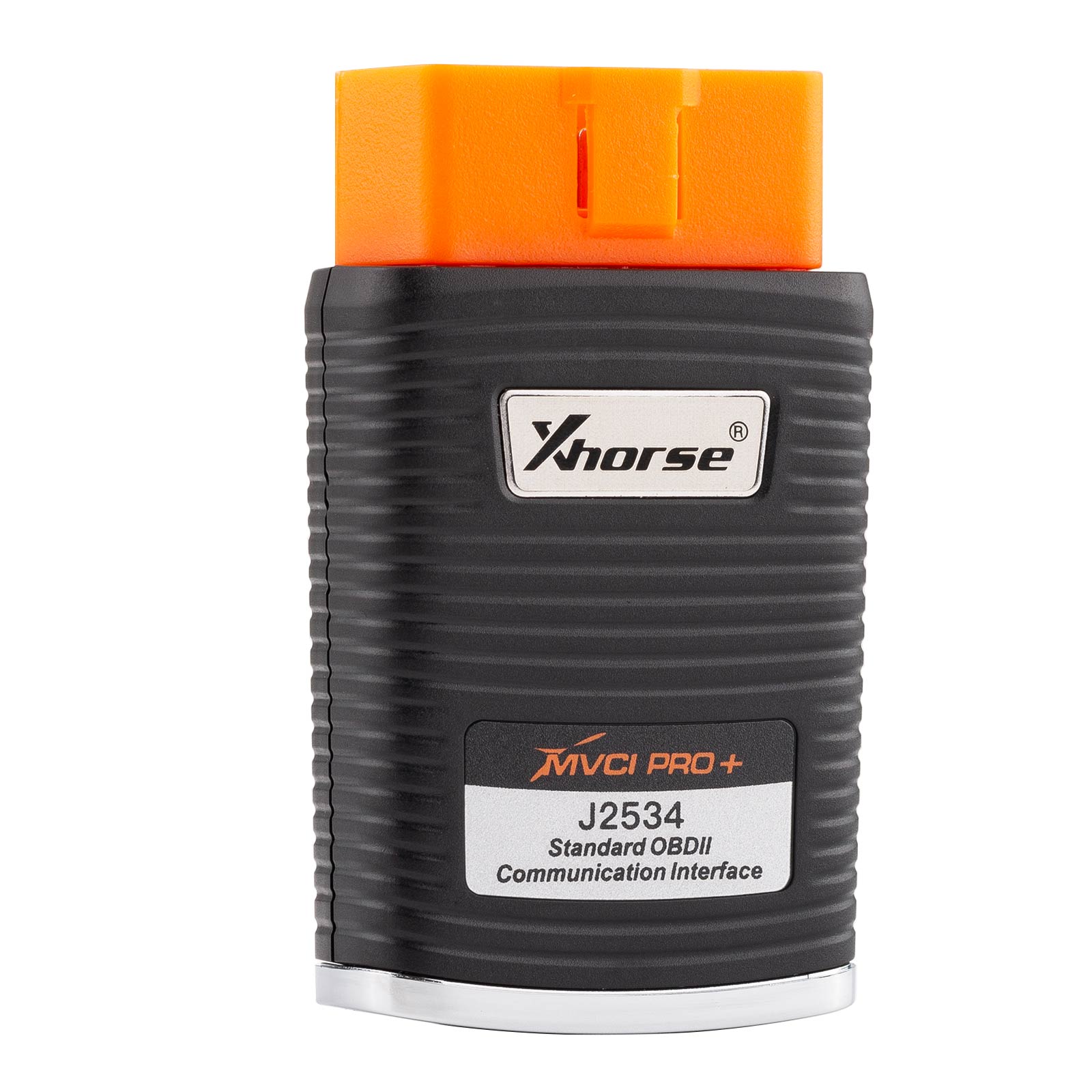

XHORSE XDMVJP MVCI PRO+ J2534 Super Vehicle Diagnosis Programming Cable

Comprehensive Upgrade  Perfect OEM Replacement      Multi-Vehicle and Multi-Protocol Support

for Buick, for Maybach, for Volvo, for Nissan, for Renault, for Peugeot, for Chevrolet,  for Mercedes-Benz...

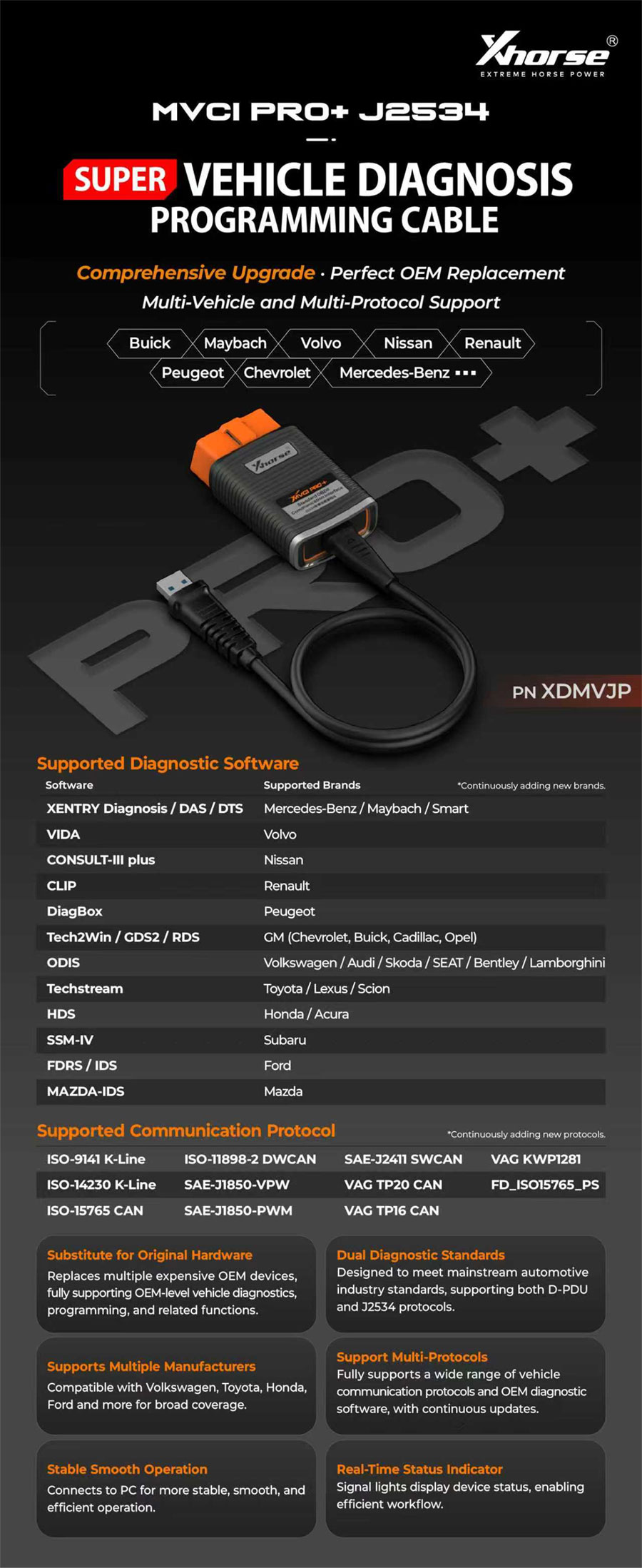

Supported Diagnostic Software   (Continuously adding new brands.)

Software                                          Supported Brands

XENTRY Diagnosis/DAS/DTS         Mercedes-Benz/Maybach/Smart
VIDA                                               Volvo
CONSULT-III plus                           Nissan
CLIP                                                Renault
DiagBox                                          Peugeot
Tech2Win /GDS2/RDS                   GM (Chevrolet, Buick, Cadillac, Opel)
ODIS                                               Volkswagen/Audi/Skoda/SEAT/Bentley/Lamborghini
Techstream                                     Toyota/Lexus/Scion
HDS                                                Honda/Acura
SSM-IV                                           Subaru
FDRS/IDS                                        Ford
MAZDA-IDS                                    Mazda

Supported Communication Protocol (Continuously adding new protocols.)

ISO-9141 K-Line         ISO-11898-2 DWCAN        SAE-J2411 SWCAN   VAG KWP1281
ISO-14230 K-Line       SAE-J1850-VPW                 VAG TP20 CAN         FD_ISO15765_PS
ISO-15765 CAN          SAE-J1850-PWM                VAG TP16 CAN



Product Features:

Substitute for Original Hardware
Replaces multiple expensive OEM devices, fully supporting OEM-level vehicle diagnostics, programming, and related functions.
Dual Diagnostic Standards
Designed to meet mainstream automotive industry standards, supporting both D-PDU and J2534 protocols.
Supports Multiple Manufacturers
Compatible with Volkswagen, Toyota, Honda, Ford and more for broad coverage.
Support Multi-Protocols
Fully supports a wide range of vehicle communication protocols and OEM diagnostic software, with continuous updates.
Stable Smooth Operation
Connects to PC for more stable, smooth, and efficient operation.
Real-Time Status Indicator
Signal lights display device status, enabling efficient workflow.

How to Set up MVCI Pro+ J2534 Cable?

1. Download and install the original diagnostic software on the computer. The original software needs to support J2534(Note: The original software needs to be downloaded by users from other channels. Some brands have special J2534 diagnostic software. Please refer to the official data of the original manufacturer for details.)

2. Download and install MVCI PRO-J2534 software on the computer at the following address: http://dl.xhorse.net.cn/p/vd06

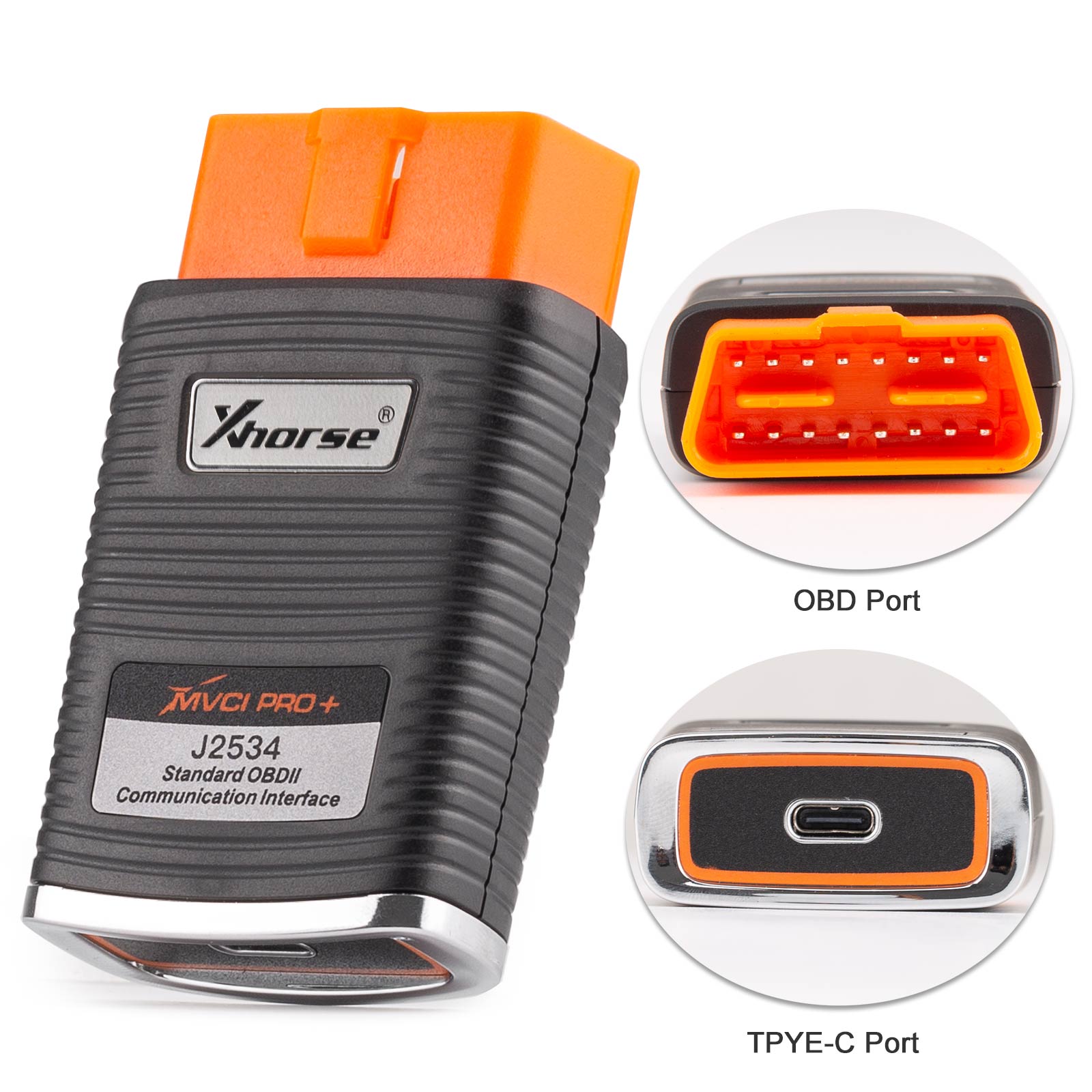

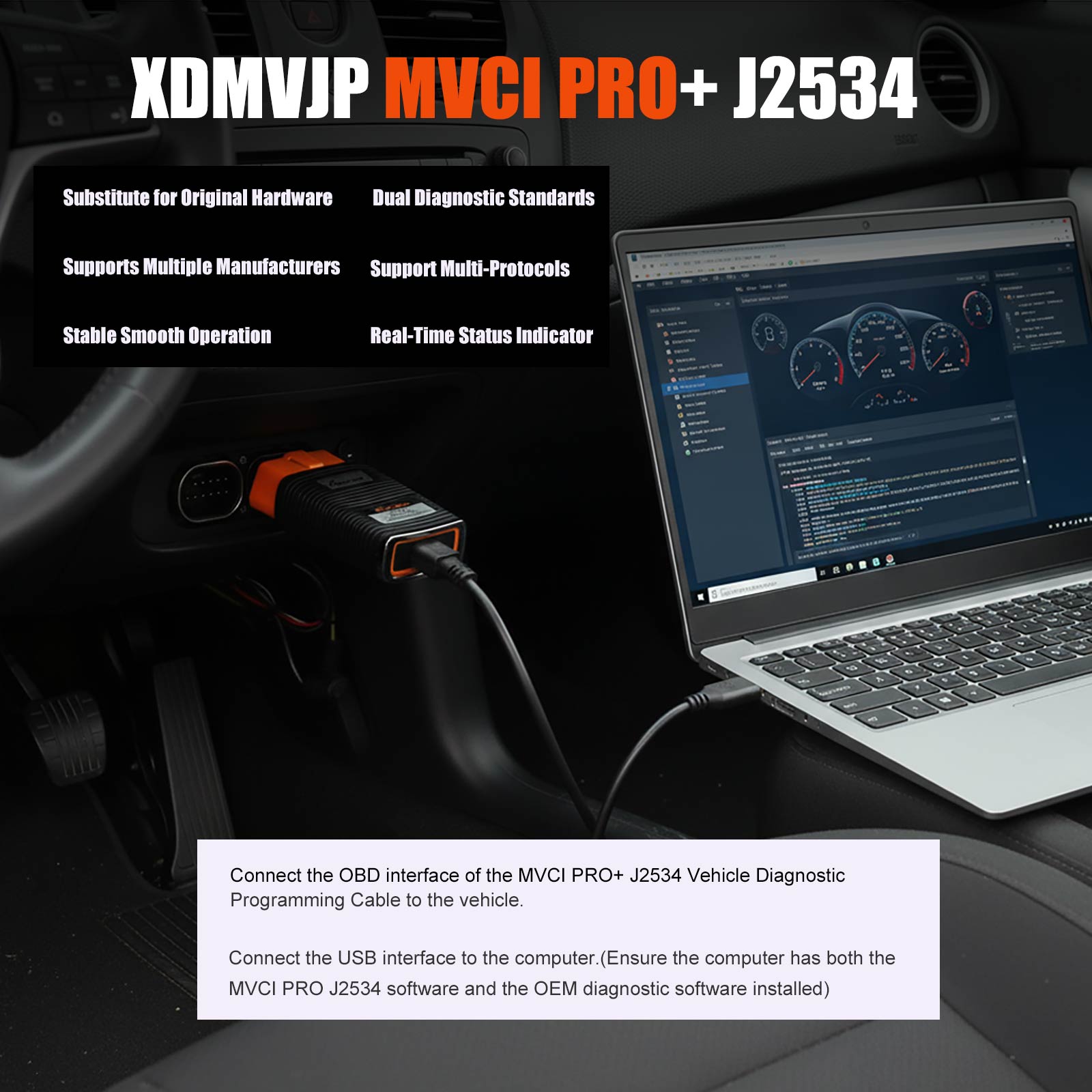

3. Connect the OBD interface of MVCI PRO-J2534 vehicle diagnosisprogramming cable to the vehicle, and connect the USB interface to the computer (the computer needs to be installed with MVCI PRO J2534 software and the original diagnosis software).

4. After connecting, click [Connect Device] in MVCI PRO-J2534 software. After connecting successfully, you can view the device information, including firmware version number, serial number, etc. [Read authorization] can read the current device authorization statusand available times. (Note: When the number of available times is 0, theuse of most functions will be limited)[Update authorization] can update the latest authorization status of the device and reset the available times.

5. Install the drive required by the corresponding brand in MVCI PROJ2534 software [Vehicle diagnosis]. After successful installation, youcan operate on the original diagnostic software.

6. In MVCI PRO+ J2534 software [Upgrade], you can view the current version information, update software and firmware.

7. In MVCI PRO+ J2534 software [System setting], you can switch software language, open operation log and save operation log.

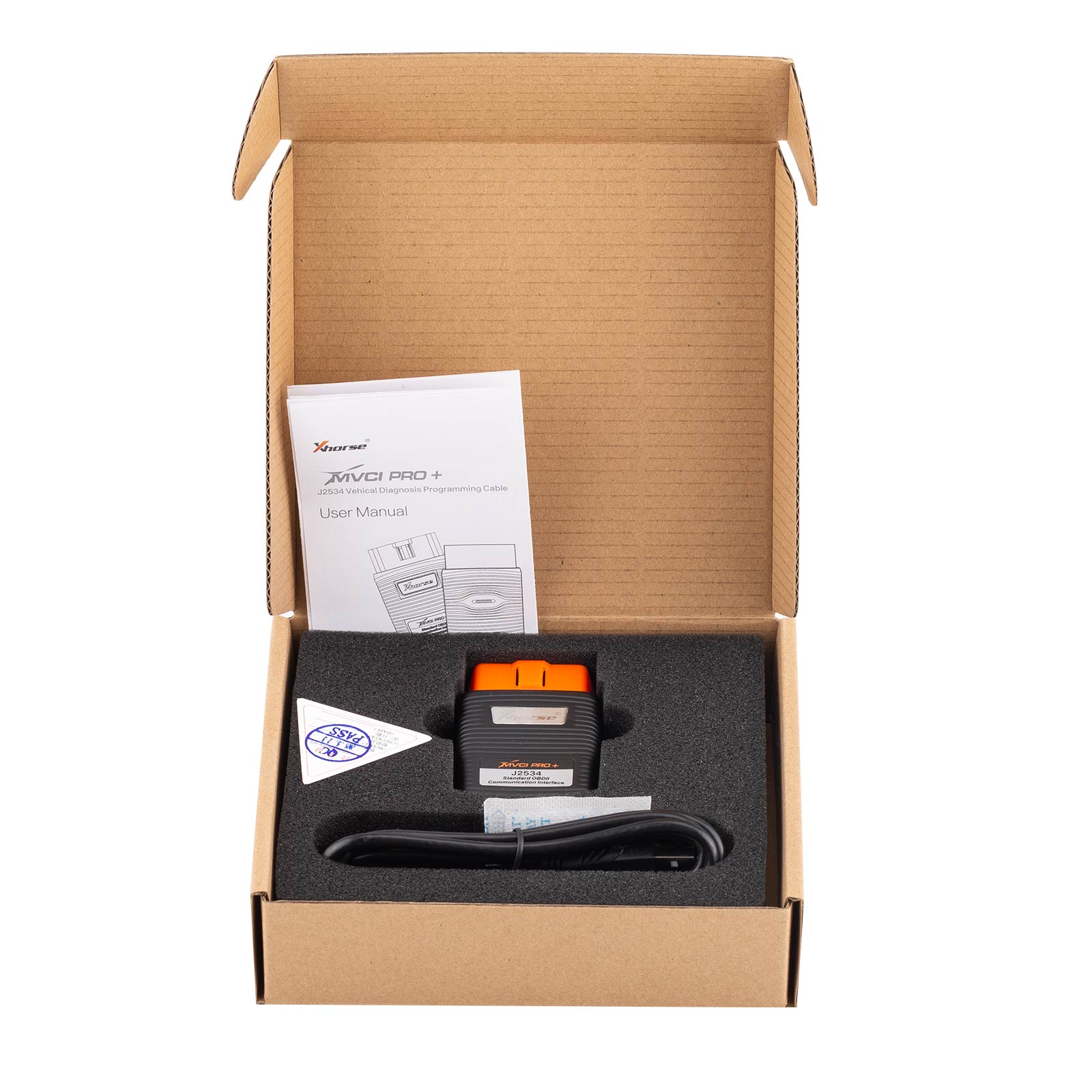

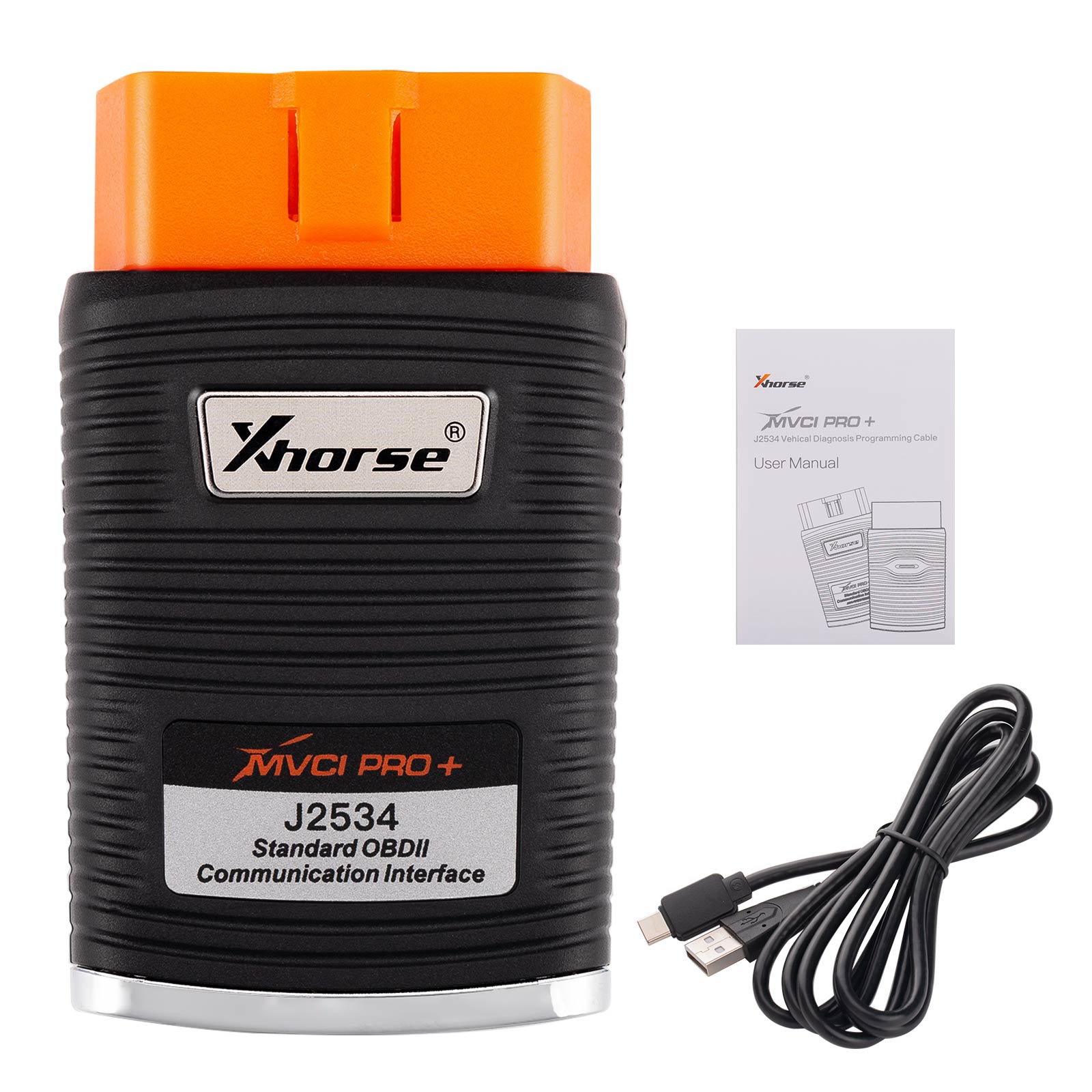

Package includes:

1pc x XHORSE XDMVJP MVCI PRO+ J2534 Super Vehicle Diagnosis Programming Cable





---
