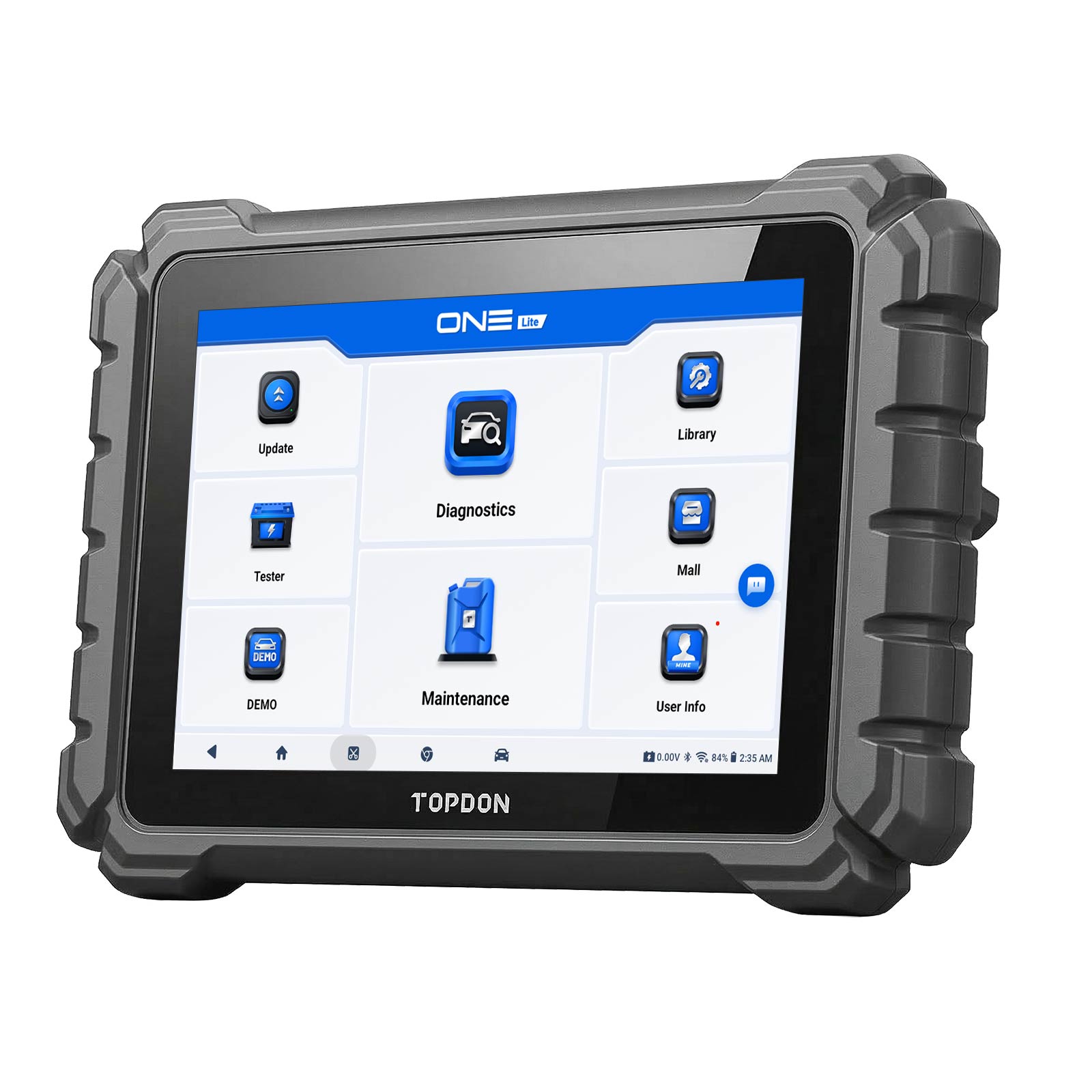

2026 TOPDON ONE Lite Bidirectional Diagnostic Scanner CANFD DoIP J2534 VCI Support ECU Coding Topology 50+ Service Function, TopFix AI



2026 TOPDON ONE Lite Bidirectional Diagnostic Scanner with J2534 VCI

What is Topdon ONE Lite?

The TOPDON ONE Lite is built for technicians who need fast, accurate, professional and reliable diagnostics every day. It delivers dealer-level capability with clear network mapping, smart repair guidance, and deep coverage across modern vehicle systems. With support for advanced protocols, coding functions, and the speed of dual-Wi-Fi architecture, the ONE keeps your workflow moving and your shop ahead of the curve.

TOPDON ONE Lite Highlights:

• Full System Diagnostics
• Bidirectional control (Active Tests)
• 12 Live Data Streams
• 50 service functions
• Dual WiFi + CAN-FD&DoIP protocol
• With J2534 Passthru VCI
• 8-core CPU + 128GB storage
• 10-Inch Power, 8-Inch screen
• ECU Coding for BMW / VW / BENZ
• FCA /VAG /Renault SGW
• OE-level topology mapping
• TopFix AI
• 1 Year Warranty &  1 year software Update ($299 per year later)
• Multi-Languages
• Topdon ONE Lite User Manual
• Warranty & Updates:

  1 Year Updates Included
  1 Year Warranty (Active Subscription Continues Warranty).
  Updates: $299/1 year or $479/2 years (20% savings).

TOPDON ONE Lite Features & Functions:

Full-System Diagnostics & Reporting

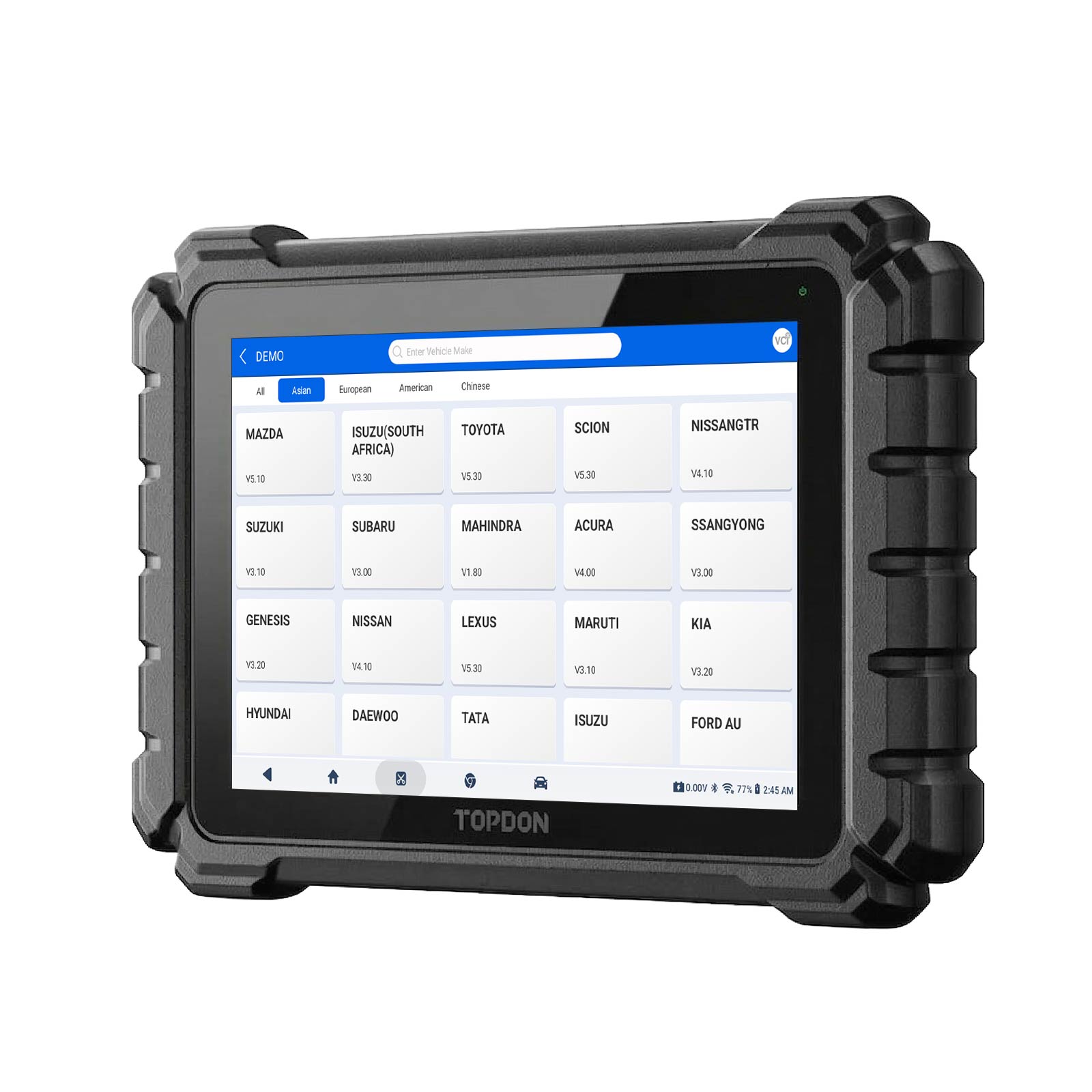

Complete Module Scans: Coverage for 120+ Brands

The TOPDON ONE Lite performs full-system scans across more than 120 vehicle brands, including reading and clearing fault codes, checking system status, and reviewing module communication. The broad coverage supports comprehensive diagnostic work across a wide range of makes and models.

AutoVIN & AutoScan + All Available System Access :

This powerful, all-in-one diagnostic scan tool reads and erases codes, views live data, retrieves ECU version info, and performs active tests and service functions across every system—ECM, TCM, ABS, SRS, BCM, BMS, TPMS, SAS, Fuel System, Light System and A/C system and more. The AutoVIN & AutoScan features allow the TOPDON ONE LITE scan tool to automatically connect with all available ECU modules across onboard systems, performing a full scan to pinpoint faults and getting instant identification and diagnostics.

Active Test & Bi-directional control:
one lite supports over bi-directional control functions, Send precise commands to multiple systems and components to check their working status. Achieve fast, accurate diagnostics and take control like never before.


ECU Coding: Customization and Component Matching
The ONE Lite gives technicians dealer-level control over coding tasks. Adjust vehicle settings, match new modules, initialize components, and access features that typically require OE tools. It’s a straightforward way to handle replacements, personalization, and system updates with confidence.

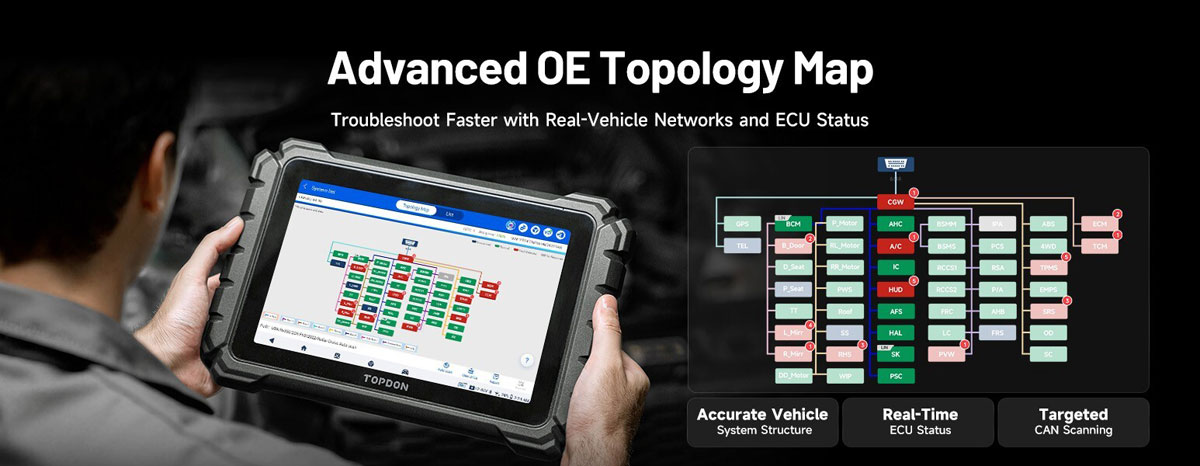

OE-Level Topology Mapping: Full Network View for Faster Diagnosis
The TOPDON ONE Lite presents a clear, OE-style map of every module on the vehicle, showing how systems communicate and where faults appear. See interconnections, active DTC counts, and highlighted trouble areas at a glance so you can pinpoint issues with confidence and keep the workflow moving.


TopFix AI: Integrated Fault Data and Repair Guidance
TopFix AI is our built-in artificial intelligence that interprets fault codes and streamlines the diagnostic process. It provides clear fault code explanations, likely causes, related symptoms, and structured repair steps in one view. When available, wiring diagrams and technical references appear alongside the data so technicians can move directly from fault identification to corrective action.

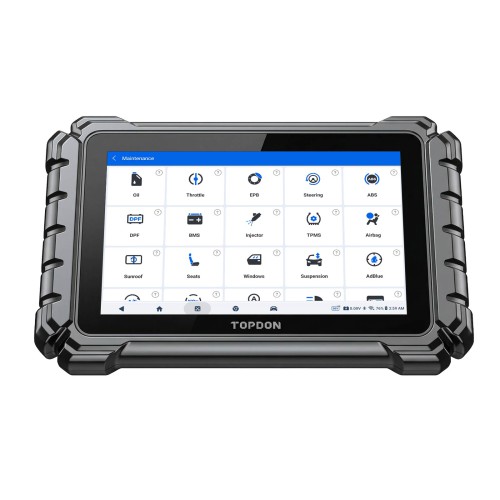

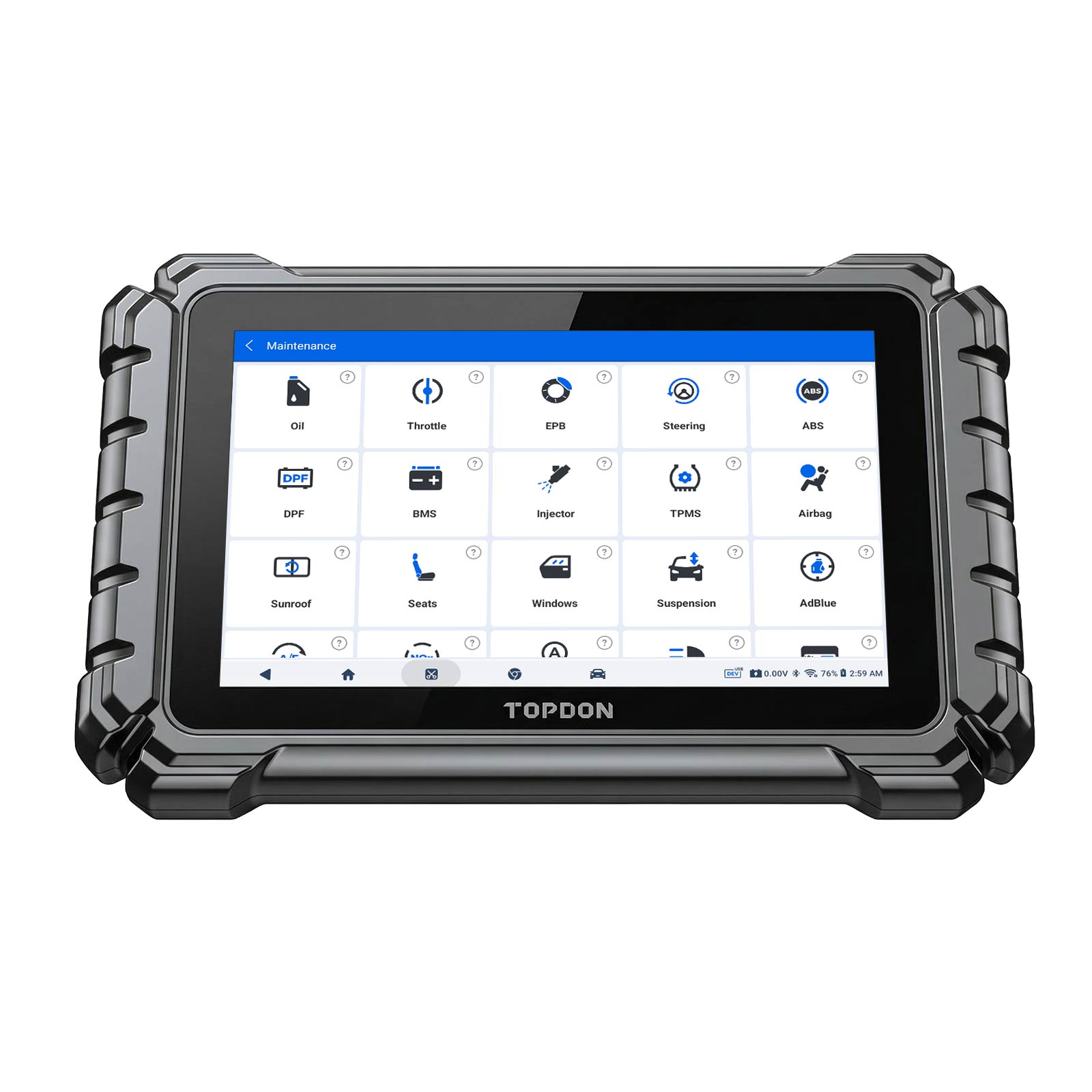

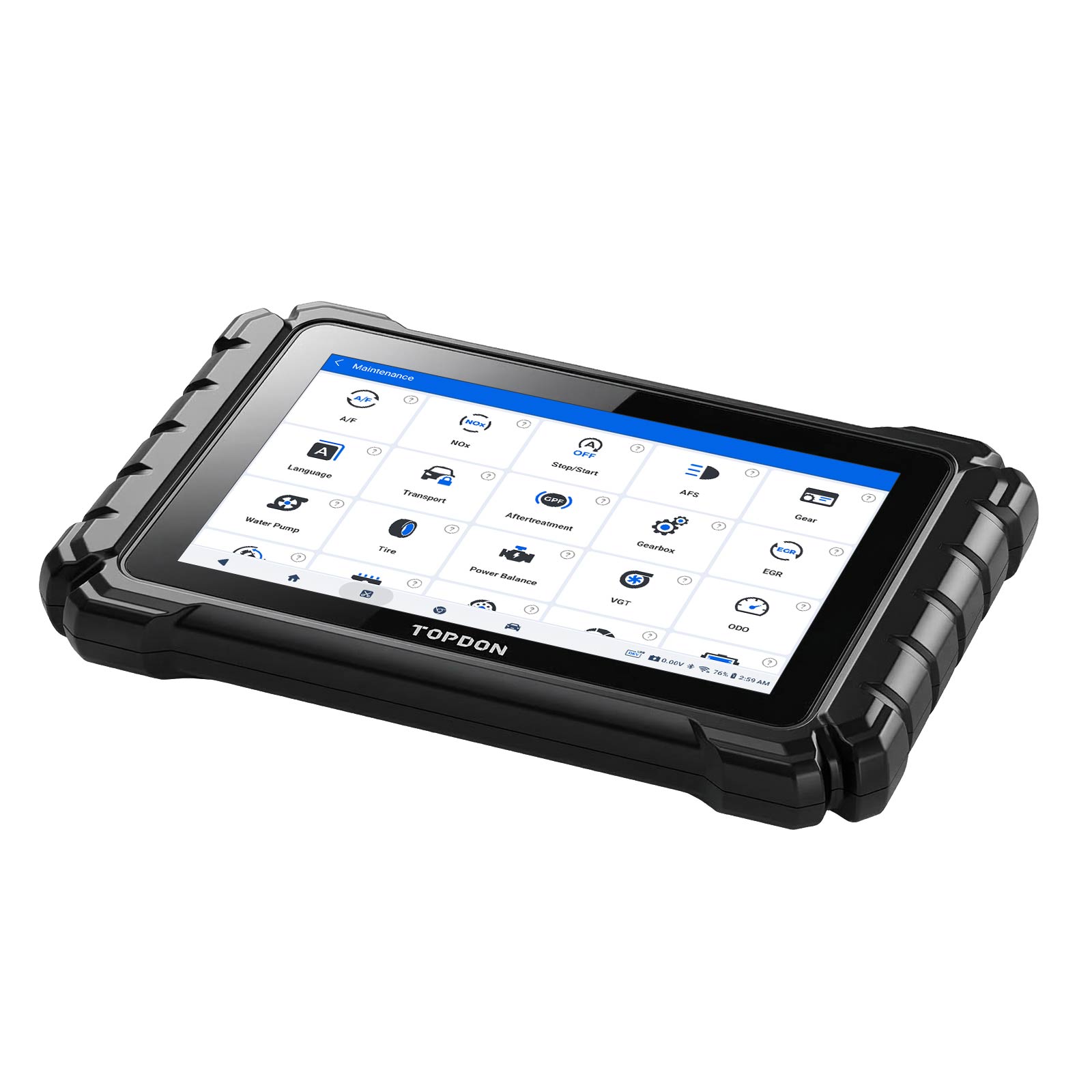

50+ Maintenance Functions: Coverage for Common Service Tasks
The ONE Lite supports more than 50 maintenance functions, including resets, adaptations, and calibrations used in routine service work. Functions include Oil/BMS/EPB resets, DPF regeneration, Dynamic ADAS calibration, camshaft learning, relative compression, and other system-specific procedures needed in daily repair operations.

1.Oil Reset Service

2.Throttle Body Adaptation

3.Brake Pad Replacement (with Reset)

4.ABS Bleeding

5.Steering Angle Sensor Reset / SAS Calibration

6.Diesel Particulate Filter (DPF) Regeneration

7.Fuel Injector Coding / Programming

8.Battery Registration / Adaptation

9.Tire Pressure Monitoring System (TPMS) Reset

10.Airbag System Reset / SRS Module Reset

11.Sunroof Initialization / Calibration

12. Seat Calibration / Memory Position Reset

13. Window Calibration / Auto-Up/Down Initialization

14.Suspension System Adaptation / Level Control Calibration

15.AdBlue / DEF System Reset (Urea System Reset)

16.Air-Fuel Ratio (A/F) Adjustment / Adaptation

17.NOx Sensor Reset / Nitrogen Oxide Sensor Reset

18. Start-Stop System Activation/Deactivation

19.Headlight Aiming Control / AFS Adaptation (if equipped)

20.Transmission Adaptive Value Learning (Gear Learning)

21.Language Setting

22.Transport Mode Deactivation

23. Gasoline Particulate Filter (GPF) Service / Regeneration

24.Transmission Adaptation / TCM Relearning

25. Exhaust Gas Recirculation (EGR) Self-Learning / Adaptation

26. Electric Coolant Pump Activation

27.Tire Size Programming / Change

28.Cylinder Balance Test / Compression Balance Test

29. Turbocharger Adaptation

30. Odometer (ODO) Reading / Programming

31. EEPROM Adapter

32.Clutch Adaptation

33.Speed & Power Limiter Settings

34. Footwell Module (FRM) Reset

35.High Voltage Battery Service / Reset

36. Cruise Control System Calibration

37.Air Conditioning System Relearning / Initialization

38. Rain/Light Sensor Calibration

39. Control Unit Reset (Soft Reset)

40.Relative Compression Test

41.High Voltage System Deactivation / Activation

42. Coolant / Refrigerant Replacement Procedure

43.Resolver Sensor Calibration

44. Camshaft Learning (Phase Adaptation)

45.Vehicle Identification Number (VIN) Programming / Writing

46.Motor Position Sensor Calibration

47.A/C Compressor Test

48.DC-DC Converter Reset / Diagnosis

49.48V Mild-Hybrid System Component Service / Reset

50.Dynamic ADAS Calibration (Dynamic Calibration for Advanced Driver Assistance Systems)


J2534 Pass-Thru Programming: OEM Software Support
The TOPDON ONE Lite also functions as a J2534 Pass-Thru programmer, allowing technicians to perform OEM software updates and module programming. When connected to a laptop, the ONE VCI serves as the communication interface between the vehicle and the OEM software.

A compatible laptop and active OEM software subscriptions are required.

Advanced Protocols Support: CAN-FD and DoIP Coverage
The TOPDON ONE Lite supports CAN-FD and DoIP communication protocols for compatibility with newer vehicle networks. Coverage includes 2013+ BMW, 2016+ VW and Volvo, 2017+ Jaguar, 2018+ Mercedes-Benz, 2020+ GM and Chrysler models, and other systems that rely on advanced communication standards.

Security Gateway Support: Full Functions on SGW Vehicles
The TOPDON ONE Lite supports authorized support for FCA, Renault, Nissan, and VAG SGW-equipped models. Gain access to coding, active tests, clearing codes, and system-level service functions on supported vehicles. Compatibility includes current and upcoming SGW implementations.

Access to SGW-protected systems may require OEM credentials where applicable.

Dual Wi-Fi: Faster Communication Between Tablet and VCI
The TOPDON ONE Lite uses dual Wi-Fi modules to maintain stable communication and high-speed data transfer between the tablet and VCI. This design provides a faster, more responsive experience than Bluetooth-based connections, especially during system scans, live data viewing, and coding operations.

8-Core CPU: Fast Processing for Heavy Diagnostic Tasks
The TOPDON ONE Lite uses an 8-core processor to handle multi-system scans, coding operations, and large volumes of live data without delays. The added processing power keeps the interface responsive during complex or extended diagnostic workflows.

Live Data Display: Multi-Parameter Viewing
View up to 12 live parameters simultaneously for easier comparison. Sorting and grouping options allow technicians to analyze sensor behavior and system performance with clarity during diagnostic work.

Diagnostic Reporting: Clear, Shareable Documentation
The TOPDON ONE Lite generates structured diagnostic reports that include fault codes, module status, and test results. Save and share reports with customers or internal teams for documentation and repair planning.

Expand to Battery Testing: Integrates with BTMobile ProS
The TOPDON ONE Lite is compatible with BTMobile ProS, allowing shops to expand their services to include true, in-depth battery diagnostics. Perform overall health, charging, cranking, state of health, and state of charge tests to get to the heart of customer battery conditions.

15 Languages Support:
English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Chinese, Turkish, Polish, Serbian, Slovak.

Topdon ONE Lite vs Topdon ONE

Both ONE and ONE Lite support ECU coding for BMW, Benz, and VW/Audi.
The main difference is:
ONE Lite supports coding, but does not support hidden function flashing.

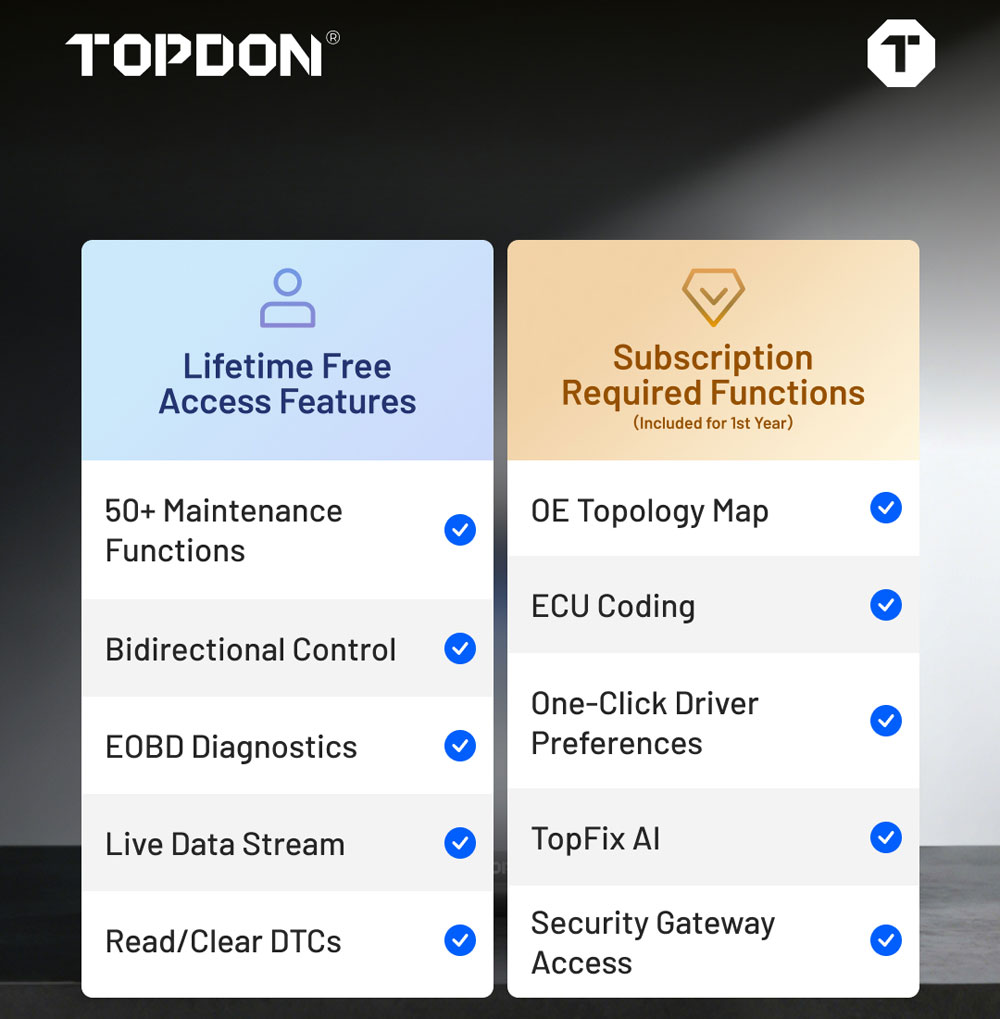

After the software upgrade expires, the following functions remain available:

EOBD
Read/Clear Codes
Data Stream
Active Tests
Maintenance Functions

However, the following features will no longer be available:
Latest vehicle model updates
Topology Map
ECU Coding
One-Click Customization/Driver Preference
TopFix AI
Gateway Access

Specifications:
Display: LCD 10.1-Inch, 1280 * 800 resolution
CPU:8-Core Processor, 2.0 GHz
Operating System: Android 12.0
RAM: 4G, ROM:128G
Battery:10000 mAh / 3.8V Support PD 5V3A  9V/3A  12V/2.5A fast charging
WiFi:dual wifi model,support STA/AP
Bluetooth ：Bluetooth 5.0（distance：33 feet/10 m）
Rear Camera (with Flash): 8MP, 77.1° FOV, with Auto Focus

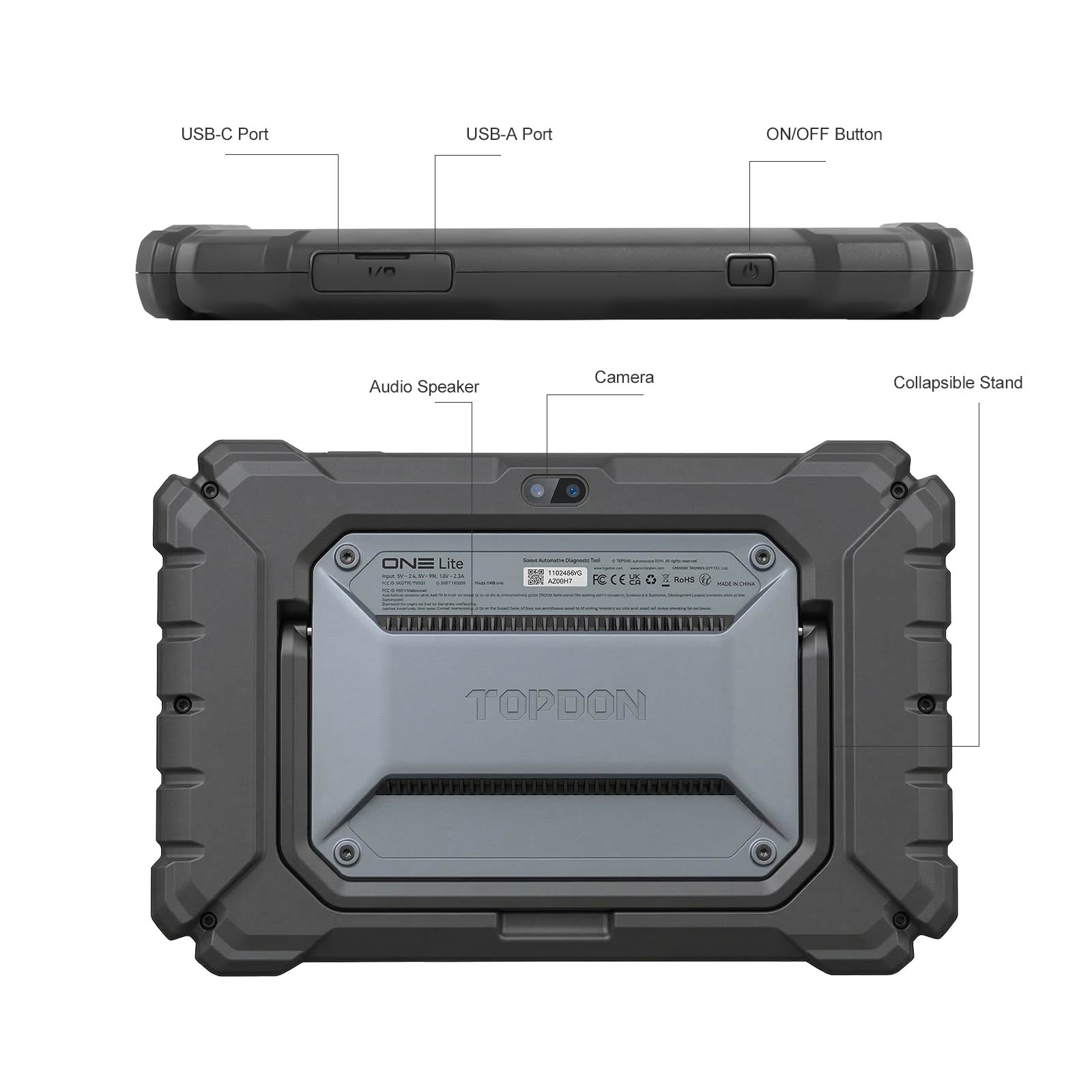

Buttons & I/O: Power button, 1 x USB Type-A (Host mode), 1 x USB Type-C (Host/Device)
Sensors:Light Sensor（ALS/Ambient Light Sensor ）、Tem-Sensor、G-Sensor/Acc-Sensor
Storage Temperature: -20℃~70℃（-4℉~158℉）
Working Temperature: -10℃~50℃（14℉~122℉）
Dimension: 311*207*39 mm （12.24*8.15*1.54 inch）
Package size: 507*380*147 mm （19.96*14.96*5.79 inch）
Net Weight: 1574g （3.47 lb)


Specifications(VCI): Indicator Lights
Red Light (Power): Solid on indicates power is on and connected.
Blue Light (VCI Connection): Solid on indicates a successful connection has been established via Bluetooth, Wi-Fi, or USB cable.
Green Light (Communication): Flashing indicates active data communication with the vehicle.
External Interface USB Type-C: USB 2.0. Connects the tablet to the VCI using the included Type-A to Type-C cable.
Technical Specifications
Bluetooth: Version 5.0 (Range: 33 ft / 10 m)
Wi-Fi: Supports AP Mode. 802.11b/g/n, 2T2R, 2.4 GHz, up to 300 Mbps.
Storage Temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)
Operating Temperature: -10℃ ~ 50℃ (14℉ ~ 122℉)
Dimensions: 114.8 × 51.0 × 29.0 mm (4.52 × 2.00 × 1.14 in)
Net Weight: 96 g (3.39 oz)

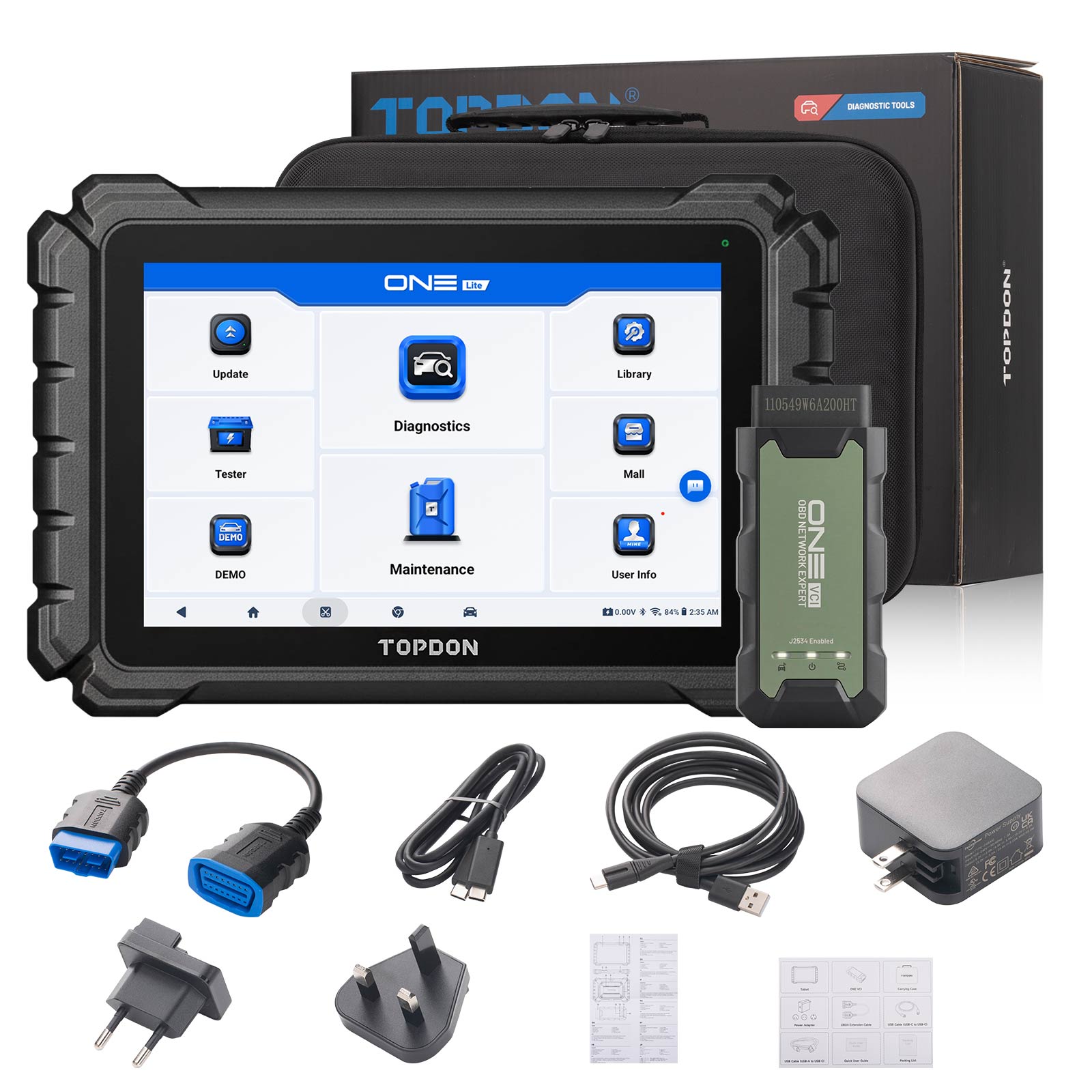

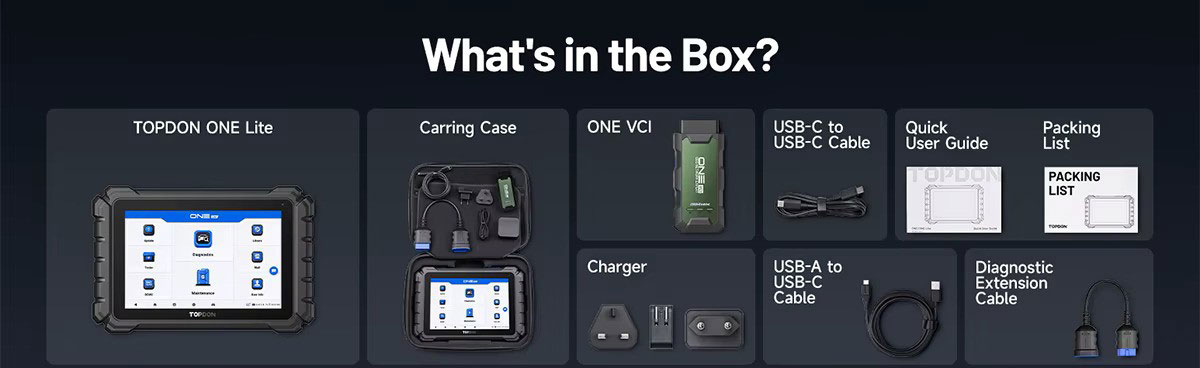

Package Including:

1*TOPDON ONE Lite scanner Main Unit
1*VCI (Vehicle Communication Interface)
1*Charger
1*Diagnostic Extension Cable
1*Type-C to Type-C Cable
1*USB Type-A to Type-C Cable
1*Quick Start Guide
1*Packing List
1*Desiccant
1*Carrying case
1*Packaging box
