2026 OBDSTAR iScan GLOBAL TOHATSU MARINE

Descrizione del prodotto

2026 OBDSTAR iScan GLOBAL TOHATSU MARINE

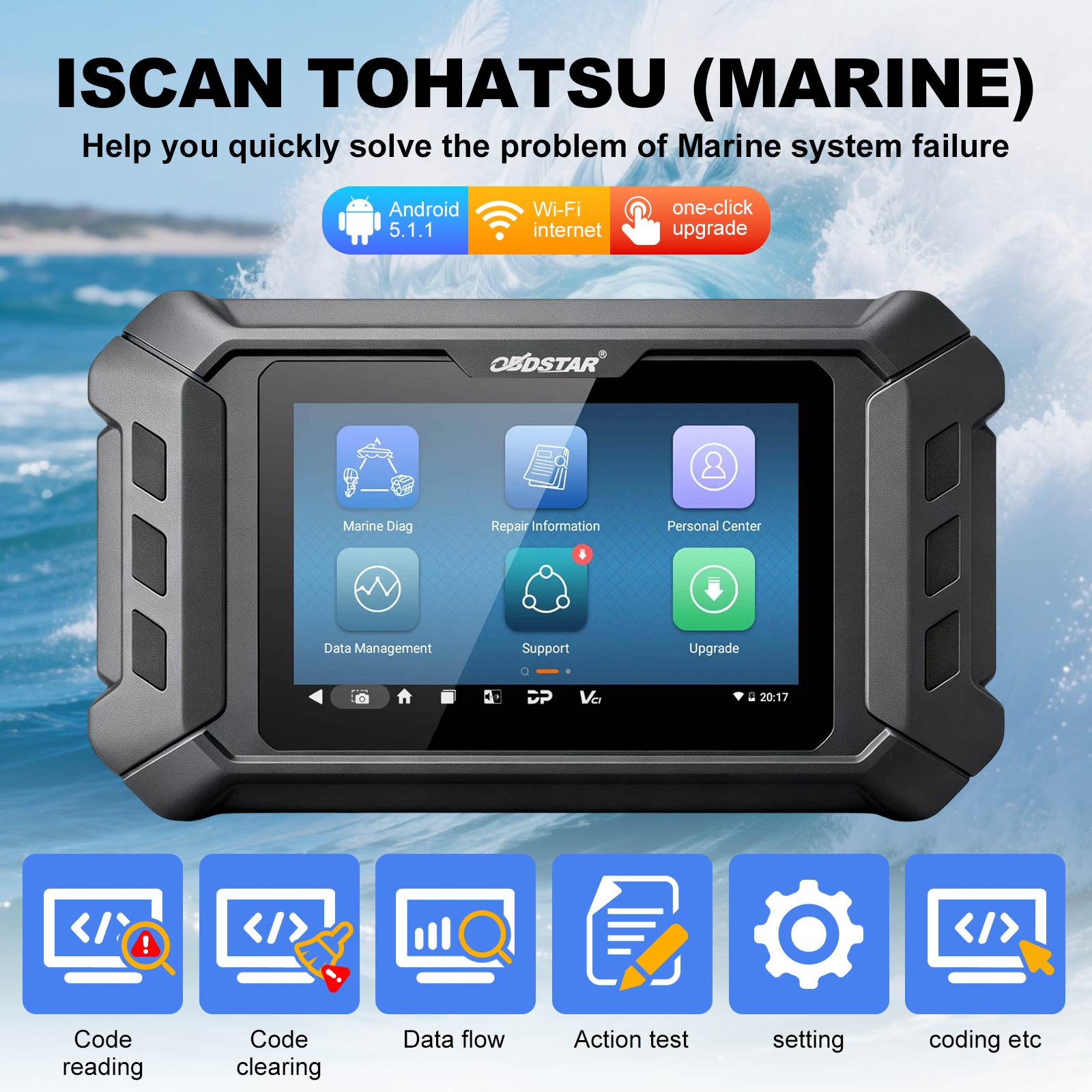

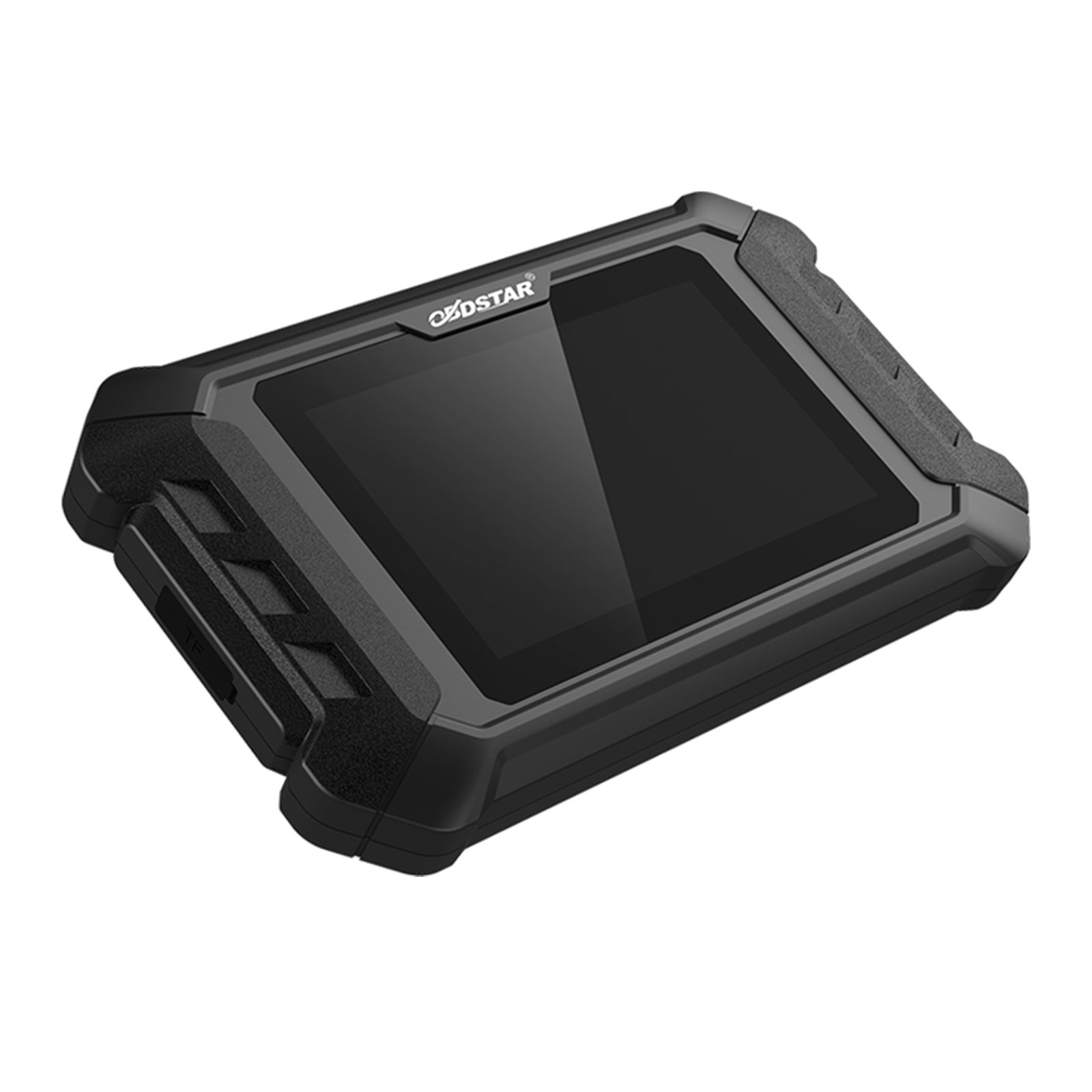

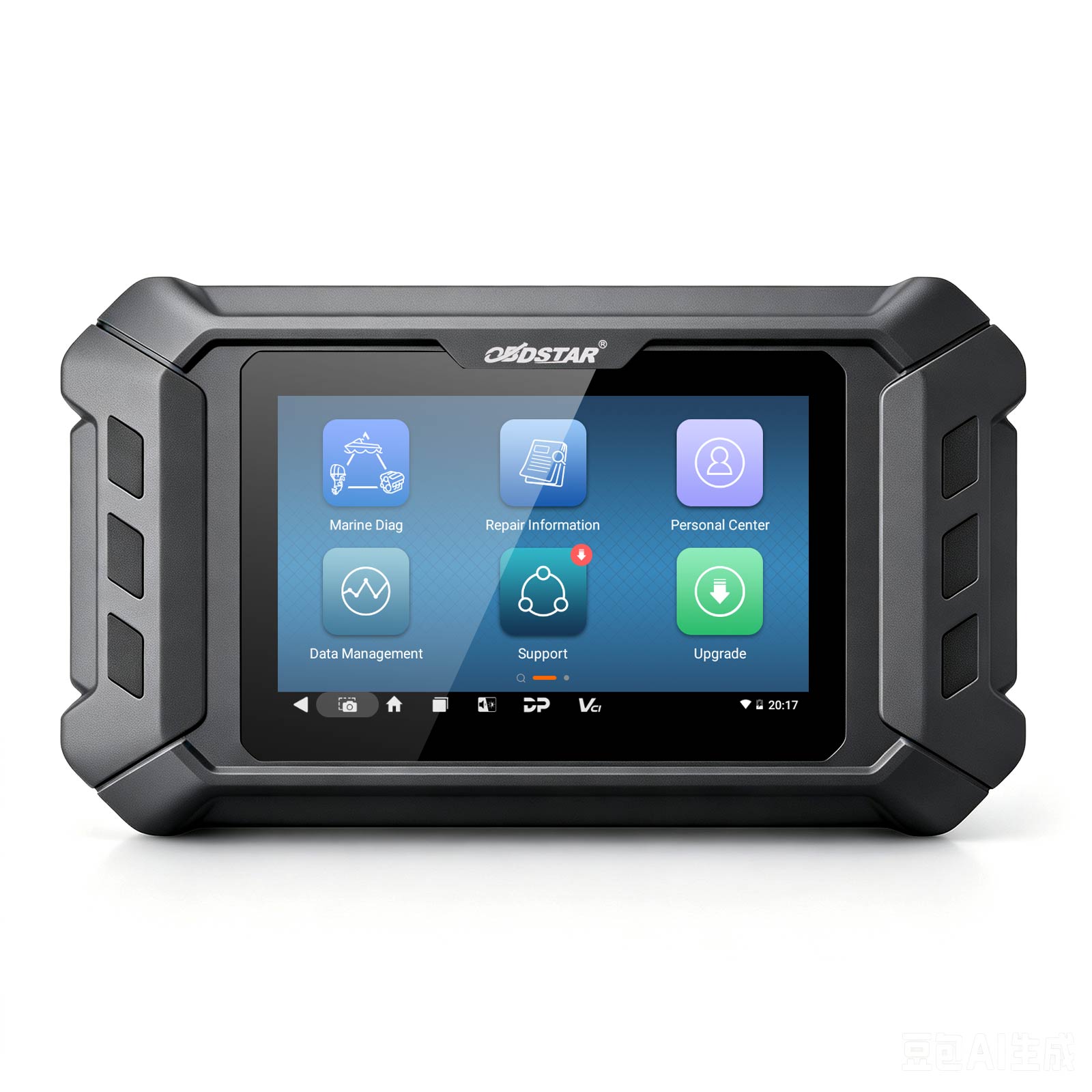

ISCAN TOHATSU is a portable tablet which has super performance and industrial appearance design specialized for TOHATSU. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.


Functions

1. Android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quicker;

5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance.

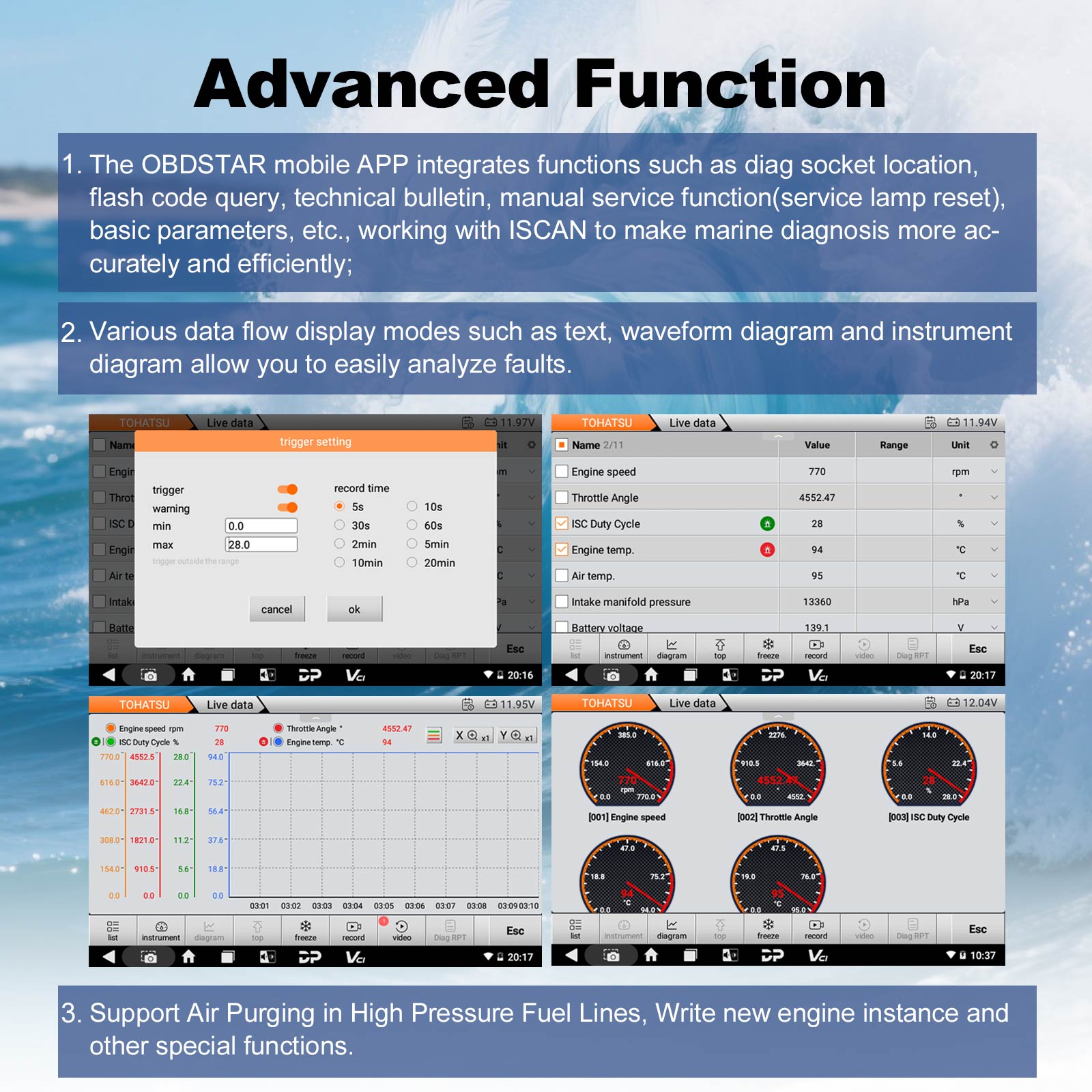

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.

3. Support Air Purging in High Pressure Fuel Lines, Write new engine instance and other special functions.

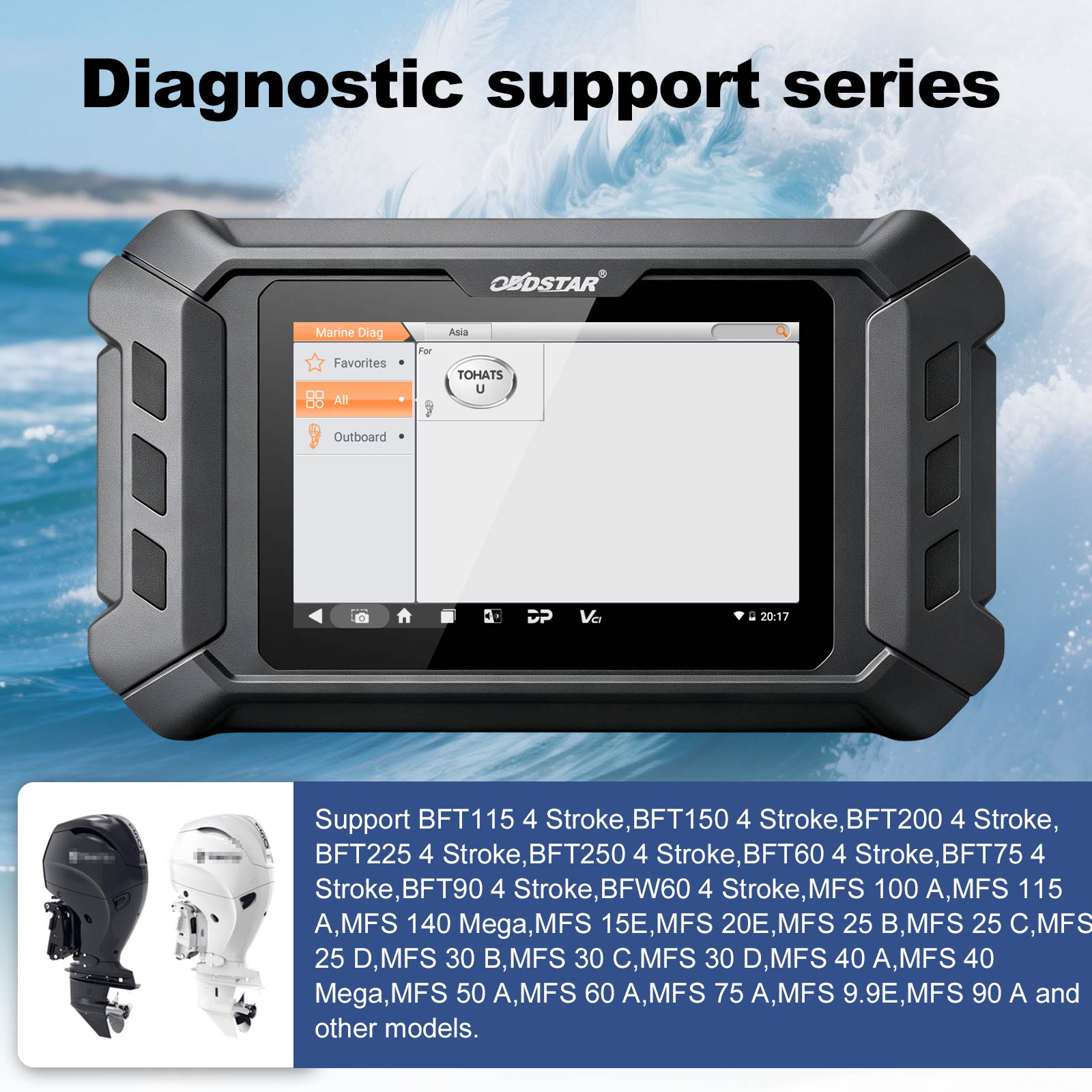

Diagnostic support series

Support BFT115 4 Stroke, BFT150 4 Stroke, BFT200 4 Stroke, BFT225 4 Stroke, BFT250 4 Stroke, BFT60 4 Stroke, BFT75 4 Stroke, BFT90 4 Stroke, BFW60 4 Stroke, MFS 100 A, MFS 115 A, MFS 140 Mega, MFS 15E, MFS 20E, MFS 25 B, MFS 25 C, MFS 25 D, MFS 30 B, MFS 30 C, MFS 30 D, MFS 40 A, MFS 40 Mega, MFS 50 A, MFS 60 A, MFS 75 A, MFS 9.9E, MFS 90 A and other models.

Specification:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-10℃—55℃ (14℉—131℉)
Storage temperature	-20℃—70℃ (-4℉—158℉)
Weight	About 700g
Dimension	198mm*115mm*31mm

FAQ:

Q: Where can I find a list of supported functions for a product?

A: You can download the list of supported models for each module from the “Function Manual” on the product page of our official website, and we usually synchronize the update at the end of each month.



Q: Does the device support 24V power supply?

A: No.



Q: Does the device require the annual subscription fee?

A: Our current policy is that upgrades are free for 2 years from the time of registration. From the 3rd year of device usage, there will be an annual subscription fee.

Function Display

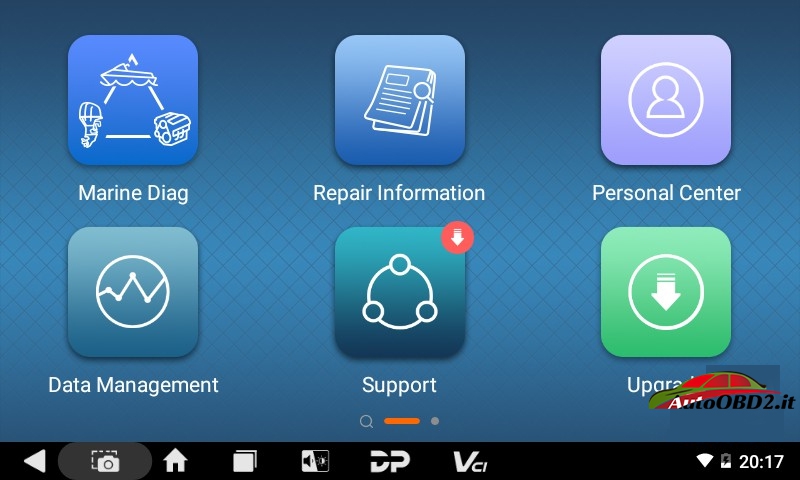

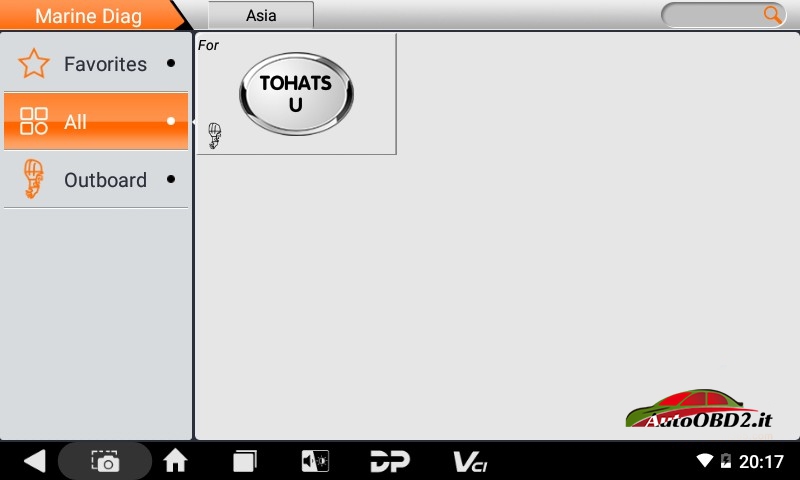

1) Main Page/Brand Supported

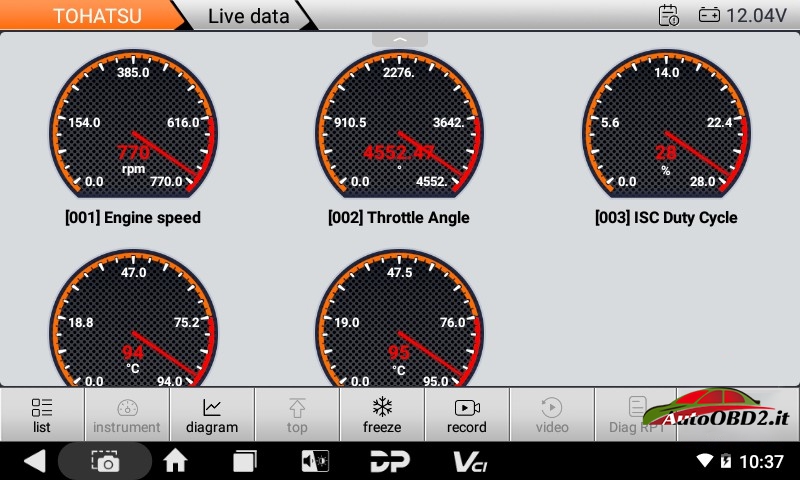

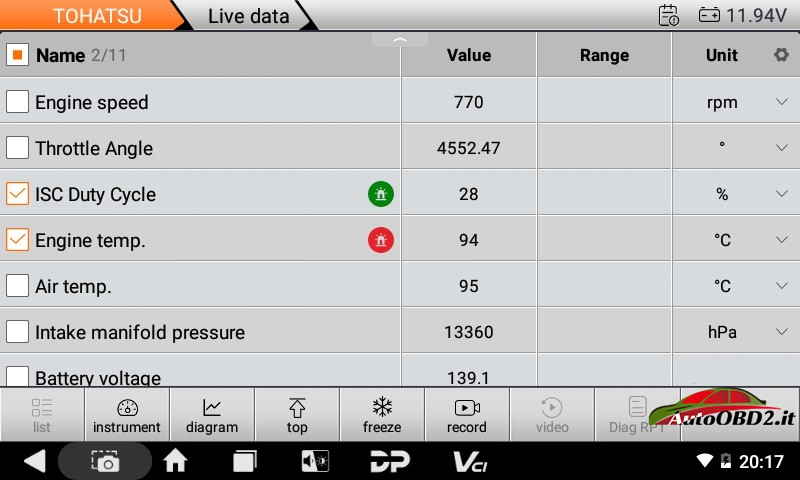

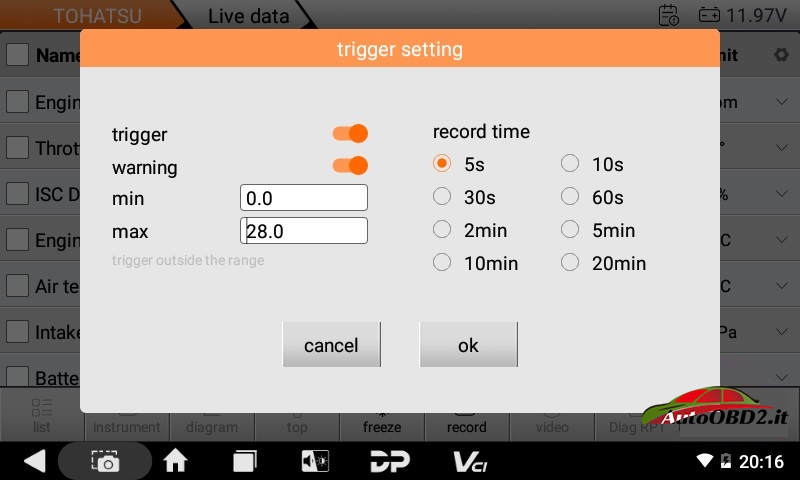

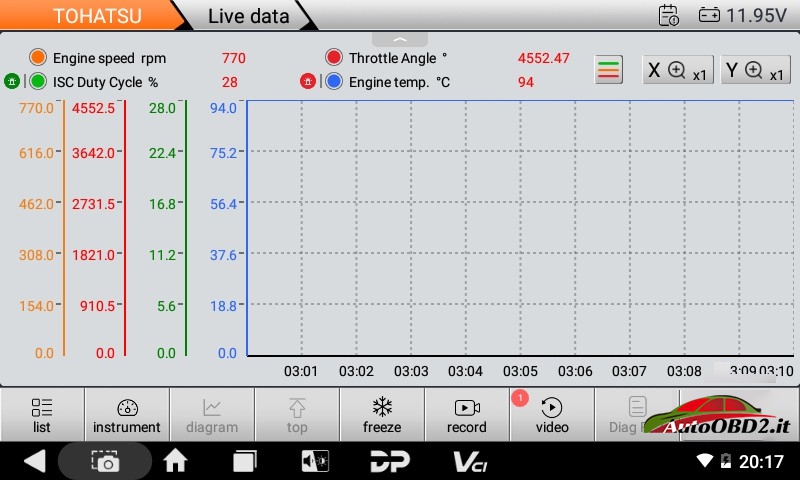

2) Data Flow Text/Waveform Diagram/Instrument Diagram

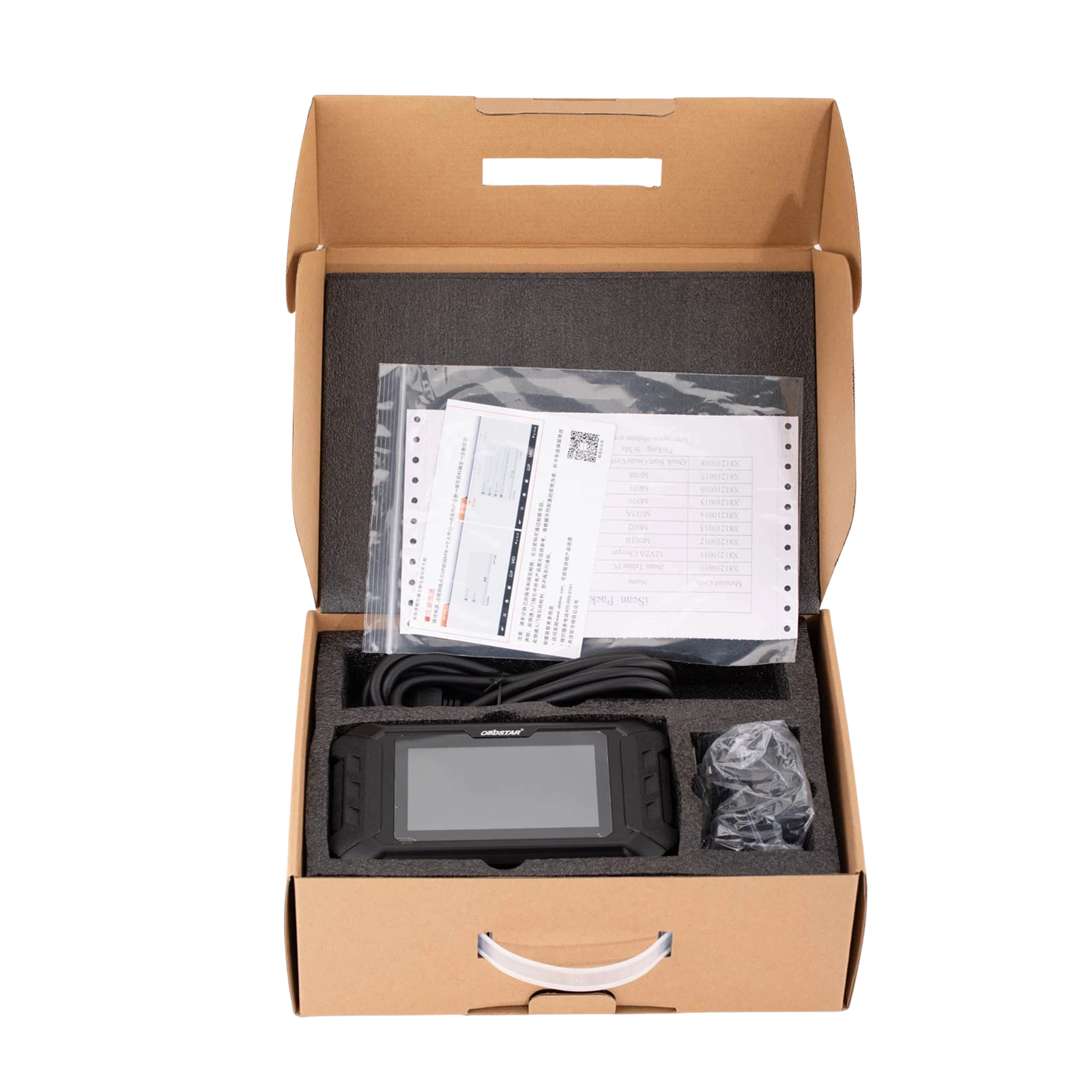

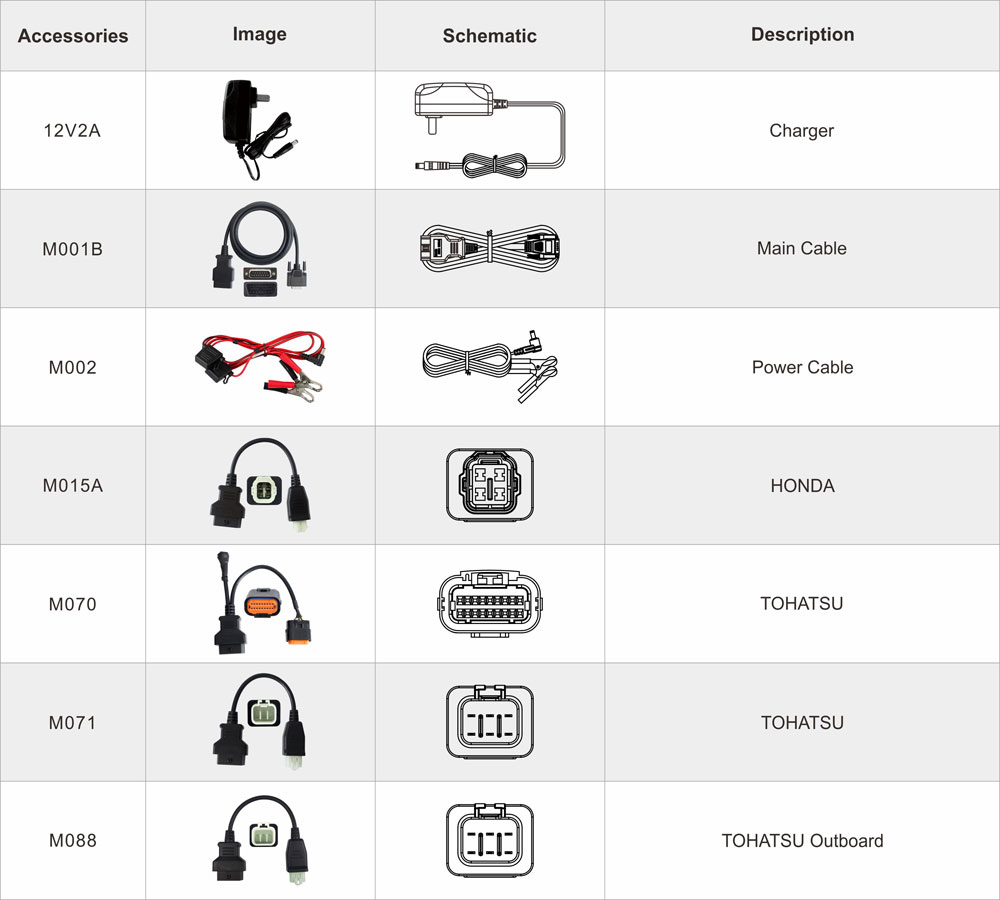

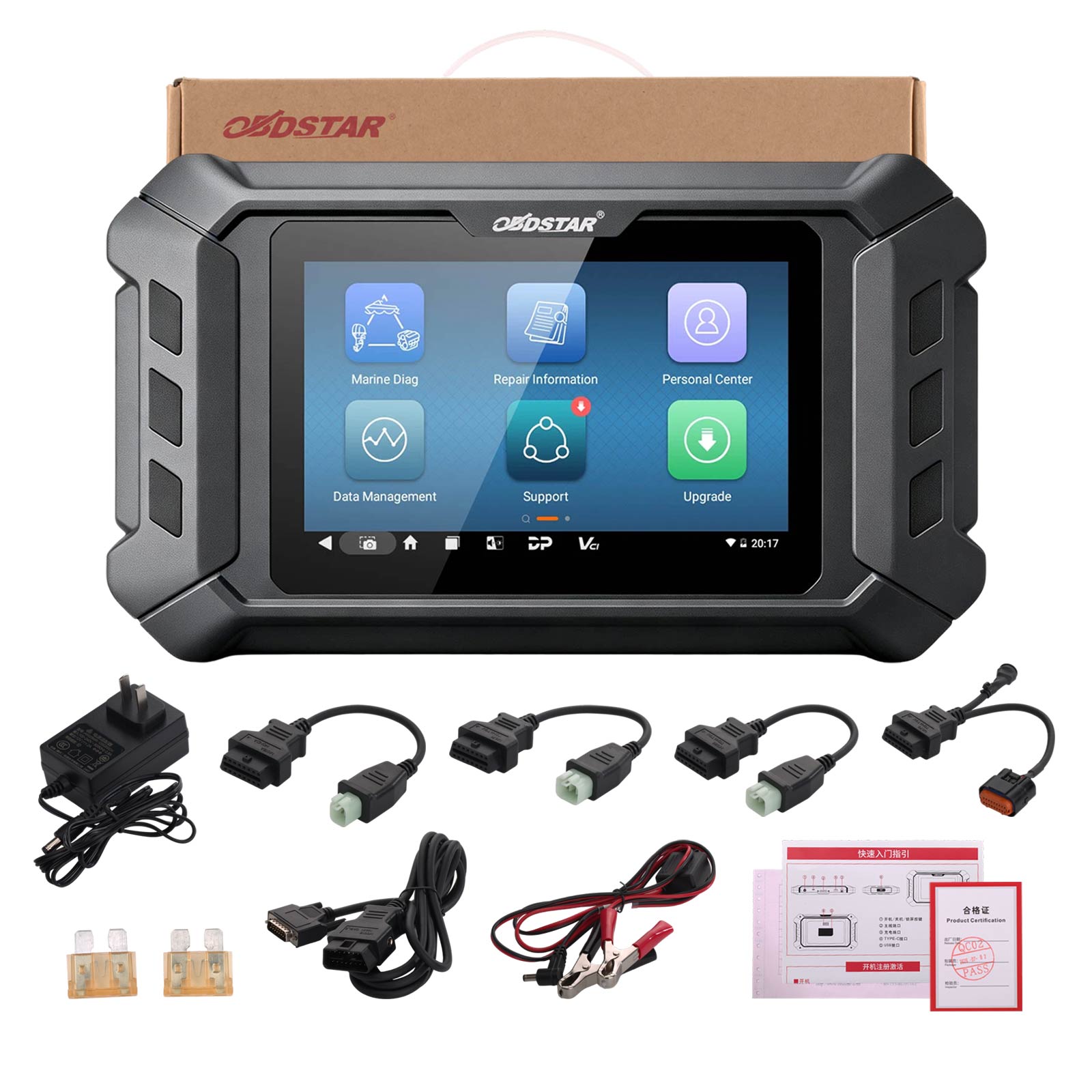

Package List:





---
