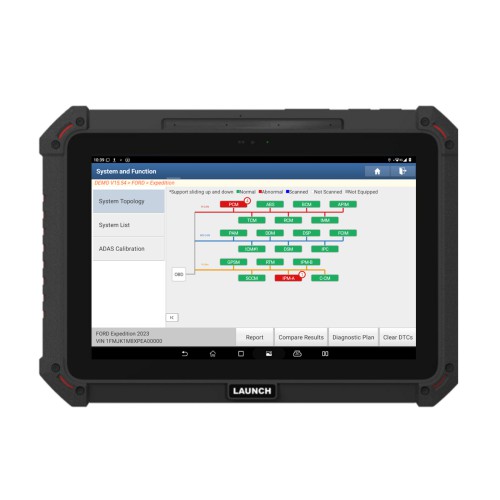

LAUNCH X431 PAD5 ELITE V2 Passenger Car Overseas Online Diagnostic Configuration Supports 40+ Resets, J2534, CANFD & DOIP, AI Voice Diagnostics

Marche: Launch-X431 Serie No.SP510-B Disponibile. Storia 42 vendite.
0 valutazione
|
Prezzo al dettaglio: €1,711.00
EUR 1,711.00 USD 1,899.21 GBP 1,483.78
AutoOBD2 15 Anniversario :
Anniversario Il prezzo più basso,clica qui per acquistare!

X431 PRO Elite/X431 V/V+/PRO TT/PRO5/PAD VII con ottimo prezzo,EU spedizione no tasse!
Auto 6% sconto !! Fino al 7Set.
VIP Prezzo Contattarci Whatsapp: +86 18580434781
Spedizione:
Spedizione Gratuita Servizio di Trasporto EspressoTempo di Consegna: 8-12 giorni lavorativi.I dettagli »
Peso:
10.0KG
Pacchetto:
43.5cm*37.2cm*30.5cm ( Inch: 17.13*14.65*12.01 )
Ritorno:
Rimborso entro 30 giorni, il compratore paga il trasporto di ritorno. I dettagli»

Descrizione del prodotto

LAUNCH X431 PAD5 ELITE V2 è un prodotto della serie PAD di nuova generazione basato sul sistema operativo Android 15.0. È dotato di un processore octa-core ad alte prestazioni, 8 GB di RAM e 128 GB di ROM per un'ampia capacità di archiviazione, oltre a una batteria ad alta capacità, garantendo prestazioni più rapide, stabili e durature.

LAUNCH X431 PAD5 ELITE V2 Passenger Car Overseas Online Diagnostic Tool


Product Introduction:

LAUNCH X431 PAD5 ELITE V2 is a new-generation PAD series product built on the Android 15.0 operating system. It features an octa-core high-performance processor, 8GB RAM and 128GB ROM for ample storage, and a high-capacity battery, delivering faster, more stable, and longer-lasting performance.

It covers over 98% of vehicles on the market and supports full-system fault diagnosis, including functions such as reading/clearing trouble codes, reading data streams, special functions, actuation tests, coding, matching, and programming.

It is equipped with the latest Smartlink V4 WiFi diagnostic connector, which supports J2534, RP1210, CANFD, and DOIP protocols.

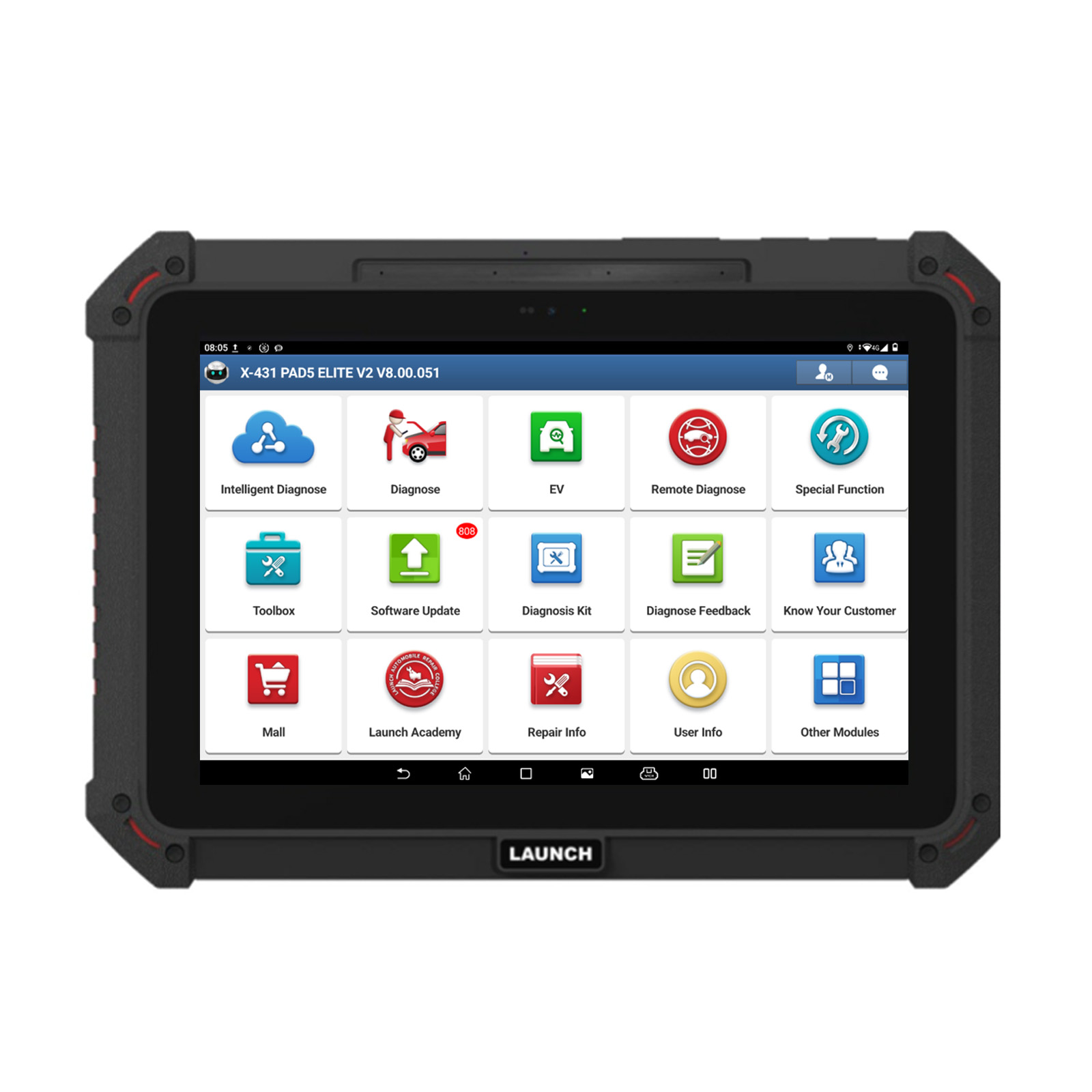

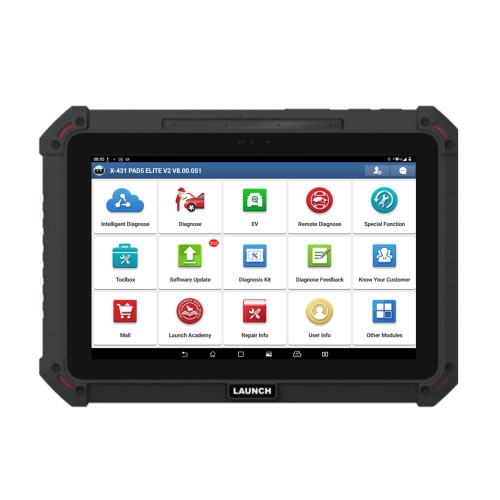

The homepage features the following functions: Intelligent Diagnose, Diagnose(traditional ), EV (Electric Vehicle Diagnosis), Remote Diagnose, Special Functions, Toolbox (with expansion modules),  Software Update, Diagnosis Kit, Diagnose Feedback, Know Your Customer, Mall, LAUNCH Academy Repair Info, User Info, and Other Modules.



Compared to the LAUNCH X431 PAD 5 ELITE, the new configuration changes are as follows:

1. Android 10 → Android 15: OS upgrade for a more advanced system experience.
2. CPU 4×1.5GHz + 4×2.0GHz → 2×2.2GHz + 6×2.0GHz: Enhanced processing power with a stronger chipset, delivering significantly improved computing performance.
3. RAM 4GB → 8GB: Doubled memory capacity, delivering a generational leap in multitasking performance.
4. 3.8V @ 9360 mAh, 35.56Wh → 7.6V @ 7000 mAh, 53.2Wh (equivalent to 3.8V @ 14000 mAh): Provides approximately 13 hours of battery life (tested under maximum screen brightness; for reference only, actual performance may vary depending on usage).
5. 45W fast charging support: Shortened charging time with nearly 40% faster charging speed; a full charge takes about 2 hours (internal test data; for reference only, actual results may vary).
6. Added LAUNCH-branded charging breathing light: Charging status is now clearly visible at a glance.
7. Added "X" shortcut key: Customizable for one-touch access to Voice Diagnosis, Smart Diagnosis, X-431 FIX, and other functions.
8. Supports USB-to-HDMI cable for screen mirroring, providing more stable projection performance (USB-to-HDMI cable sold separately).
9. Equipped with 4 linear microphones and a 3-watt speaker, delivering professional-grade voice diagnosis capabilities.

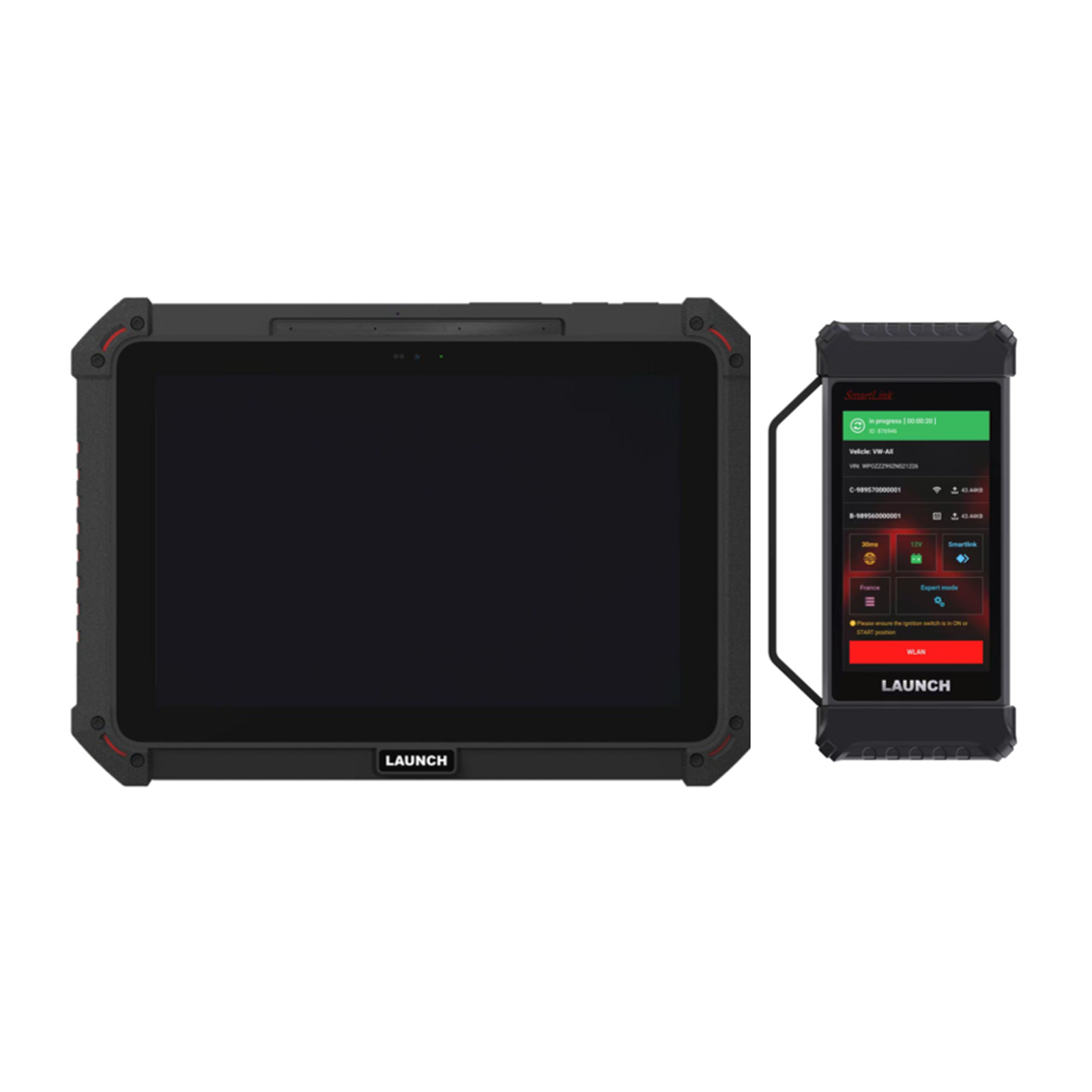

Smartlink V2 connector upgraded to Smartlink V4:

Performance leap: CPU upgraded from single-core to dual-core, with clock speed increased to 1.7 GHz, and RAM expanded from 256 MB to 1 GB for faster processing and response. CAN bus upgraded to 4-channel CAN FD for enhanced communication capabilities.
Refreshed interactive experience: Features a 5-inch 1280×720 touchscreen with a brand-new UI design, significantly improved screen-to-body ratio, and a slimmer, more compact form factor for a better visual and operational experience.
Better connectivity and signal strength: Wi-Fi module upgraded to Wi-Fi 6 protocol, with dual antennas for enhanced signal strength. Diagnostic communication speed tested to improve by 20% (data for reference only).
Practical functional upgrades: Added auto-VIN-read function upon connector power-on; added cooling fan that automatically activates based on core temperature; supports USB power supply, allowing the host to connect to the VCI via USB cable for upgrades.

Product Features:

Intelligent Diagnosis & Traditional Diagnosis
With over 20 years of accumulated expertise in automotive diagnostics, LAUNCH has pioneered the development of Intelligent Diagnosis technology. Through "Intelligent Diagnosis", users can quickly read the vehicle VIN, rapidly access diagnostic sessions, and review historical diagnostic records.
It supports full-system basic diagnostic functions for 97+ vehicle brands worldwide, including reading version information, reading fault codes, clearing fault codes, reading data streams, actuator tests, coding, adaptation, and more. It also enables data stream reading and recording, helping to quickly pinpoint faults.




SmartLink Remote Diagnosis & X-431 Remote Diagnosis

The SmartLink C Remote Diagnostic Dongle is compatible with LAUNCH diagnostic tools, OEM dealer-level equipment, and third-party diagnostic devices for remote diagnostics. It is not constrained by the hardware or software limitations of the workshop-side device, enabling comprehensive diagnosis of various automotive issues.

X-431 Remote Diagnosis is a patented, independently developed remote diagnostic solution. Leveraging web-based remote technology, it facilitates real-time communication between mobile devices/PCs and diagnostic tools for remote vehicle diagnosis, while maintaining minimal network bandwidth and system resource usage.

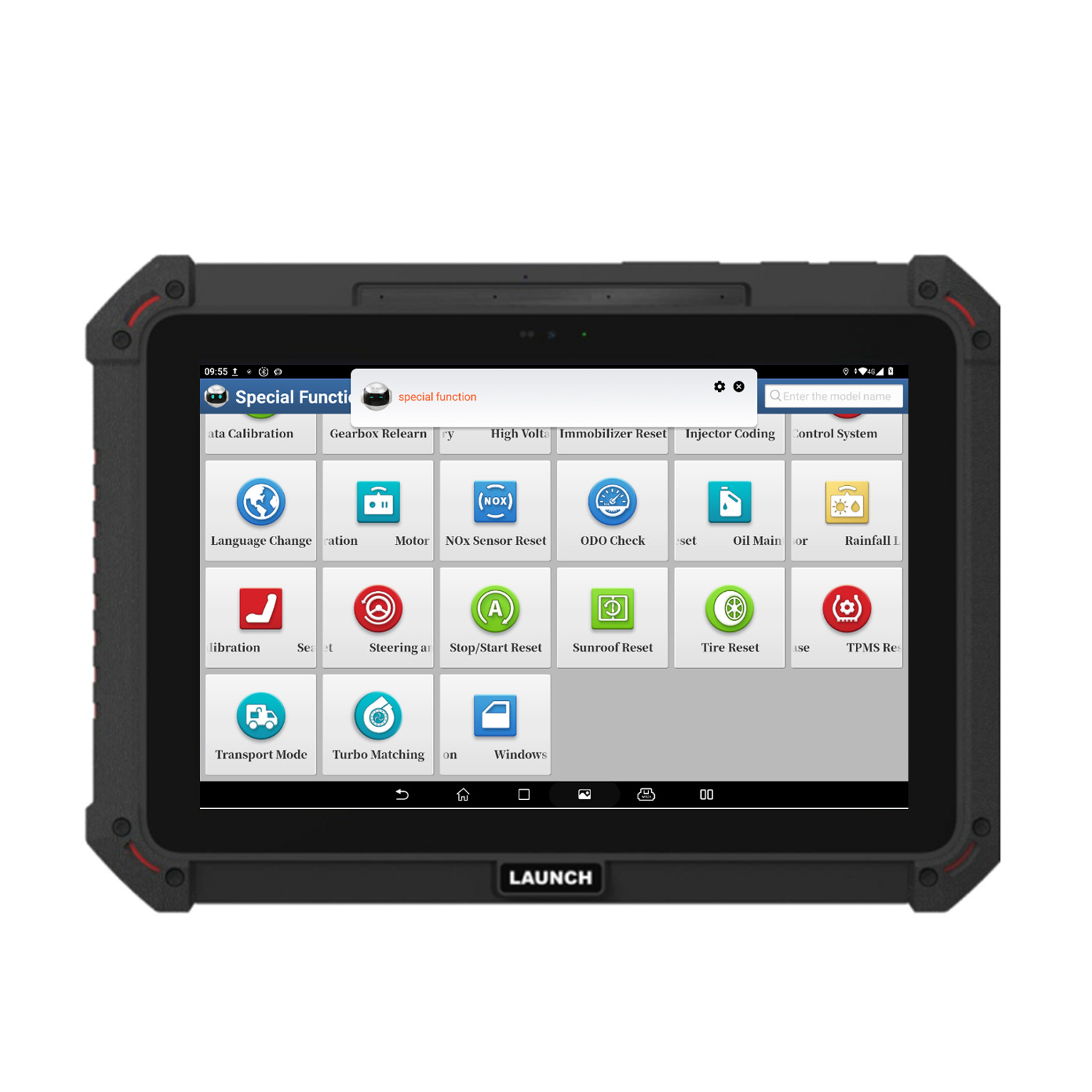

Supports 40+ Special Functions
Supports commonly used special functions for most vehicle models, including 40 special functions such as Oil Service Reset, Throttle Adaptation, Steering Angle Reset, Brake Pad Reset, TPMS Reset, ABS Bleeding, Battery Matching, Gear Learn, Injector Coding, D#P#F Regen, Immobilizer Matching, Immobilizer Programming, and more.



The list of 40 special functions is as follows:

AC System Relearn/Initialization, AdBlue Reset, Adaptive Front Lighting, Air / Fuel reset, ABS Bleeding, Battery Matching, Gearbox Relearn, Brake reset, Clutch Matching, Coolant Bleed, DPF Regen, Codage ECU, EGR Adaption, Engine Power Balance Monitoring, Electric Throttle Relearn, FRM Matching, Gateway Module Data Calibration, Crank Position Sensor Adaptive Learning, Gas Particulate Filter Regeneration, High Voltage Battery, AC System Relearn/Initialization, AdBlue Reset, Adaptive Front Lighting, Air / Fuel reset, ABS Bleeding, Battery Matching, Gearbox Relearn, Brake reset, Clutch Matching, Coolant Bleed, DPF Regen, Codage ECU, EGR Adaption, Engine Power Balance Monitoring, Electric Throttle Relearn, FRM Matching, Gateway Module Data Calibration, Crank Position Sensor Adaptive Learning. Gas Particulate Filter Regeneration, High Voltage Battery

Toolbox
Supports integration with 14+ expansion modules, including TPMS diagnostic tools, ADAS calibration equipment, oscilloscopes, sensors, endoscopes, battery testers, current clamps, insulation testers, immobilizer programmers, key programmers, and more, making diagnostic functions even more powerful.



Diagnosis Kit
Supports a variety of utility tools to assist with repairs, including Vehicle Coverage, CAN BUS Pin Detect,  CANScope, Firmware Fix, Data Stream Sample, Battery Voltage, Flash Data Management, RESET MSVIN, Diagnostic History, Vehicle QR and Appearance Inspection.



Diagnose Feedback
If users encounter vehicle model–specific issues or functional anomalies under special circumstances during use, they can submit feedback to LAUNCH through the Diagnostic Feedback feature. Dedicated technical personnel will then track and address the issues in a timely manner.



Know Your Customer
Helps businesses with opportunity analysis, customer management, and diagnostic statistics.



Mall
Software package purchases (including Immobilizer, Motorcycle, New Energy Vehicle, and Commercial Vehicle packages), individual software purchases, configuration renewals, gateway unlock permissions, and more can all be completed through the Mall.



SGW Gateway
Supports purchasing unlock authorization for Fiat, for Chrysler, for Renault, and for Mercedes-Benz SGW gateways through the Mall.

LAUNCH Academy
Supports online automotive repair training courses and provides access to a vast database of original factory repair information, including vehicle technical manuals, repair cases, DTC lookup, and more.


Product Highlights:

AI Voice Diagnostics
Coming soon & Free for a limited time
Voice interaction enables recognition of the user's functional intent, providing quick direct access to diagnostic function menus.
Can't find a feature in the APP? Want to launch a specific function quickly? The intelligent voice assistant reduces the hassle of navigating through menus and gets you to your destination faster.



AI Upgrade – Coming Soon & Free for a Limited Time

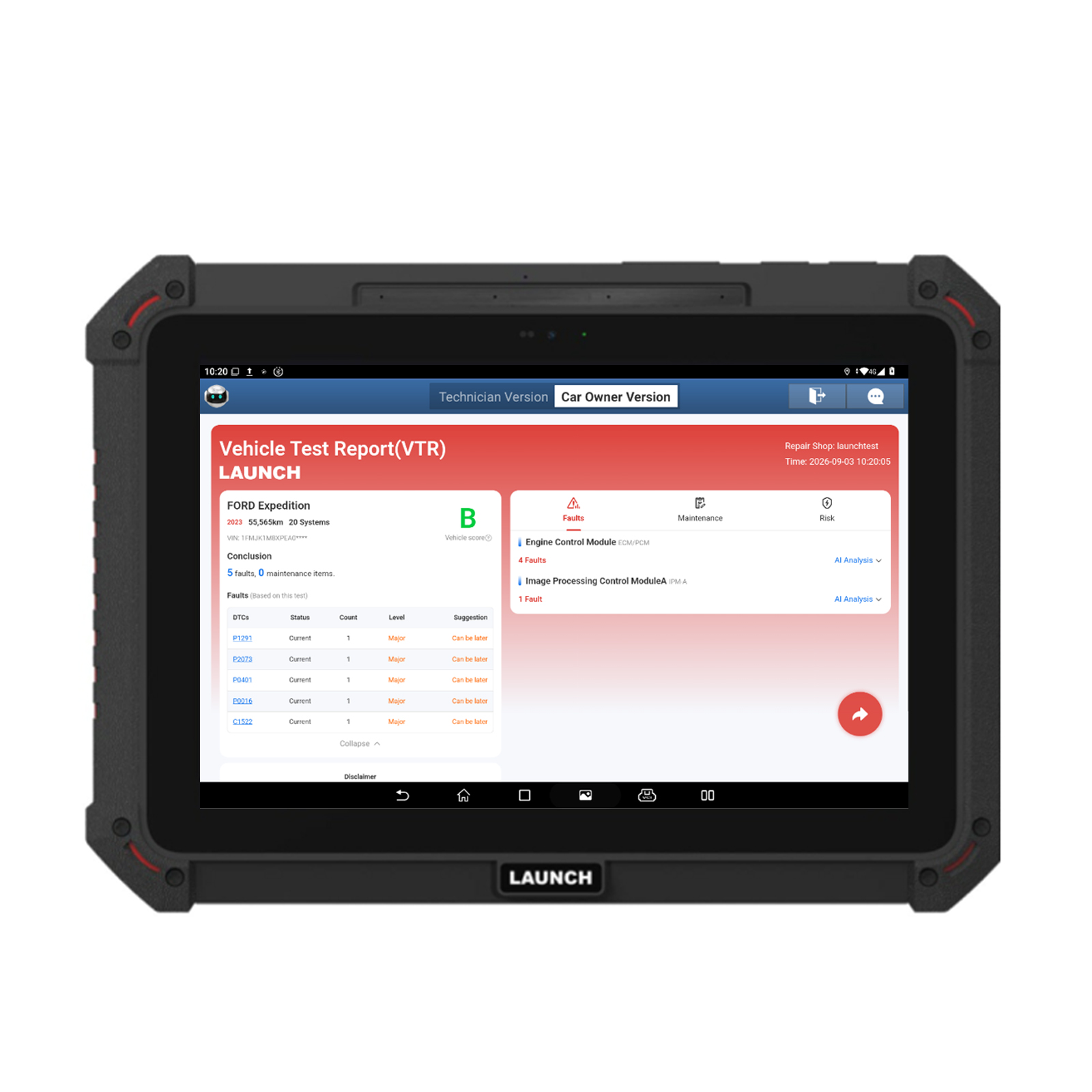

Smart Diagnosis (AI)  Vehicle Test Report (VTR)
Powered by the LAUNCH AI large model, this upgraded feature automatically pairs the connector, retrieves the vehicle VIN, and runs a comprehensive full-system scan to generate a Vehicle Test Report (VTR). The VTR further enables AI-driven analysis of fault codes for deeper insights.

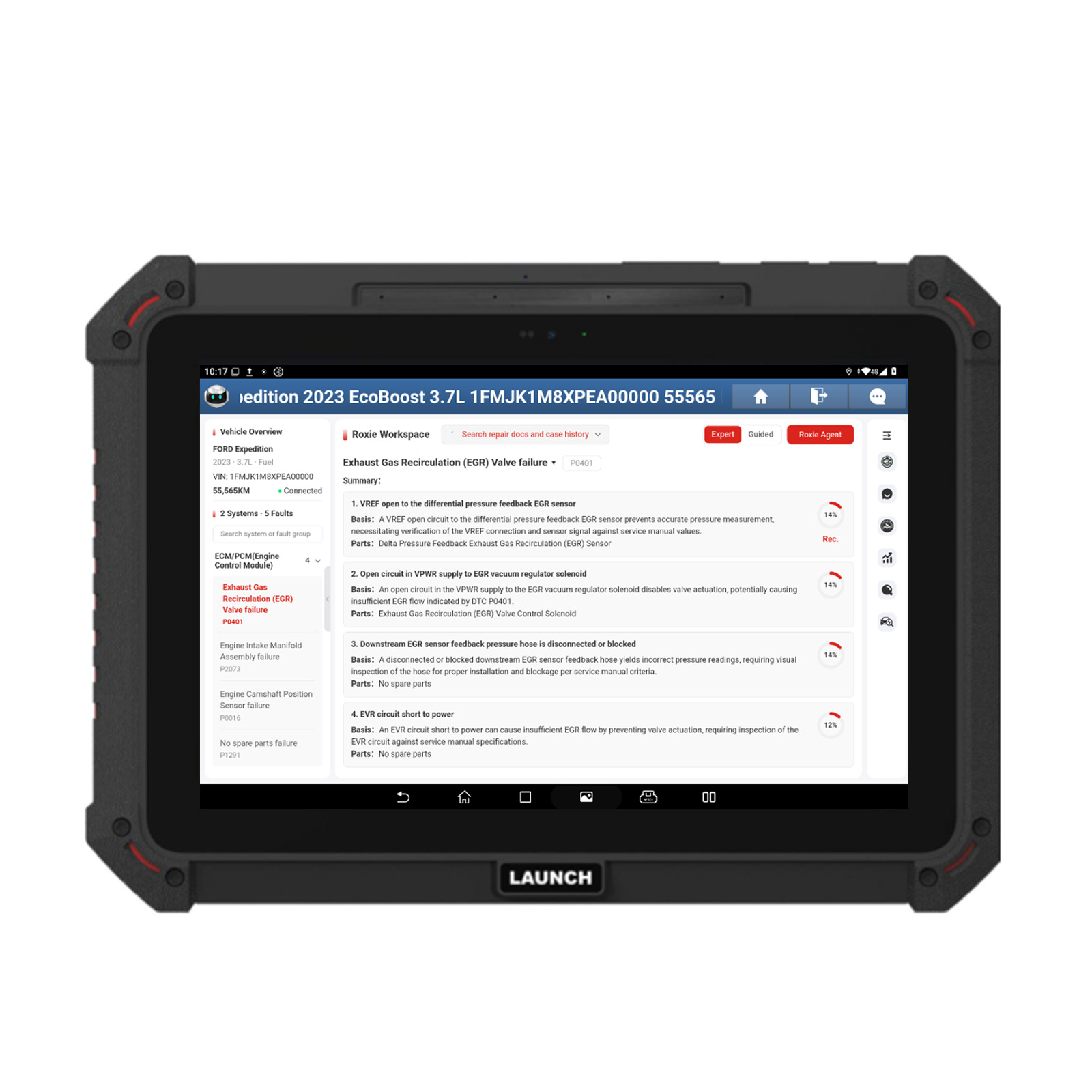

Smart Diagnosis (AI) – Roxie Workspace / AI Workbench
Once fault codes are scanned, the AI Workbench provides a suite of intelligent tools, including smart DTC grouping, root cause analysis, and step-by-step troubleshooting guidance along with repair solutions – all powered by AI analytics.

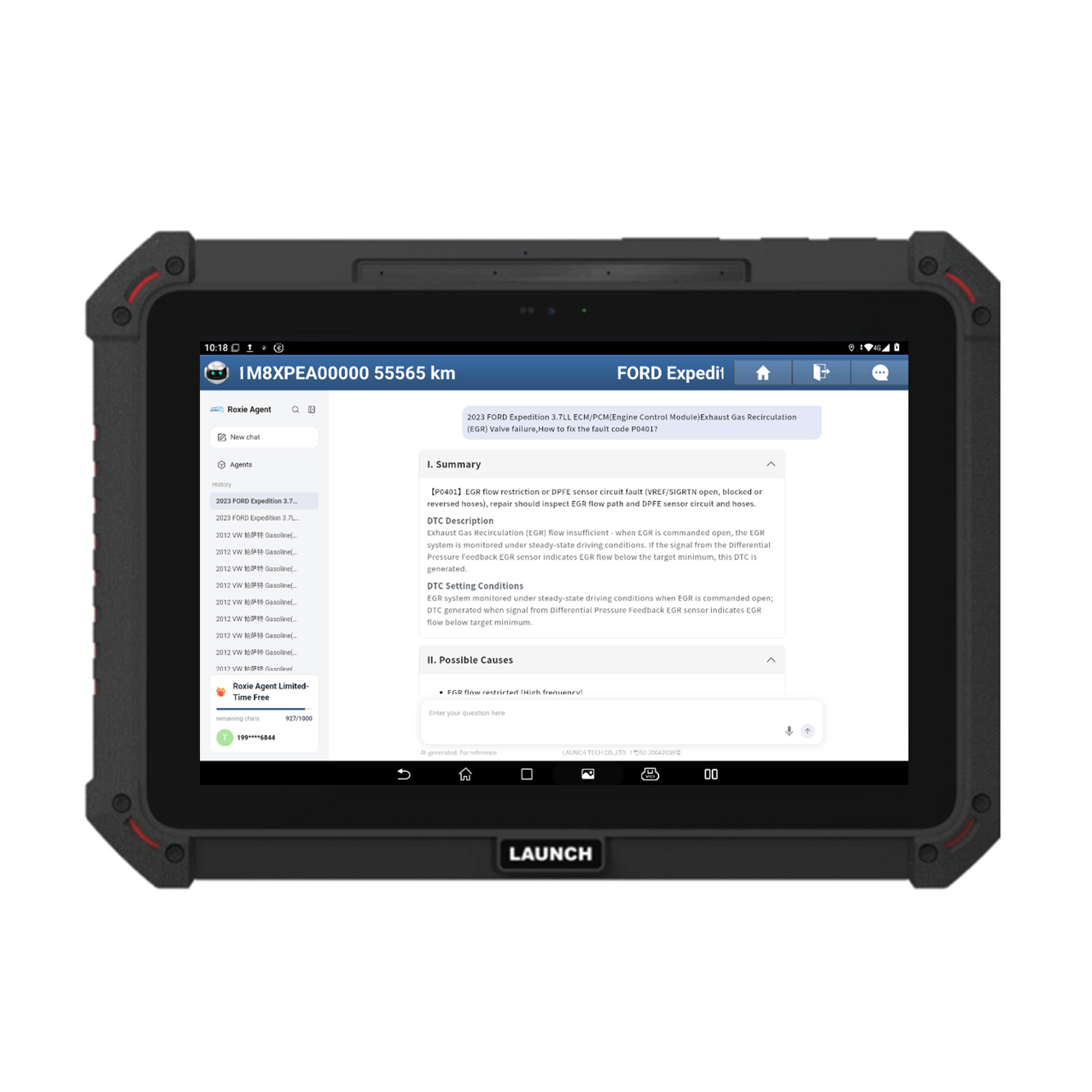

Roxie Agent
Helps repair technicians diagnose vehicle faults, answer technical repair questions, provide maintenance recommendations, and guide the use of diagnostic equipment.


Appearance Inspection
Leveraging image analysis technology, simply take photos and upload them during the routine vehicle inspection process. The system automatically identifies exterior body damage such as scratches, dents, scuffs, and more, and generates a corresponding report automatically.

Diagnostic Function

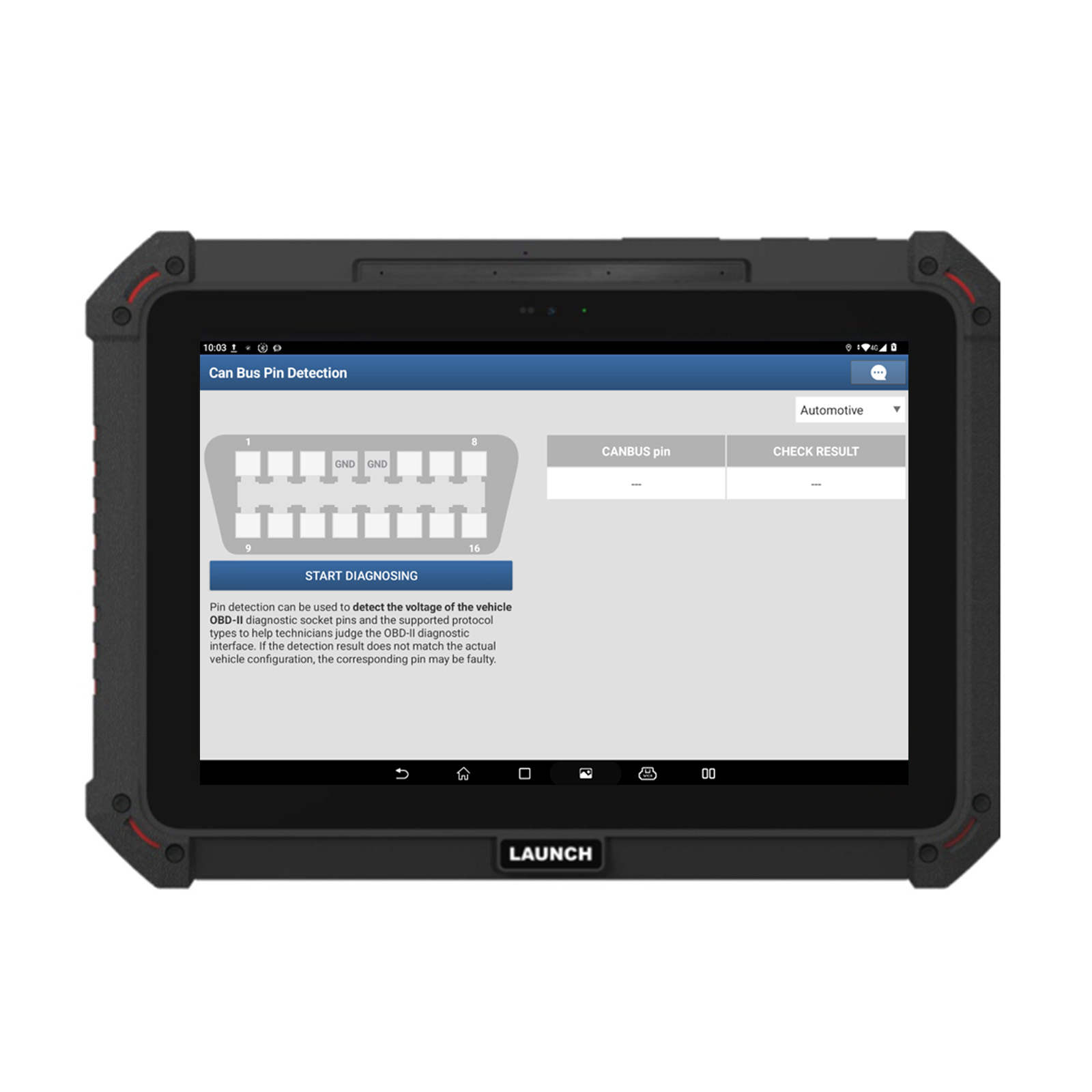

Can Bus Pin Detection
Detects the voltage of the OBD-II diagnostic connector pins and the supported protocol types, assisting in assessing the OBD-II diagnostic interface status.

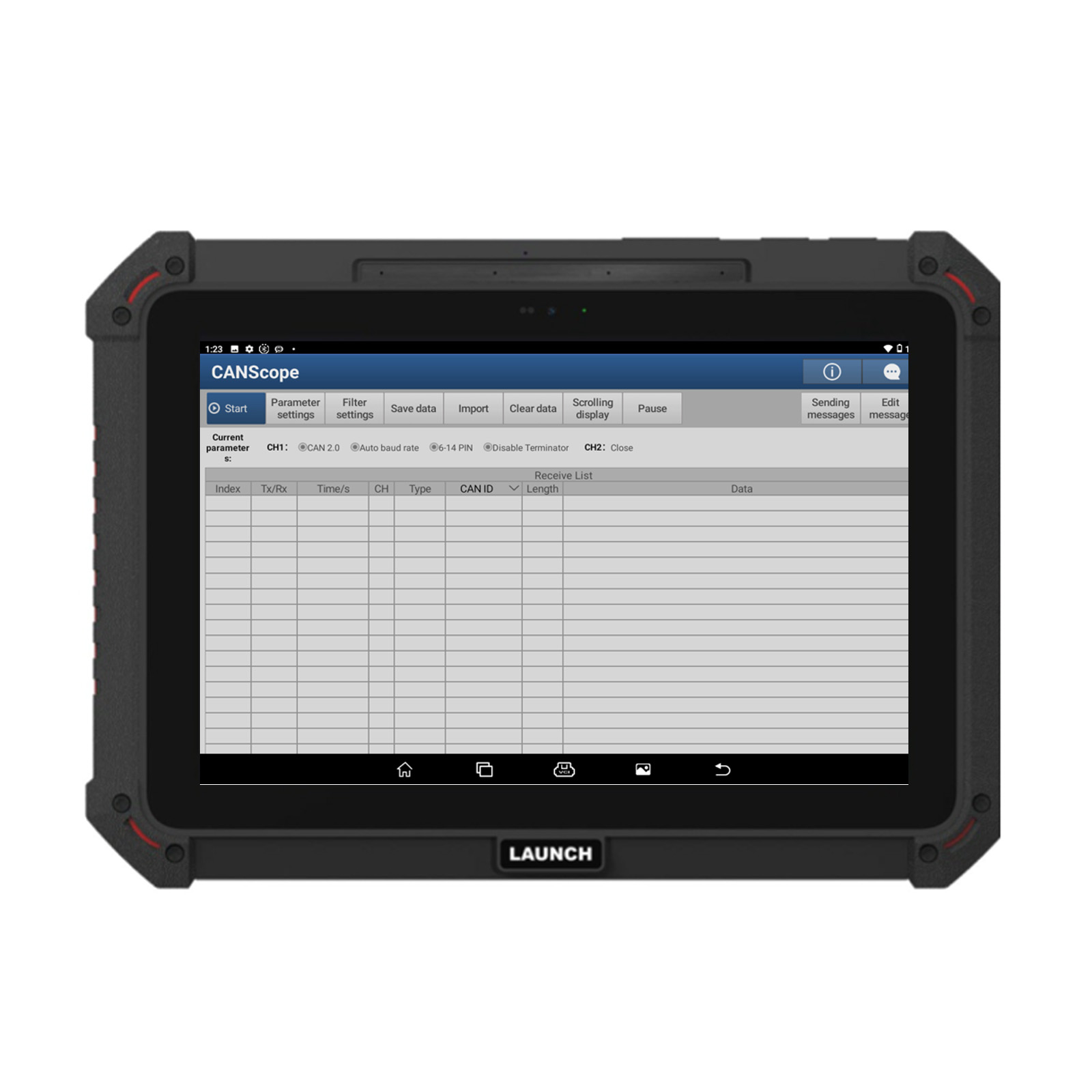

CAN Analysis
Visually monitors vehicle CAN bus data, checks for issues within the CAN data, and assists in analyzing the root causes of faults.


Diagnostic Plan
Also known as fault-guided diagnostics, provides step-by-step prompts to assist in troubleshooting and fault detection.

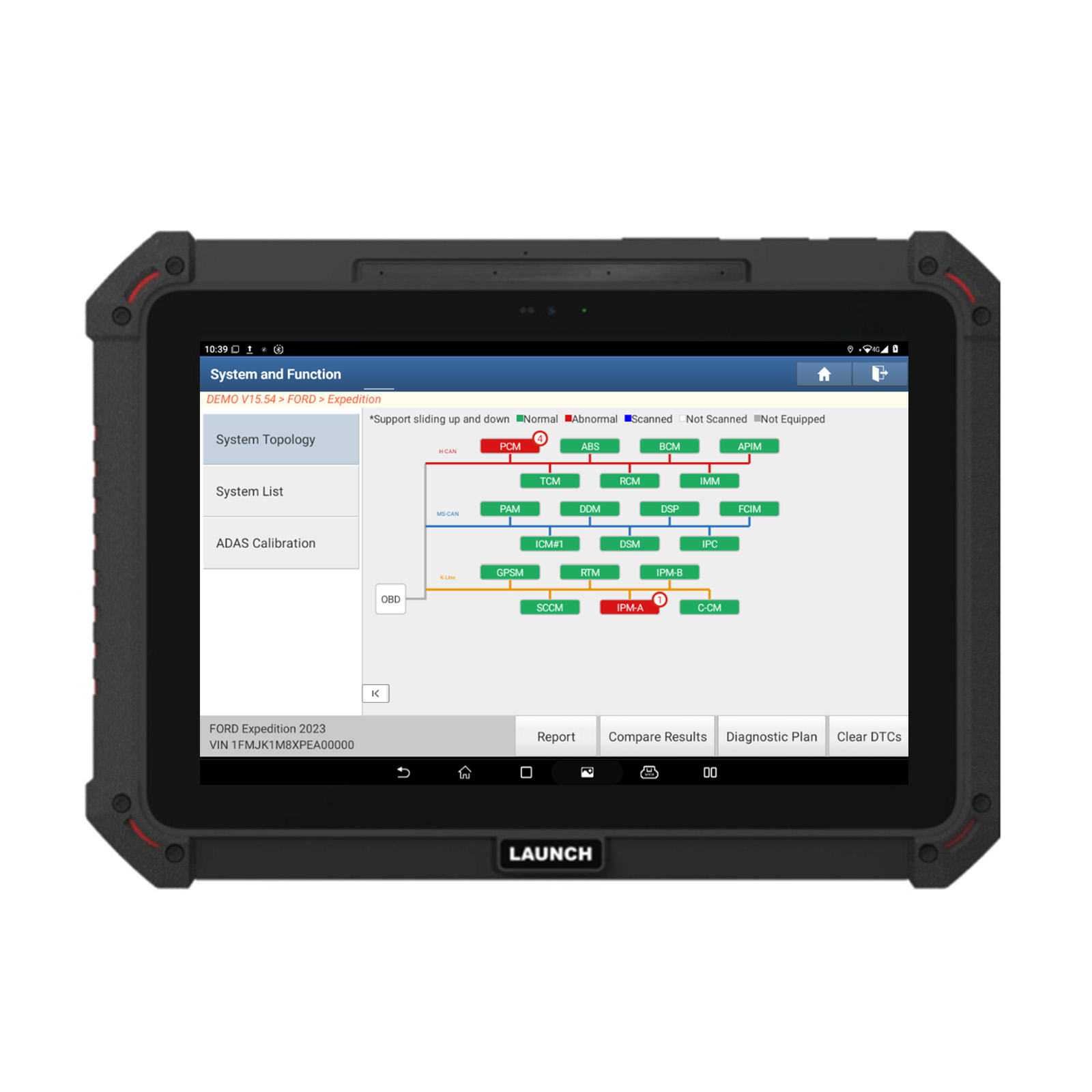

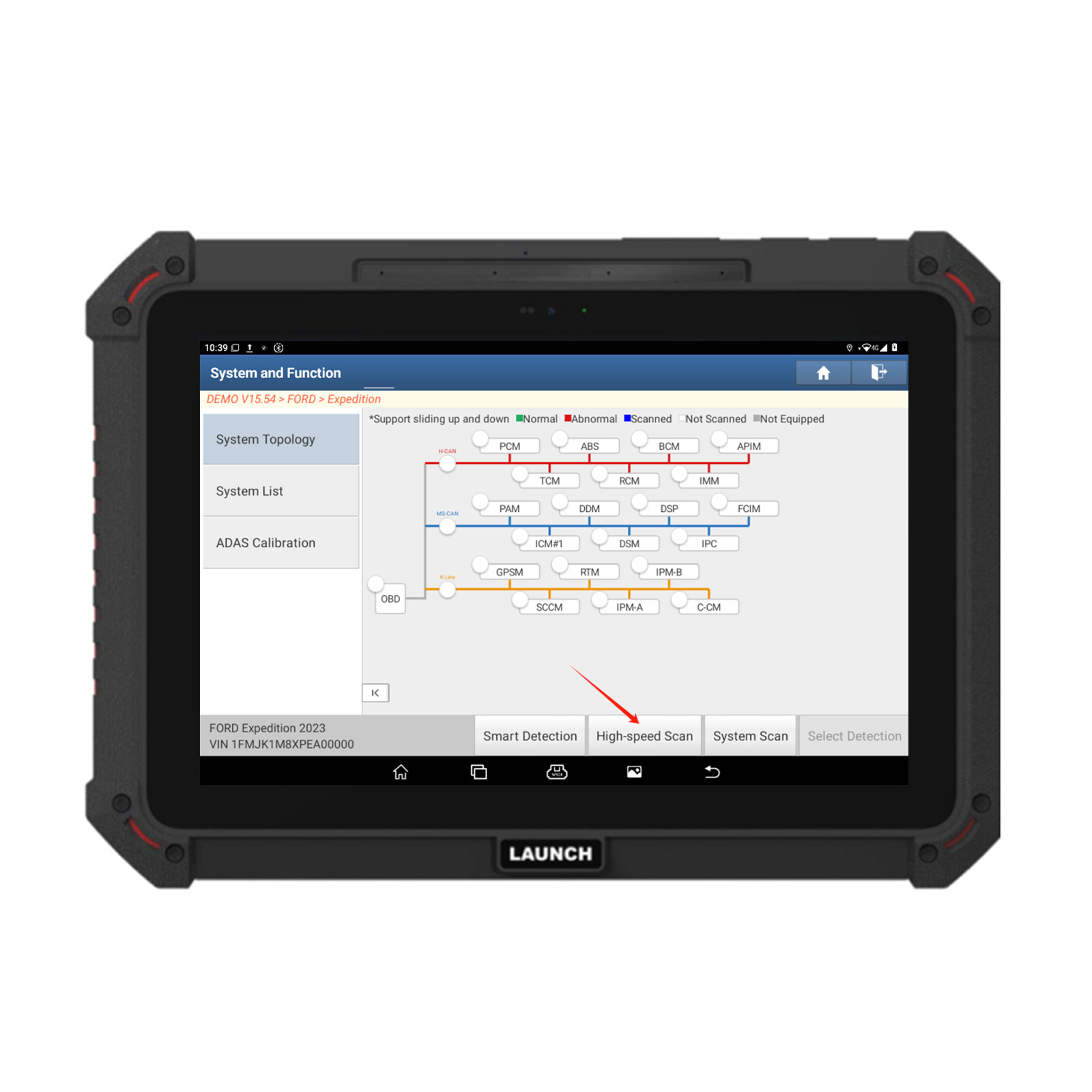

Topology Diagram
OEM-grade vehicle diagnostics that creates a visual network topology, graphically illustrating the vehicle's ECU network structure. Communication status and fault codes are displayed at a glance, allowing quick troubleshooting of communication problems.



High-speed Scan
Multi-channel parallel scanning enables quicker diagnostics and repairs. Note: On supported vehicle models, the Fast Scan function is now incorporated into Smart Detection—simply click Smart Detection to initiate a High-speed Scan.



VW/Audi Guided Functions
Features built-in standardized repair procedures that consolidate discrete operations—including security access, live data, coding, adaptation, basic settings, and fault diagnosis—into a fully automated, integrated workflow. The software autonomously validates preconditions, handles security login, and executes coding, adaptation, and configuration tasks. This prevents common manual mistakes like skipped steps, incorrect parameter entry, or out-of-sequence operations that often lead to function failure.



Data Stream
Supports one-click reading of data streams across all systems
Supports graphical visualization of data streams and combined data stream analysis
Supports data stream sample recording, data stream marking, and data stream playback

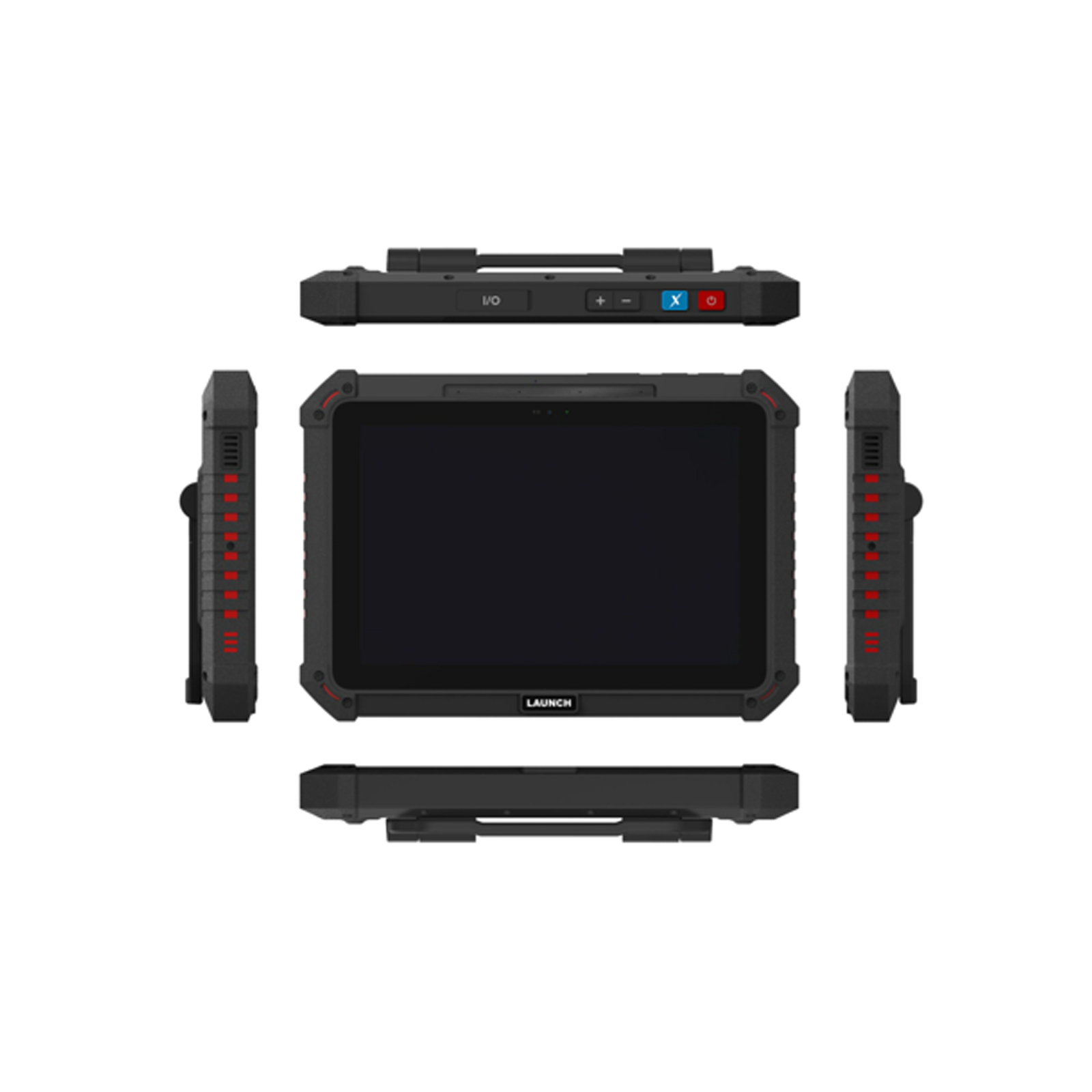

Product Specifications Comparison Between X-431 PAD5 ELITE V2 and X-431 PAD5 ELITE

Model X-431 PAD5 ELITE V2 X-431 PAD5 ELITE
operating system Android 15 Android 11
processor Octa-core(2×2.2GHz+6×2.0GHz) Octa-core(4×1.5GHz+4×2.0GHz)
RAM 8GB 4GB
ROM 256GB 256GB
screen 10.1 10.1
resolution 1920x1200 1920x1200
battery 7.6V @ 7000mAh, 53.2Wh, equivalent to 3.8V @ 14000mAh (supports 45W fast charging). 3.8V @9360 mAh,35.56Wh
Wi-Fi 2.4GHz&/5GHz dual WIFI, supports WIFI6 2.4GHz&/5GHz dual frequency
BT Bluetooth 5.1 dual-mode Bluetooth 4.2 dual-mode
I/O Type C , Type A Type C , Type A，Micro SD
camera Front camera: 8 MP,
Rear camera: 13 MP		 Front camera: 8 MP,
Rear camera: 13 MP
buttons Power, Volume up/down, and X Power, Volume up/down,
IP rating IP65 IP65
size 287.2*202.2*45.6mm 320*211*46mm

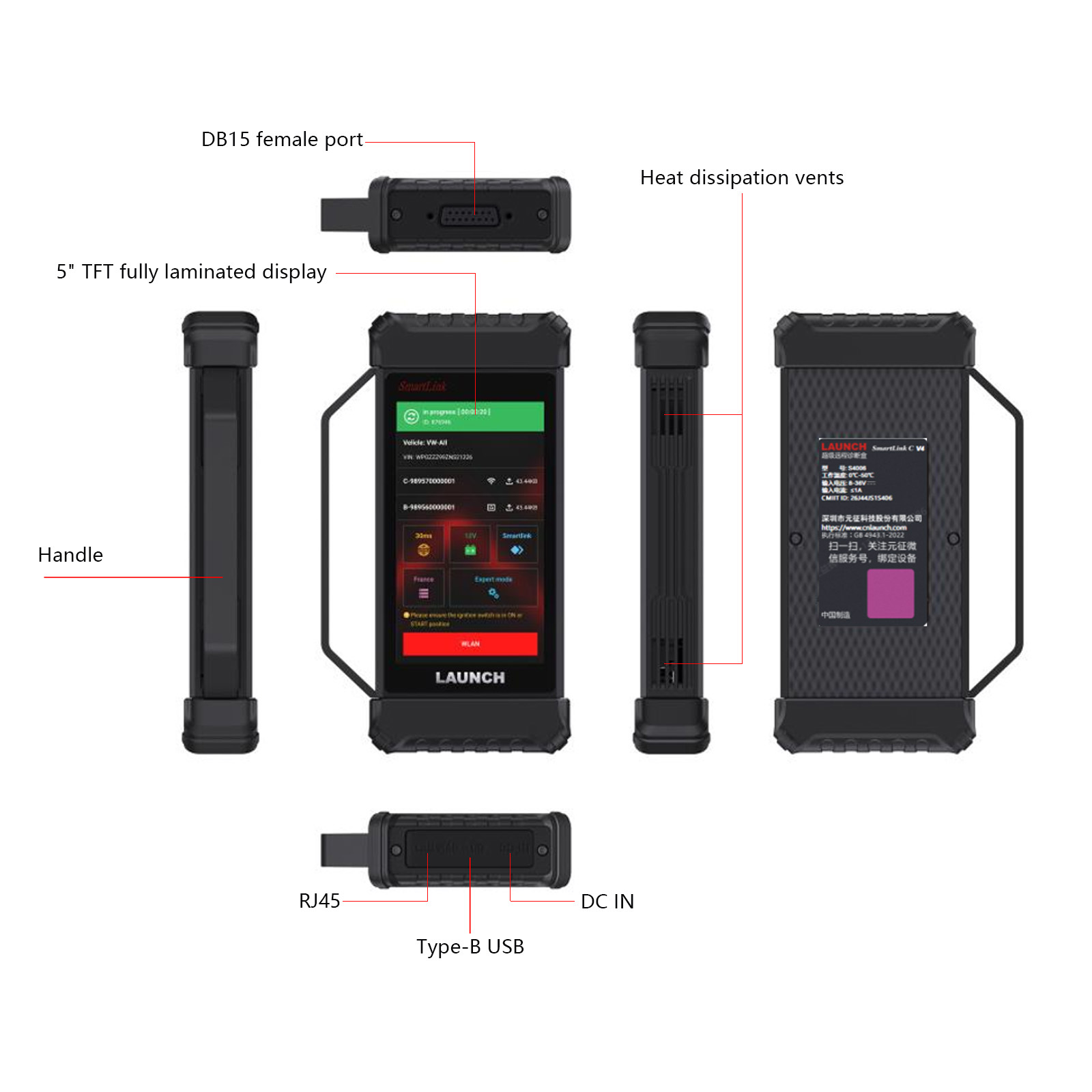

Product Specifications Comparison Between SmartLink C V2 and SmartLink C V4

  SmartLink C V2 SmartLink C V4
CPU Single-core 528MHz dual-core 1.7G
Working Voltage DC 9V ~ 36V  DC 8V ~ 36V
Screen 3.95 inches, 320*480 5 inches, 1280*720
RAM 256M 1G
Storage 8G 8G
Communication Local Diagnosis: WIFI/BT/USB
SmartLink Remote Diagnosis: Wi‑Fi / Wired		 Local Diagnosis: WIFI/BT/USB
SmartLink Remote Diagnosis: Wi‑Fi / Wired
WIFI WIFI 5 WIFI 6
Bluetooth BT4.2 BT5.0
I/O DB15 male, USB-B, RJ45, DC IN DB15 female, USB-B, RJ45, DC IN
Working Tenperature 0℃ ~ 50℃ 0℃ ~ 50℃
Size 200*47*110mm 187.6*32.8*106mm
Weight 0.55kg 0.35kg


Package includes:

1pc x Diagnostic Host
1pc x Diagnostic VCI
1pc x Diagnostic cable
1pc x Power adapter body
1pc x US standard adapter plug
1pc x EU standard adapter plug
1pc x UK standard adapter plug
1pc x Password envelope
1pc x Type A to Type B data cable
1pc x Type A to Type C data cable
1pc x Crossover cable
1pc x Multilingual quick start guide
1pc x User manual
1pc x GPSR safety warning
1pc x Non-16 pin adaptor kit
