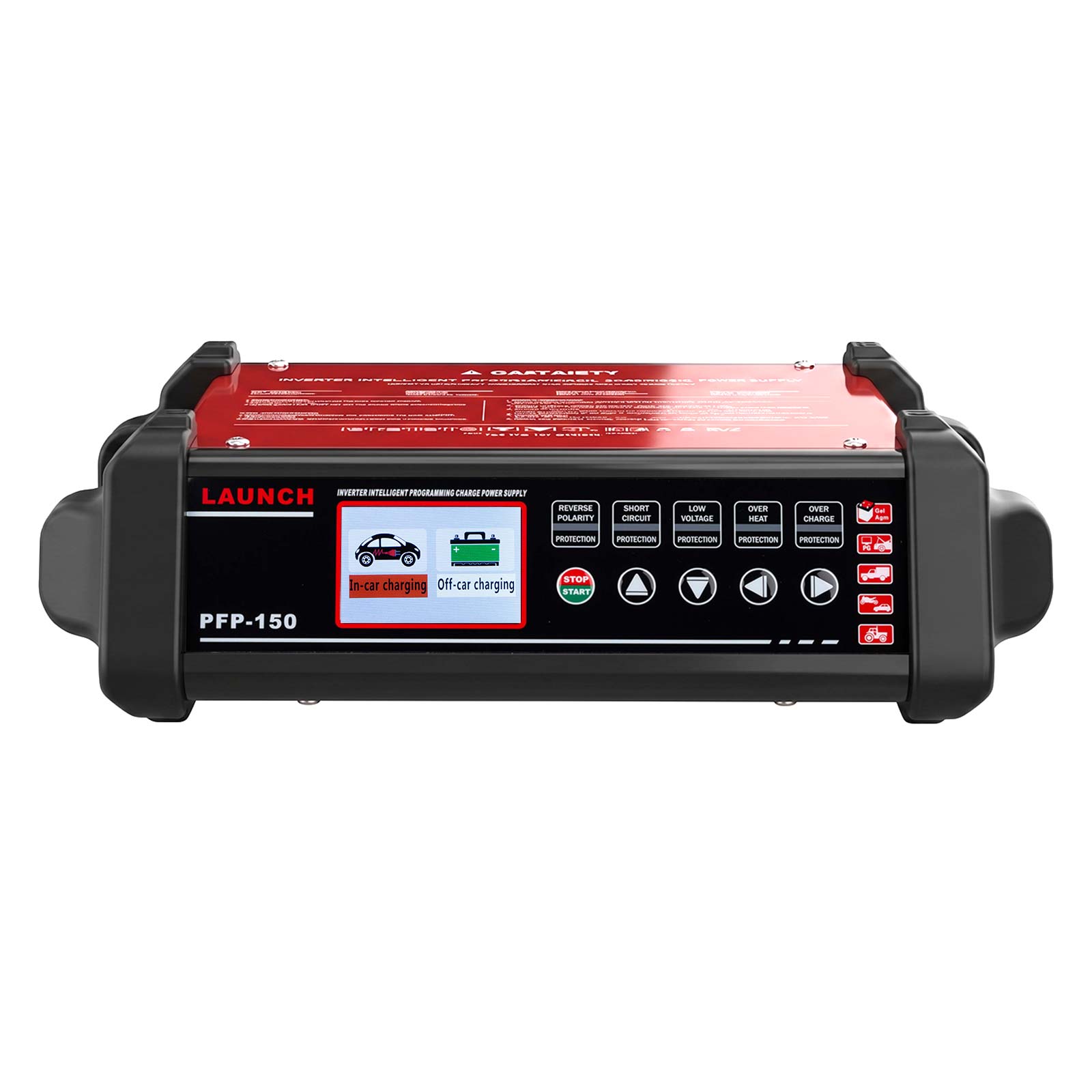

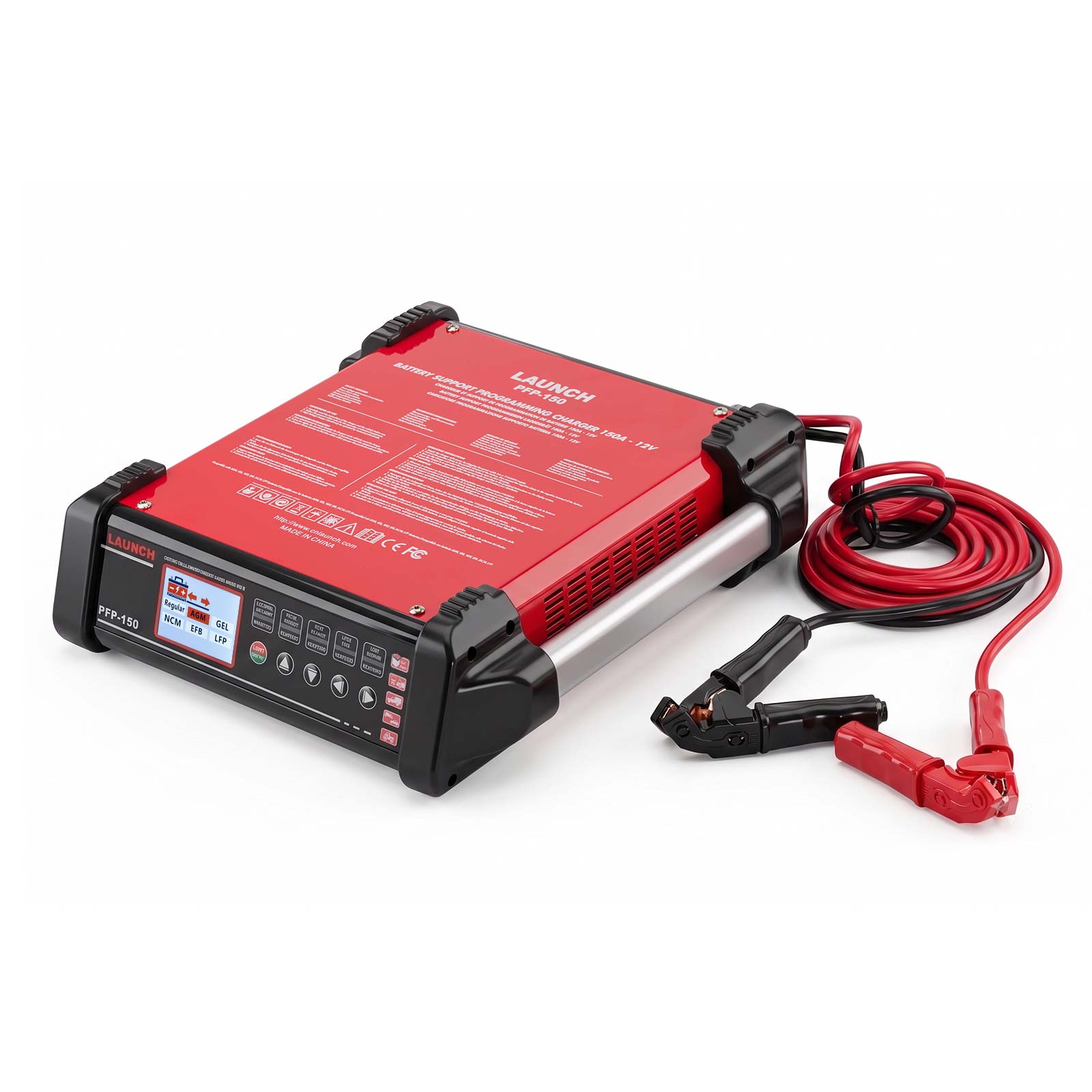

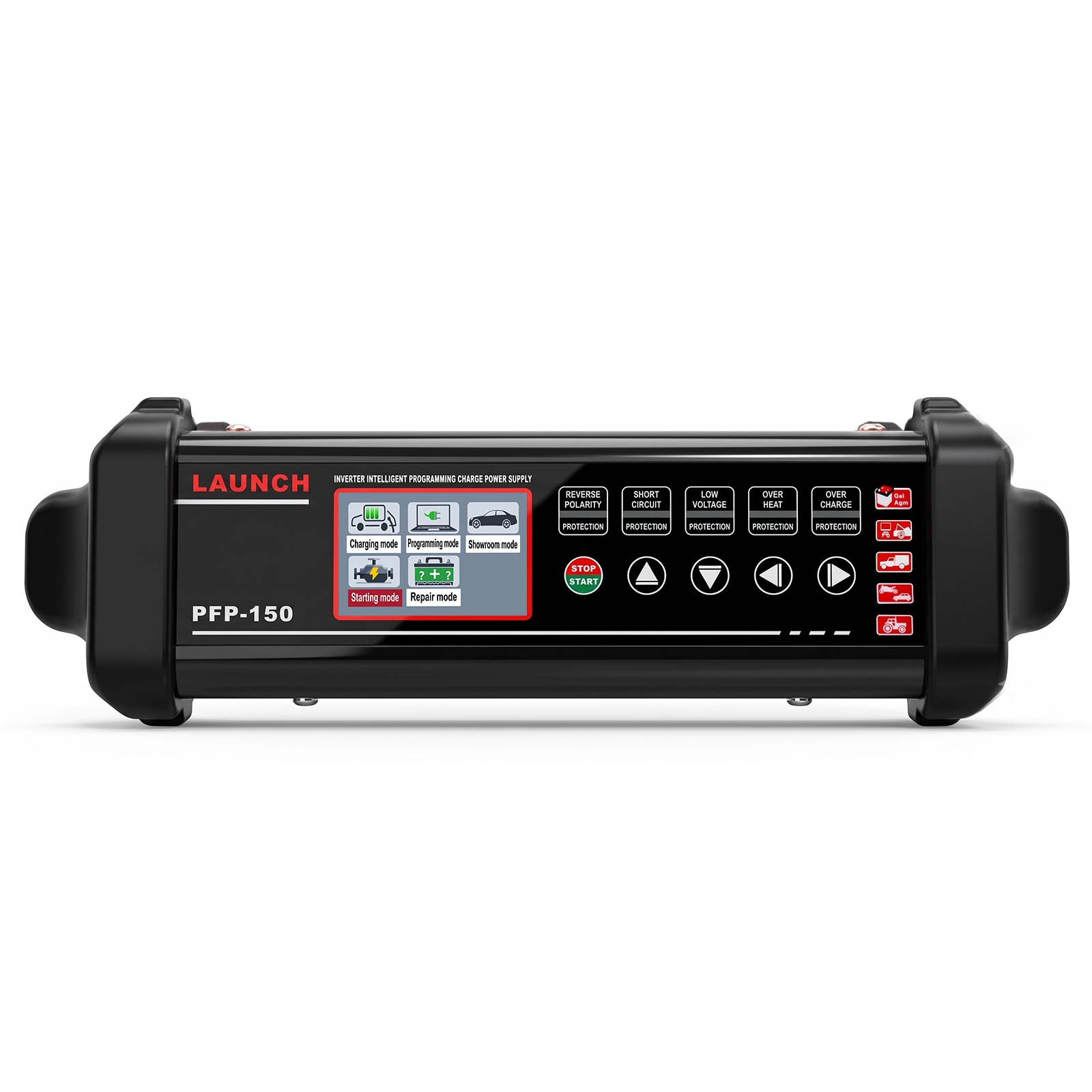

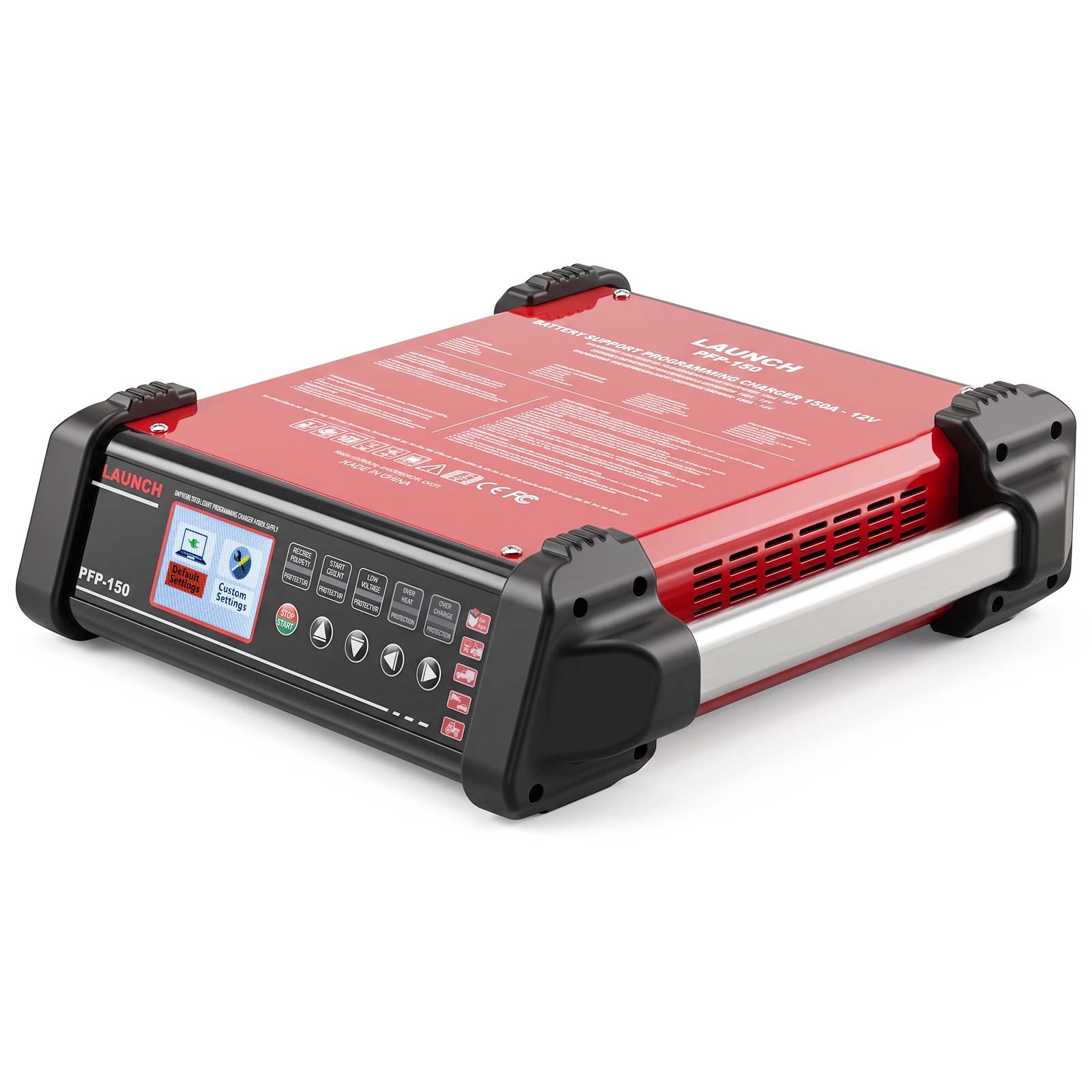

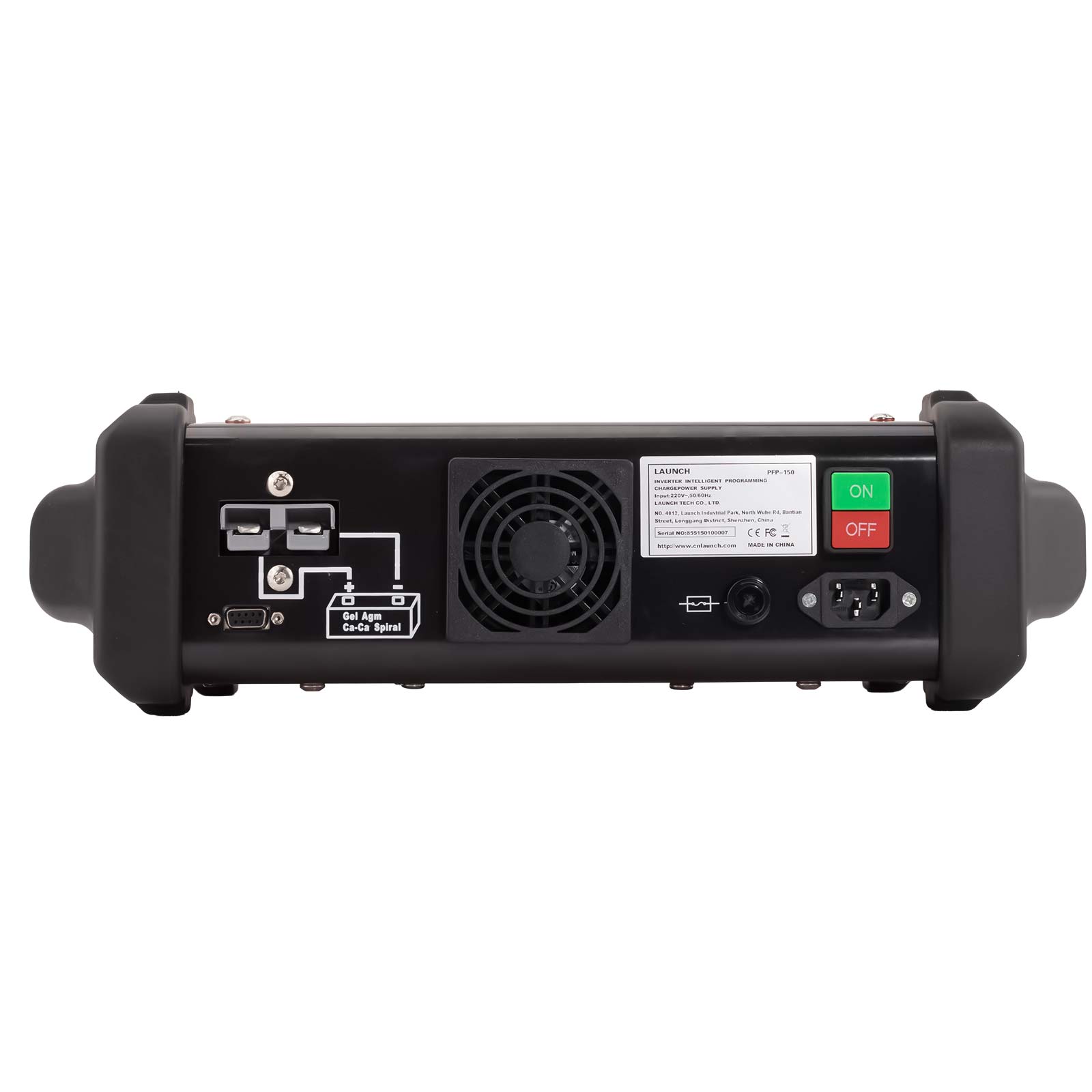

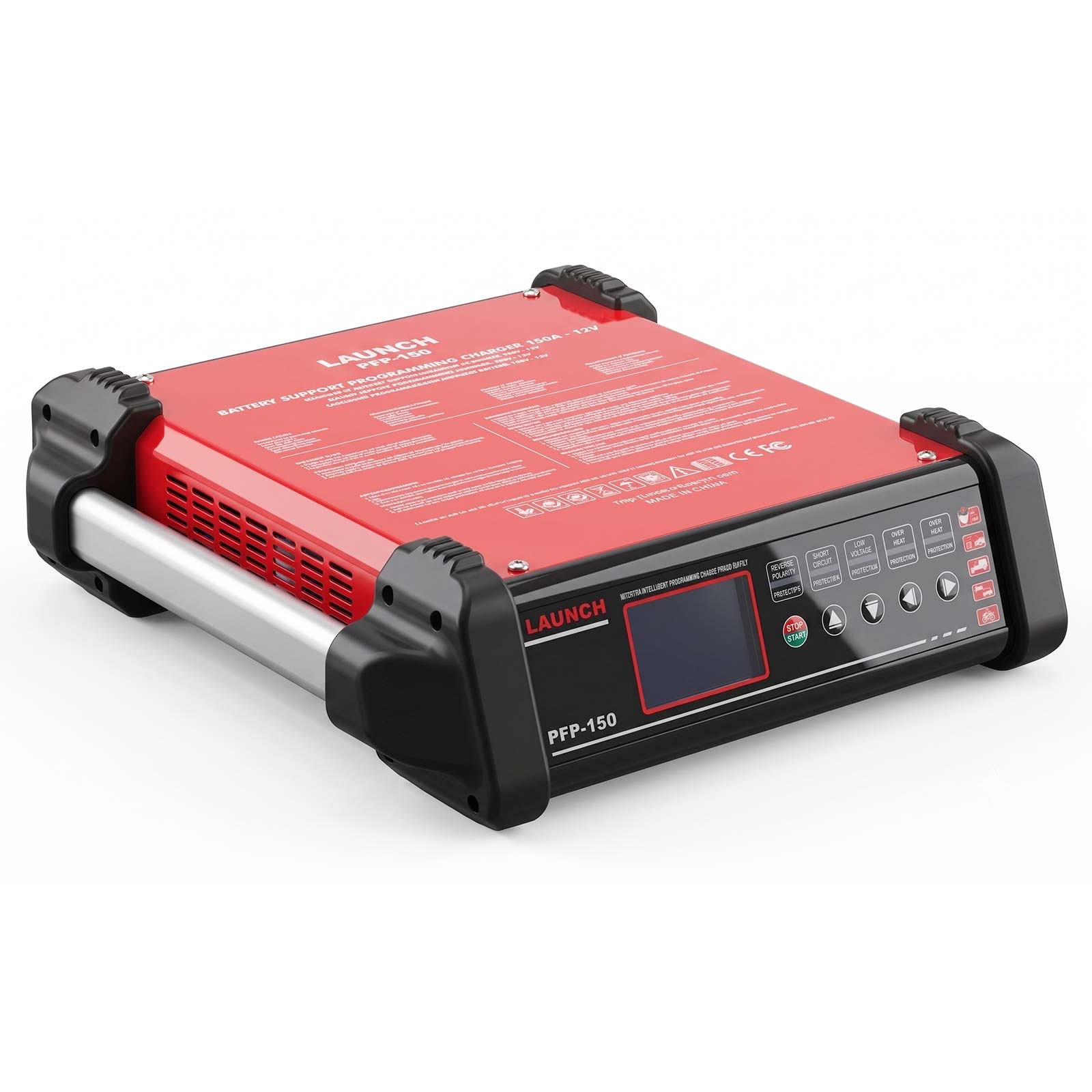

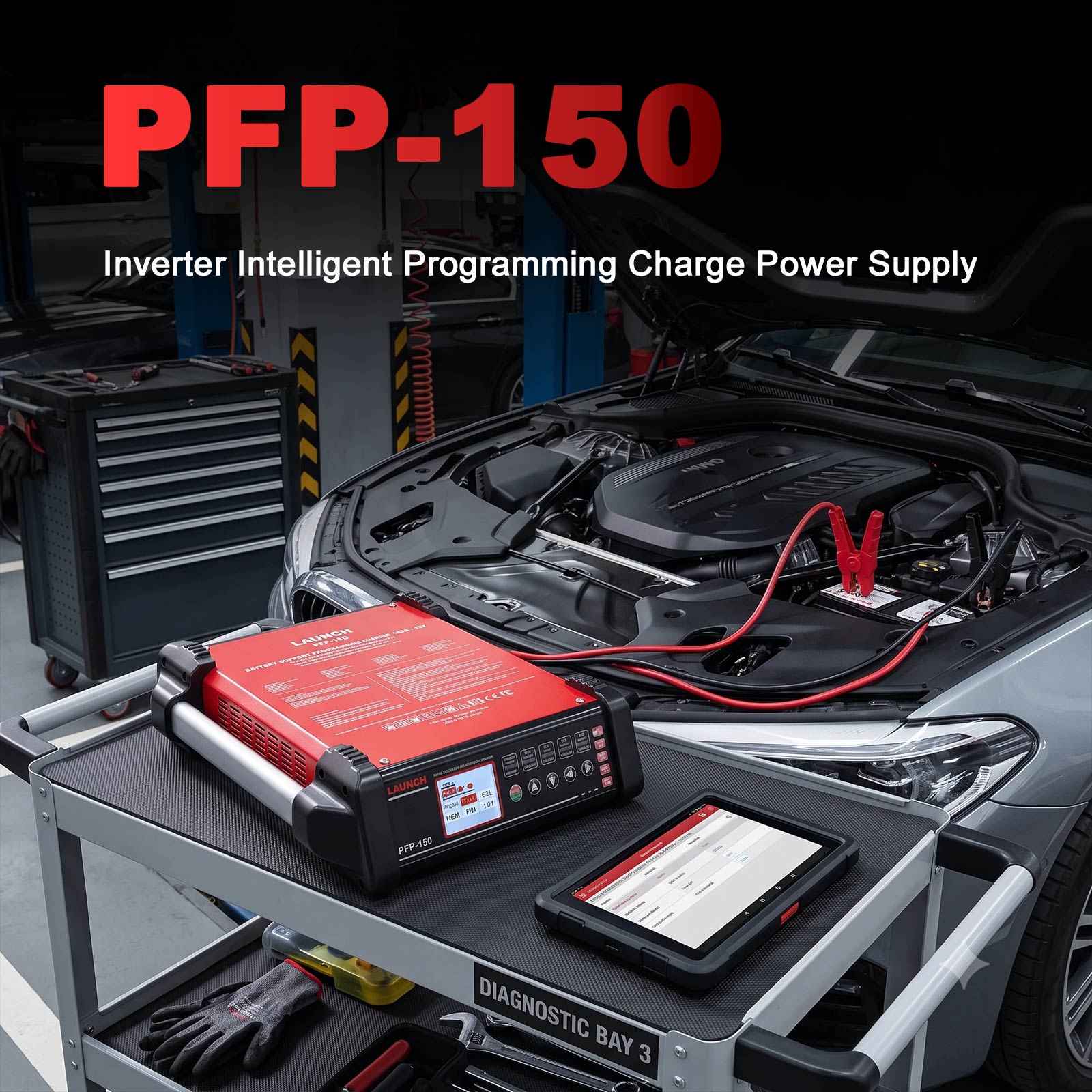

LAUNCH PFP-150 Inverter Intelligent Programming Charge Power Supply for All Types of Vehicles, Cars, Trucks, Boats, Tractors, Buses

Descrizione del prodotto

Launch PFP150 PFP-150 Programming Flash Power

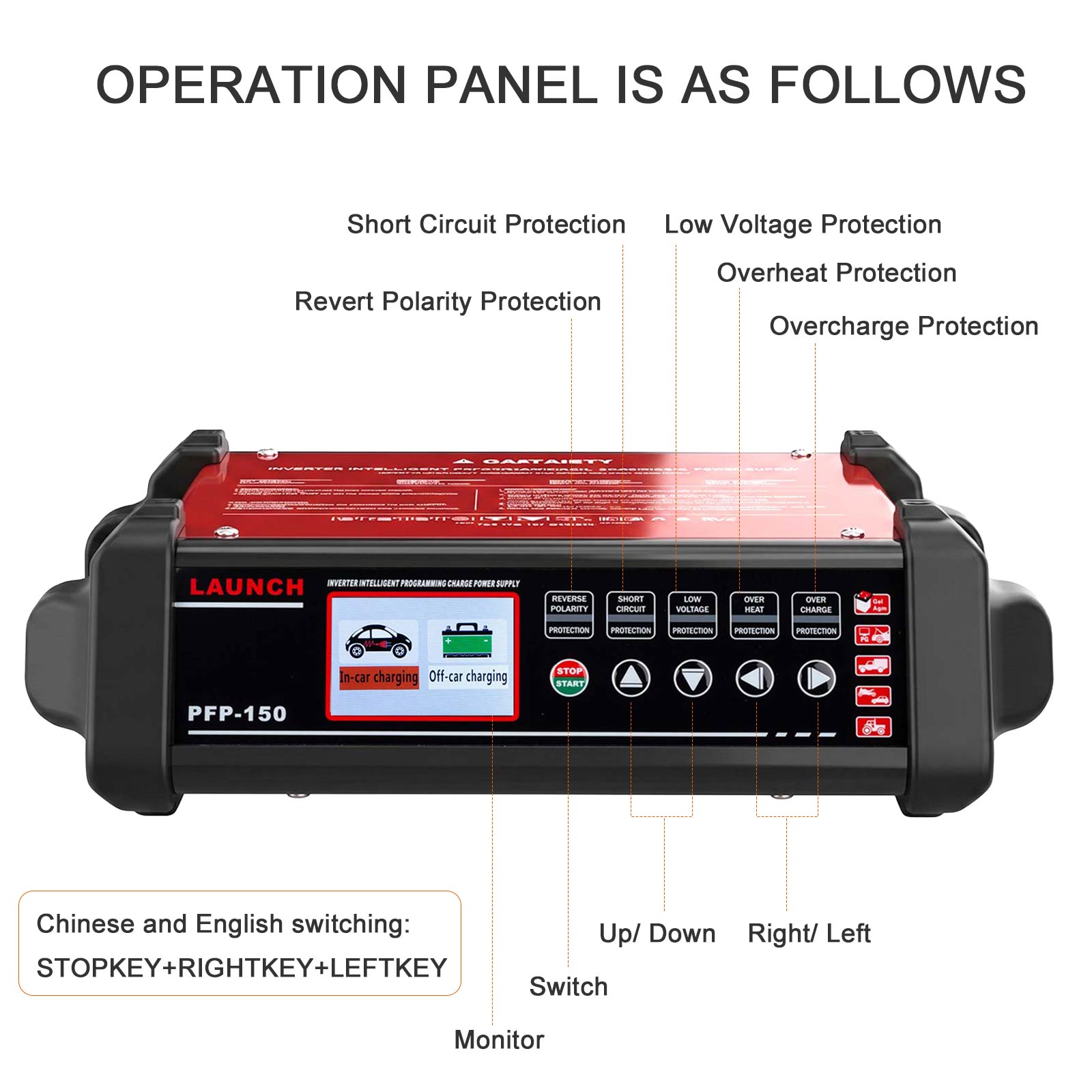

• 5 Protection Modes: Reverse Protection, Short Circuit Protection, Low Voltage Protection, Overheat Protection, Overcharge Protection, Synchronous Rectification (220V only)
• Normal Mode: Select the charging mode according to the position of vehicle battery (inside or outside)
• Exhibit Mode: For continual charge with low current in showrooms
• Programming Mode: Provide a stable voltage source for the car in need of programming or decoding, ranging from 12V to 16V
• Hidden Repair Mode: Indicate whether the battery should be repaired or not. Work with various batteries, such as AGM battery, Gel battery.

PFP-150 programming flash power can achieve automatic detection, automatic maintenance, and automatic charging and repair based on the health status of the battery; It can be used for pulse charging and battery repair both inside and outside the vehicle, as well as for charging and repairing various types of batteries such as ordinary batteries, EFB, AGM, GEL, and lithium batteries (LFP, NCM);
PFP-150 programming flash power adopts synchronous rectification technology, which is a new technology that uses dedicated power MOSFETs (metal oxide semiconductor field-effect transistors) with extremely low on state resistance to replace rectifier diodes and reduce rectification losses. It can greatly improve the efficiency of DC/DC converters and there is no dead zone voltage caused by Schottky barrier voltage.

Launch PFP150 Features:

• Equipped with automatic detection, charging, display mode, regulated power programming, automatic repair of faulty batteries, and other working modes.
• Equipped with protection functions such as battery alarm, overload, overheating, overcharging, short circuit, polarity reversal, etc.
• Sparkless, dedicated charging curve suitable for all battery technologies.
• The voltage value of programming mode can be adjusted according to different vehicle models (12V~14.8V).
• During the charging process, it has overvoltage protection, overcurrent protection, short circuit protection, polarity reversal protection, and high temperature alarm.
• Automatic battery repair and other functions can detect, charge, and repair different types of batteries, suitable for advanced charging equipment in car repair stations, 4S stores, and repair workshops.
• Can be used for static maintenance, testing, and programming of electronic control systems in vehicles; Prevent damage to vehicle control components and data loss due to low battery level during vehicle programming or other testing.
• Stable current output of 1-150A, maximum 150A; Low heat generation and high energy conversion efficiency.

Specification:

Input Voltage	110V / 220V
Power	1800W
Max. Current	150A
Charging Voltage	12V
Programming Mode	2~14.8V / 2~150A
MAH	10~1800Ah
Dimension	430.5*392.5*140 mm
Electric Cable Length	2.5m
Net Weight	8.6kg

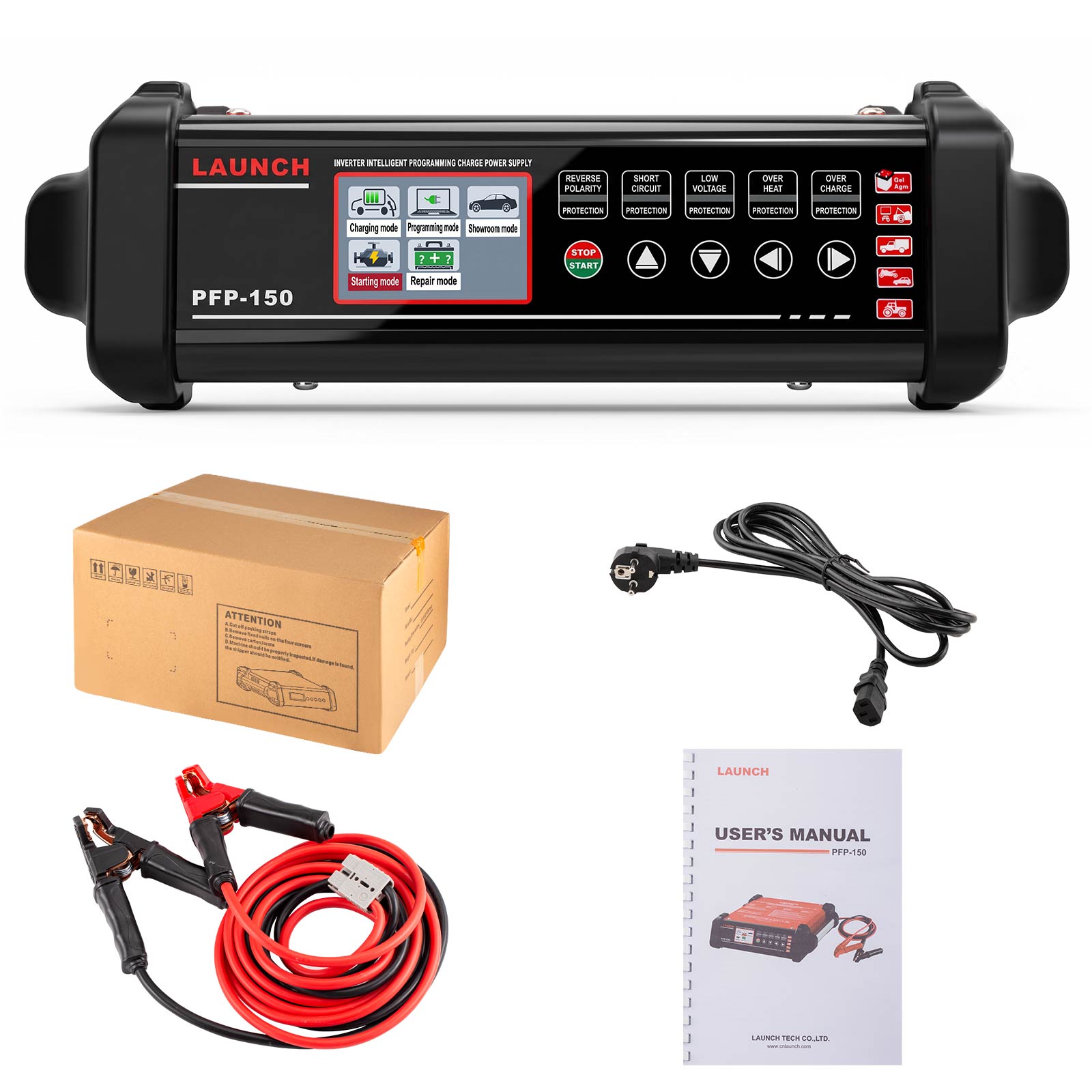

Package List:

- Main unit
- Test Cables
- Power cable 220V
- User's manual



---
