Descrizione del prodotto

  1. Supporta la funzione di convalida dei dati del motore.
  2. Utilizzato in combinazione con il programmatore immo X-PROG3.
  3. Aggiornamento gratuito per un anno！

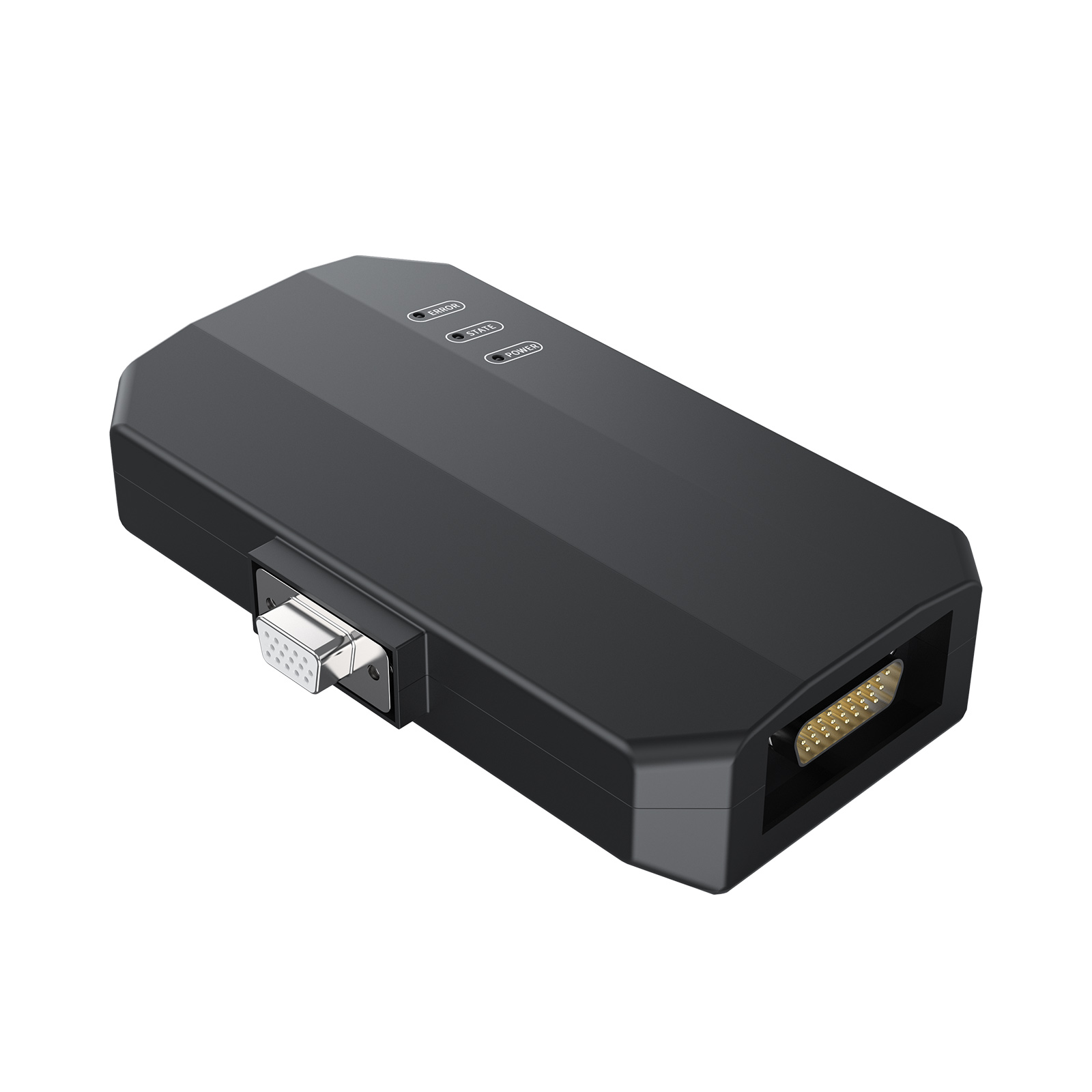

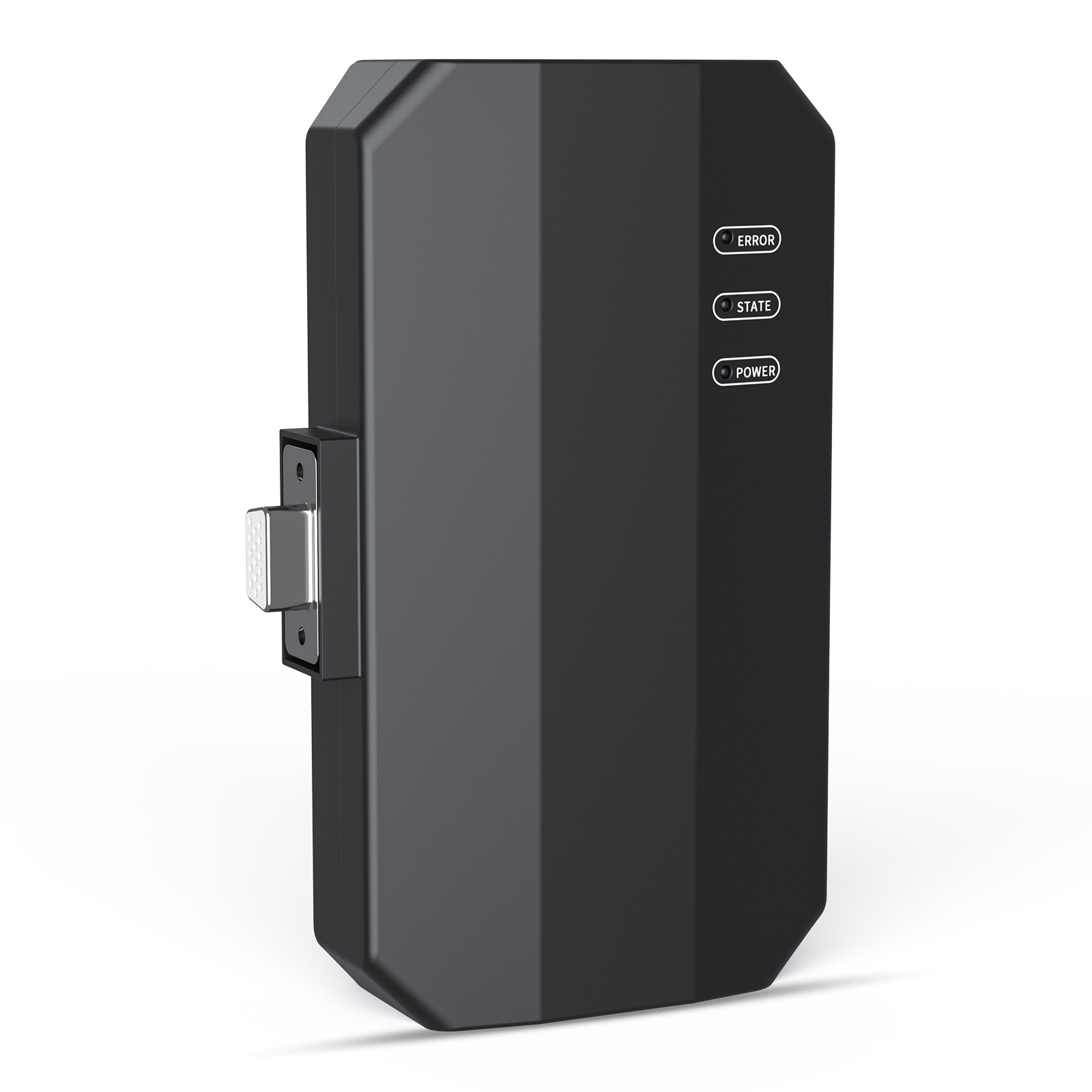

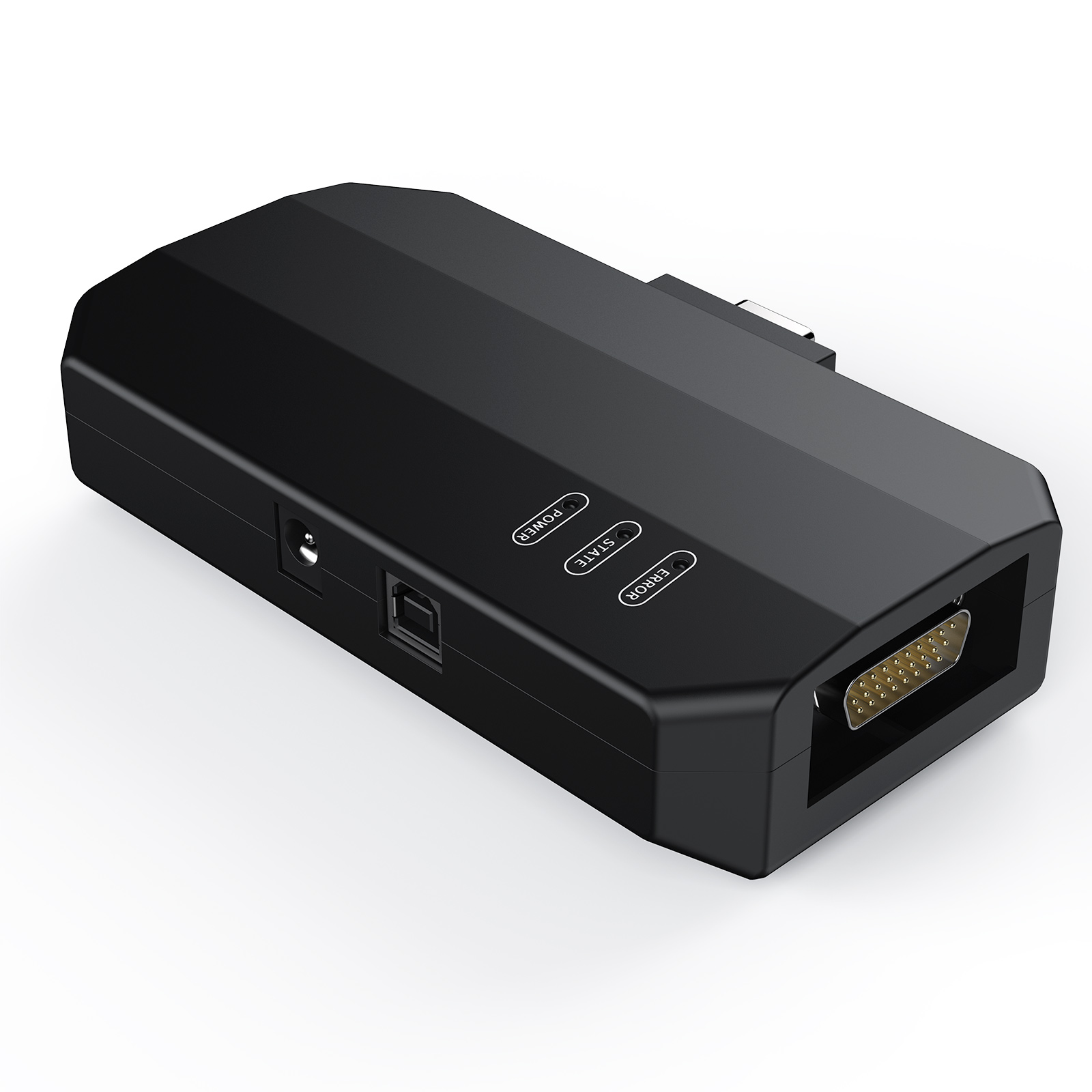

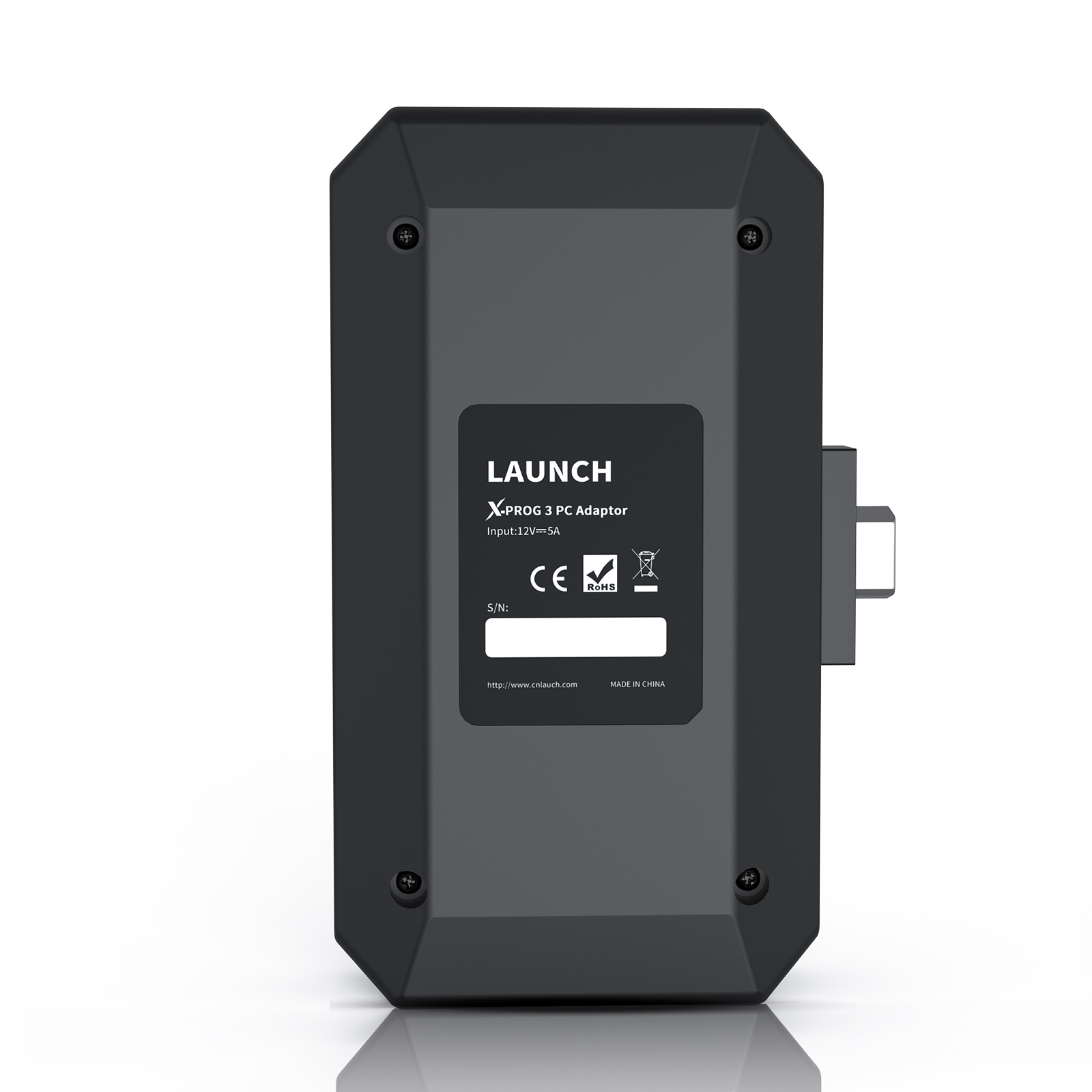

Launch X431 IMMO Programmer  X-PRO G3 PC Adaptor

Product Features:

1. Used in conjunction with X-PROG3 anti lift matching programmer

2. 2D menu, clear and easy to choose

3. Powerful search function

4. Convenient modification of ECU data

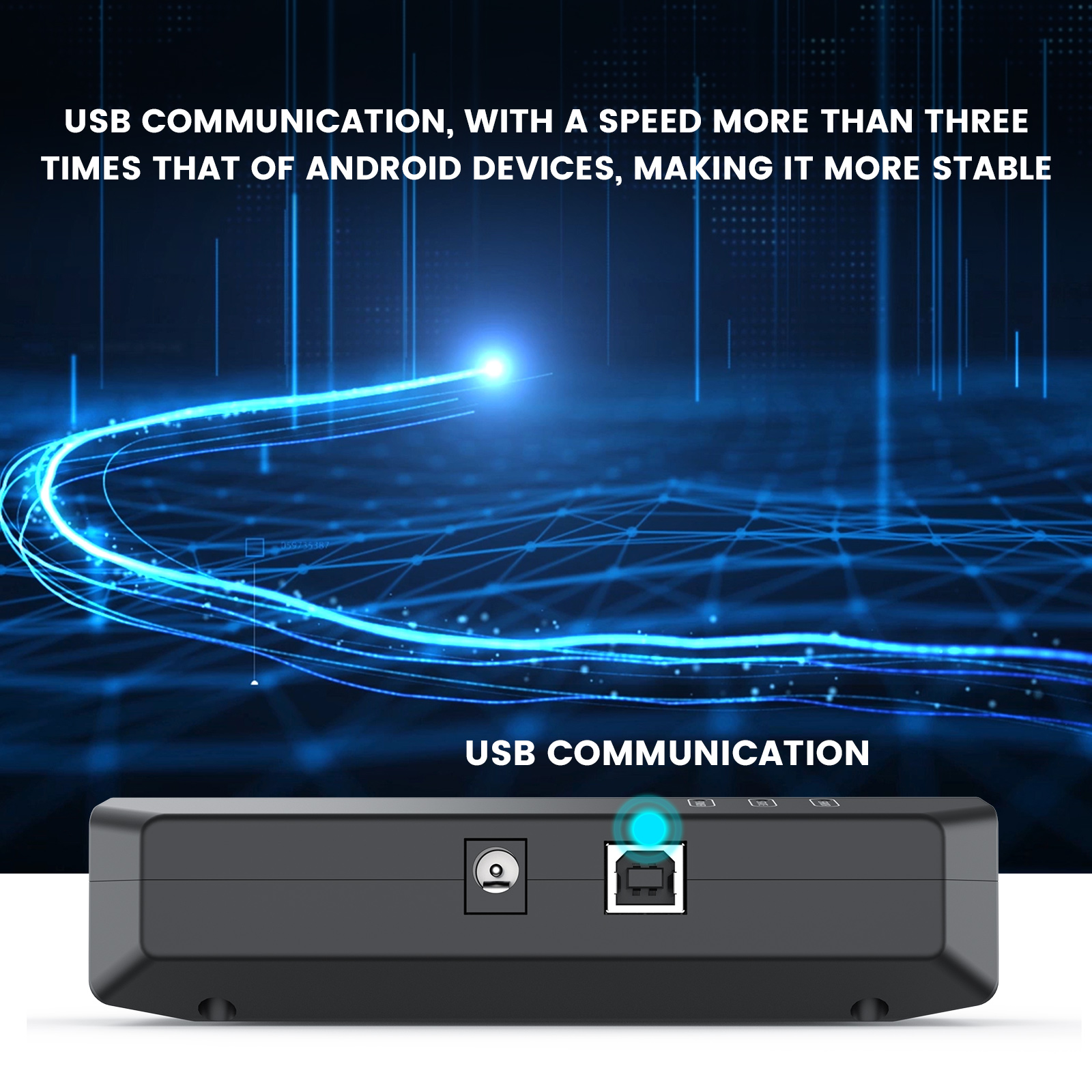

5. USB communication, with a speed more than three times that of Android devices, making it more stable

6. Easy to copy data

7. Support engine data validation function

Software download link: https://en.cnlaunch.com/download

PC Software Interface Description:

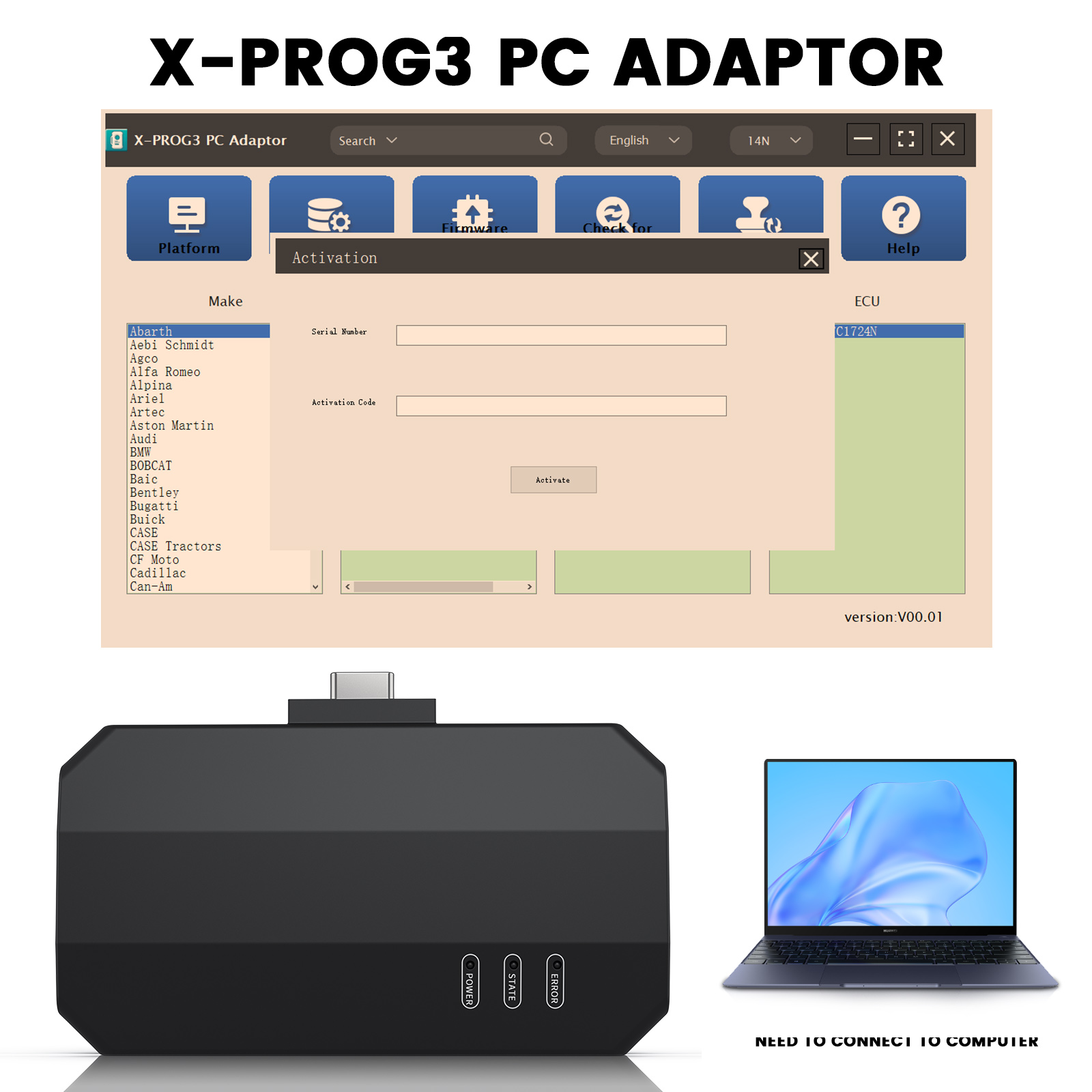

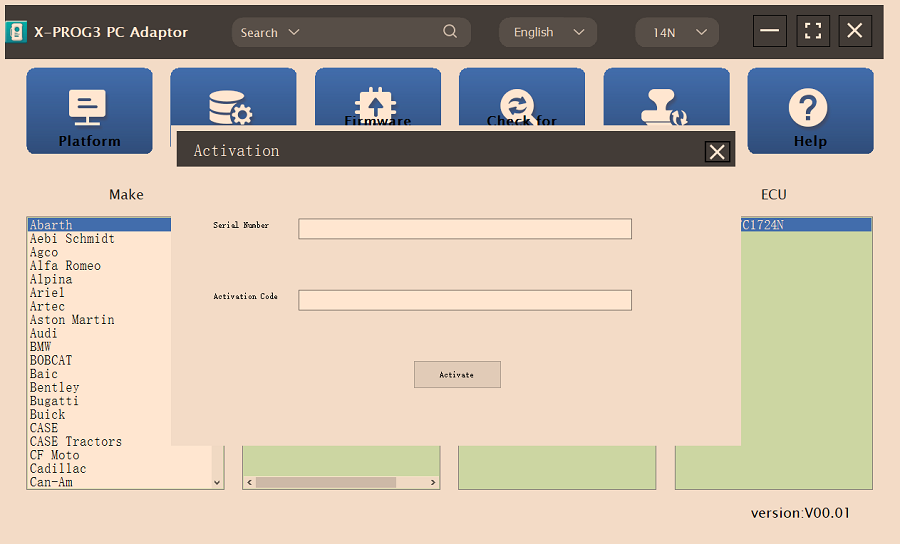

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1



I.ECU Data Reading/Writing

1. Obtain the related ECU.

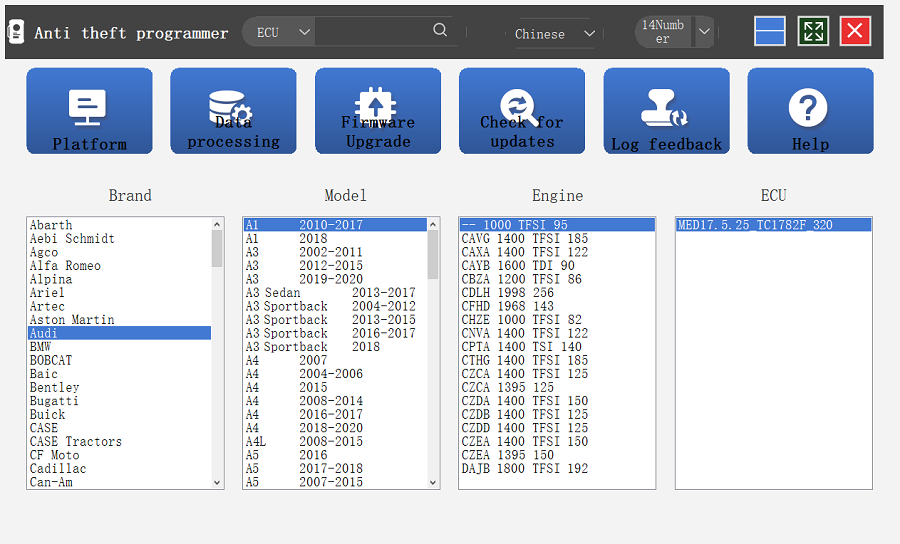

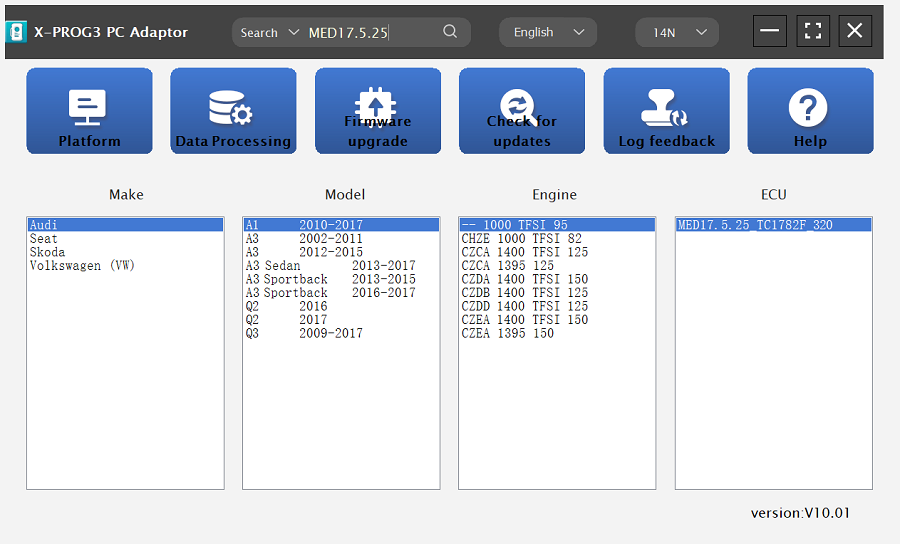

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 2.



(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 3.

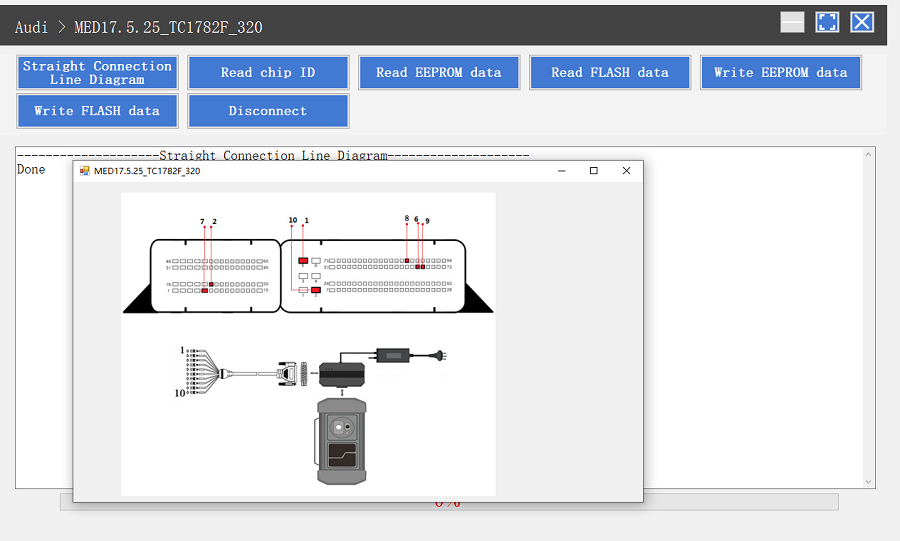

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure 4.

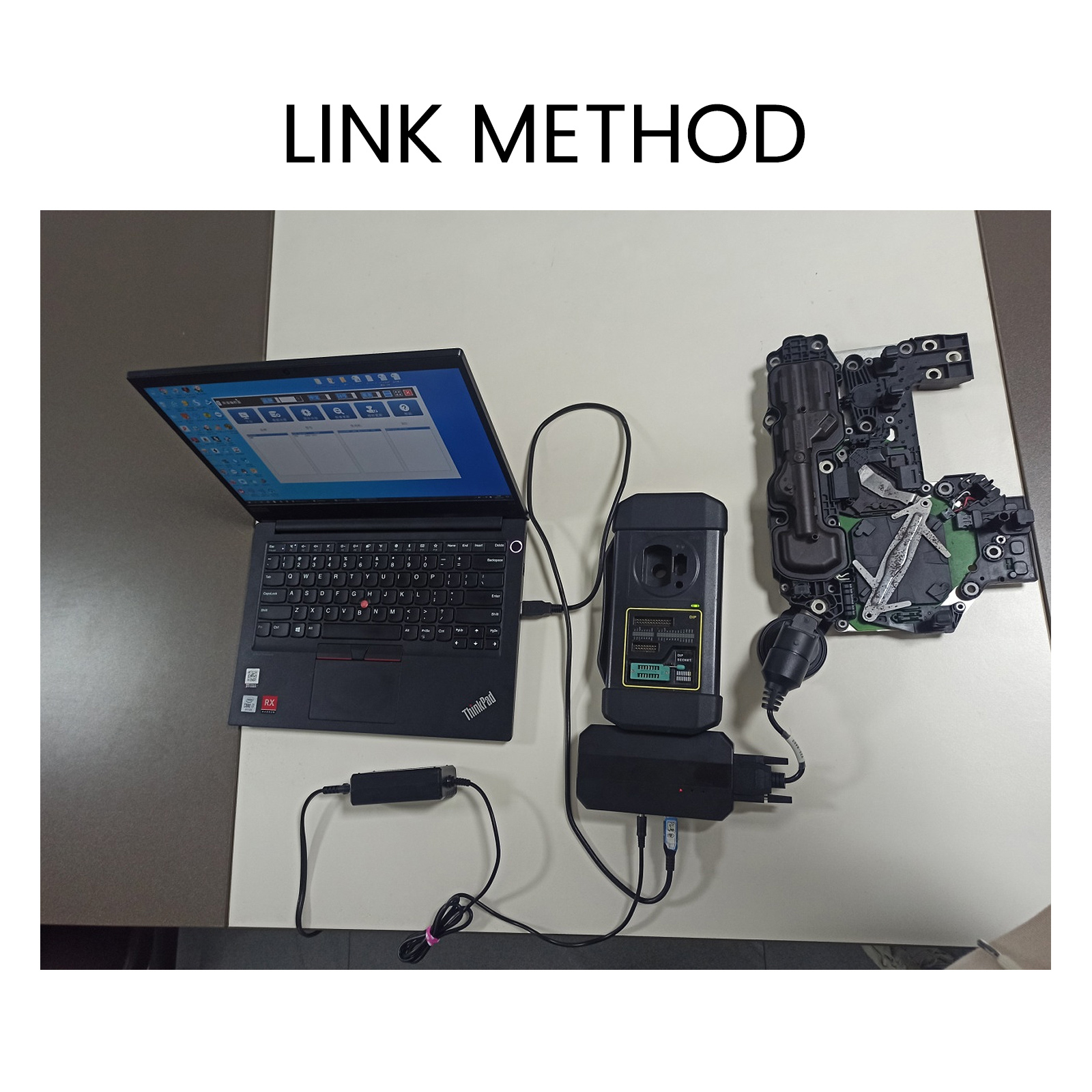

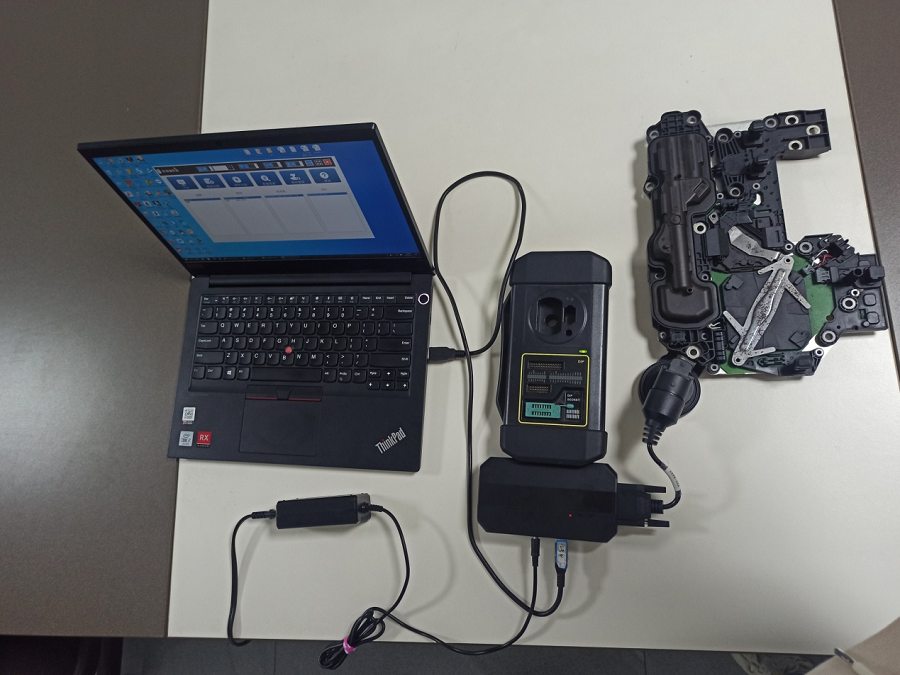

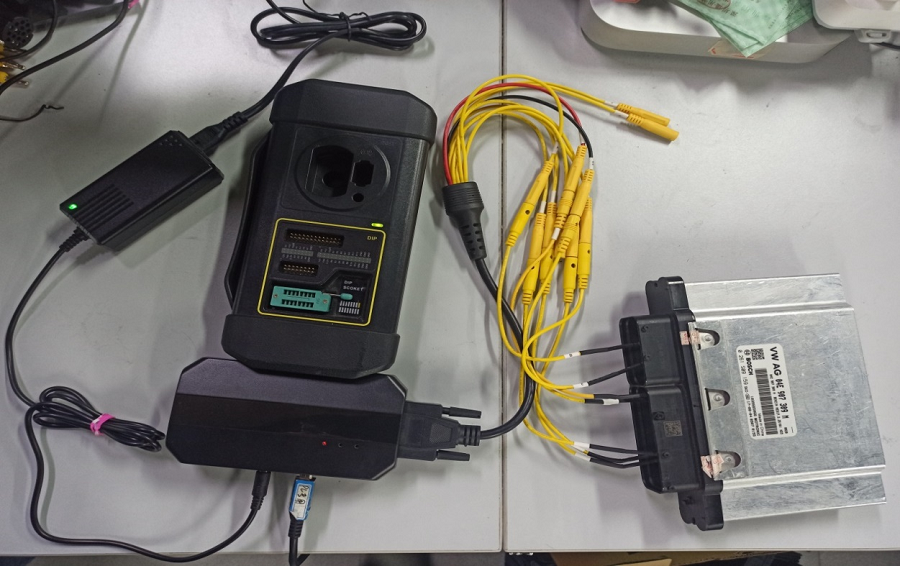

3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

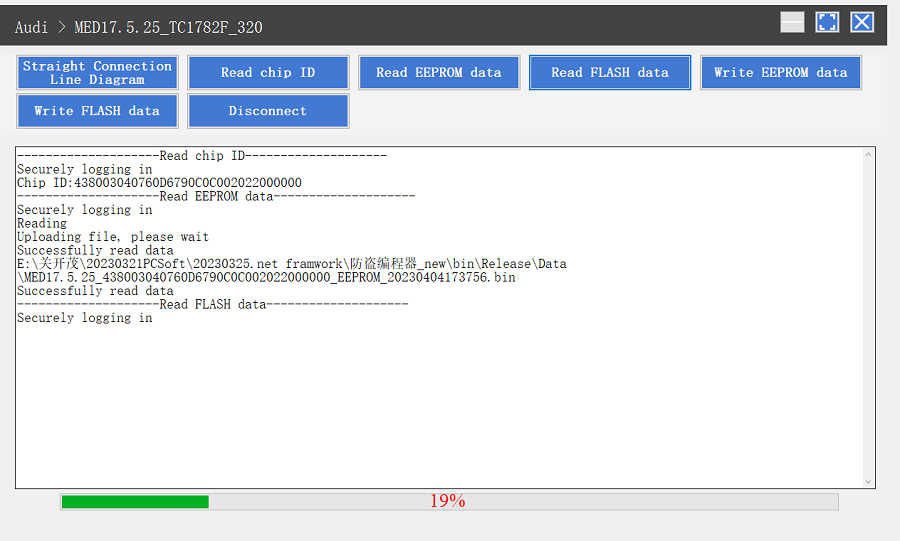

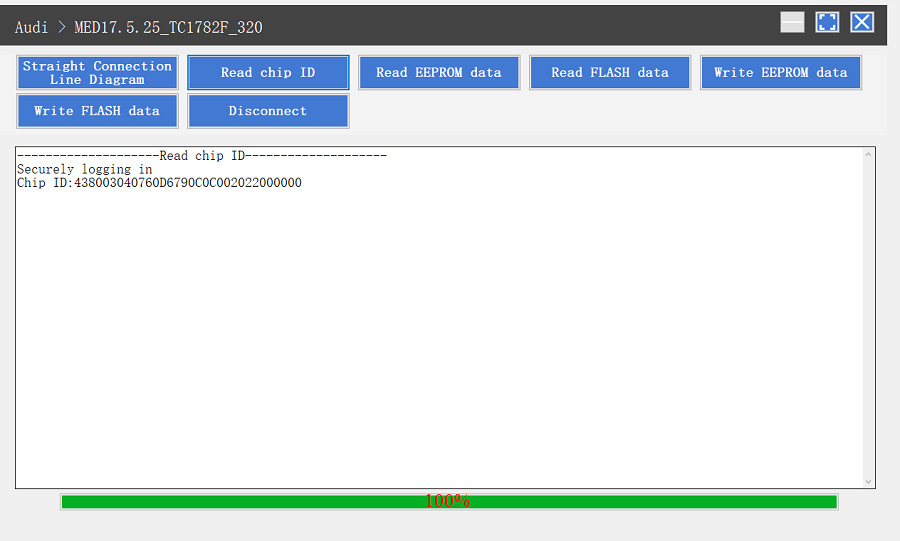

4. Read the chip ID, as shown in Figure 7.

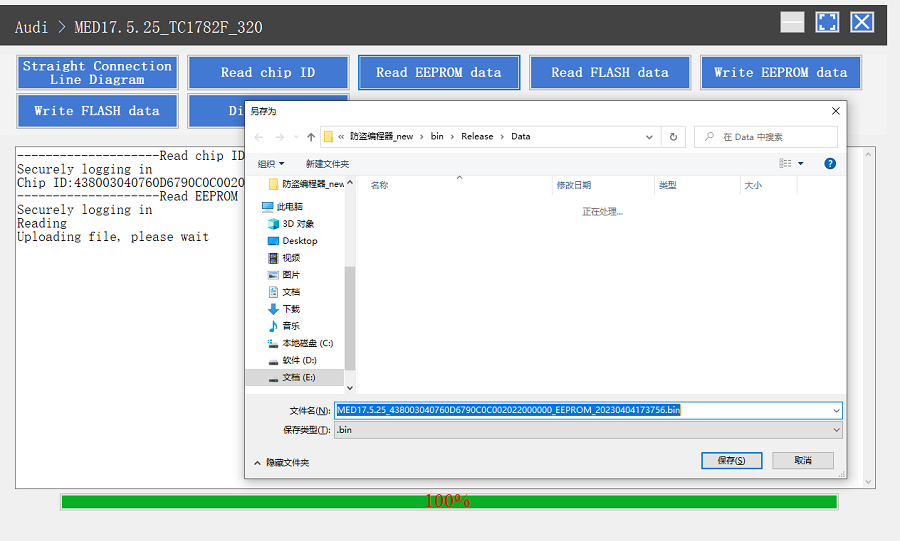

5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).


6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).

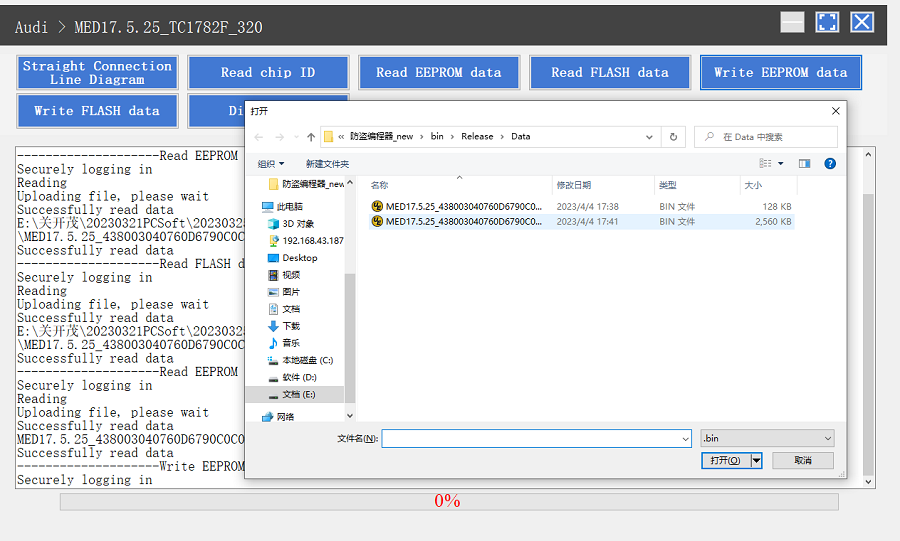

7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).


II. Data Processing

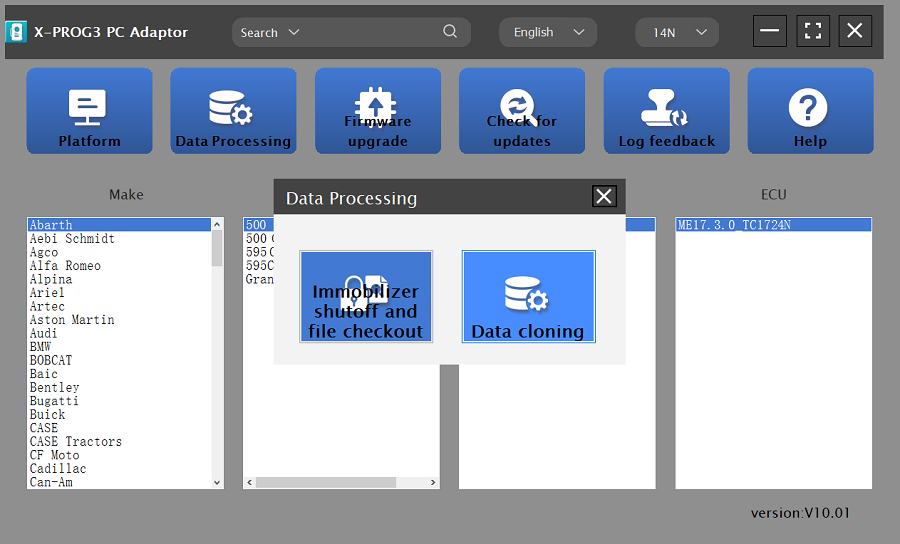

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure 12.

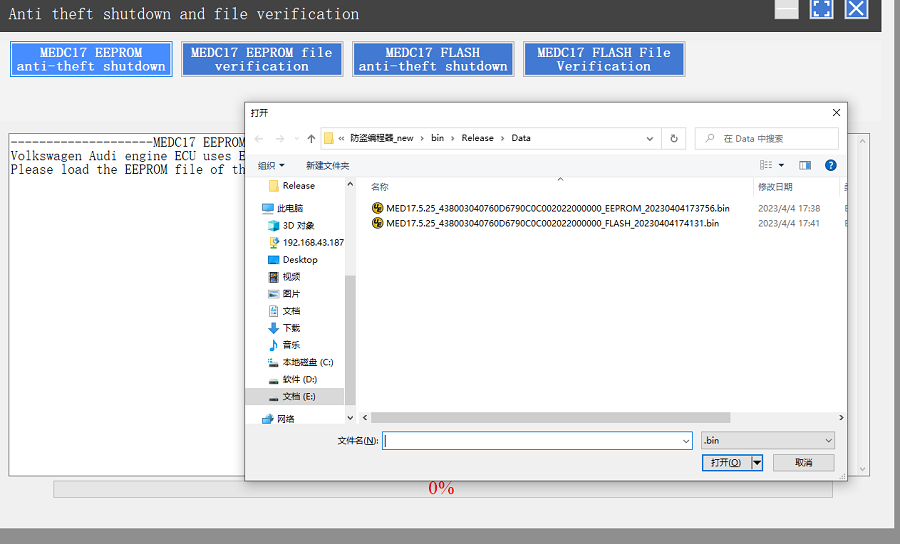

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.



Support list June 2023:

ECU Name ECU Type ECU Brand G3 FLEX
EDC16XX ECM Bosch Support Support
EDC17XX ECM Bosch Support Support
MD1CSXXX ECM Bosch Support Support
MD1CPXXX ECM Bosch Support Support
ME17.X.X ECM Bosch Support Support
MED17.X.X ECM Bosch Support Support
MED9.X.X ECM Bosch Support Support
MEV17.X.X ECM Bosch Support Support
MEVD17.X.X ECM Bosch Support Support
MG1CSXXX ECM Bosch Support Support
MG1CPXXX ECM Bosch Support Support
MSDXX ECM CONTINENTAL/SIEMENS Support Support
MSVXX ECM CONTINENTAL/SIEMENS Support Support
SDIX ECM Continental Support Support
GM EXX/TXX ECM DELCO Support Support
SIM271XX ECM Continental Support Support
SIMOS12.X ECM Continental Not support Support
SIMOS8.X ECM Continental Support Support
SIMOS-PCR2.X ECM Continental Not support Support
6HPXX TCM ZF Support Support
8HPXX TCM ZF Support Support
7DCT300 TCM ZF Support Support
9G Tronic TCM Bosch Support Support
ALXXX TCM ZF Support Support
TCXX TCM Bosch Support Support
DPS6/DC4 TCM GETRAG Support Support
DKG TCM GETRAG Support Support
DLXXX TCM Temic Support Support
DQXXX TCM Temic Support Support
MPS6 TCM GETRAG Support Support
SPS6 TCM GETRAG Support Support
VGSX TCM GETRAG Support Support
VL381 TCM Temic Support Support
GM 6TXX/6LXX TCM DELCO Support Support
MEDG17.9.8 TCM Bosch Support Support
MEG17.9.2 TCM Bosch Support Support

Optional adapter accessories(Not included in the package):

　 Accessory
Name		 Material
code		 function picture
1 X-PROG3 Adapter Cable 1 (DQ200XX) 307110077 Used to connect the DQ200XX gearbox, and available models include VW, Audi, etc.
2 X-PROG3 Adapter Cable 2 (VL381) 307110078 Used to connect the VL381 gearbox, and available models include VW, Audi, etc.
3 X-PROG3 Adapter Cable 3 (DQ380) 307110079 Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include VW, Audi, etc.
4 X-PROG3 Adapter Cable 4 (DQ250) 307110080 Used to connect the DQ250 gearbox, and available models include VW, Audi, etc.
5 X-PROG3 Adapter Cable 5 (DL501) 307110081 Used to connect the DL501XX gearbox, and available models include VW, Audi, Porsche, etc.
6 X-PROG3 Adapter Cable 6 (DL382) 307110082 Used to connect the DL382 gearbox, and available models include VW, Audi, etc.
7 X-PROG3 Adapter Cable 7 (VGS-NAG3) 307110083 Used to connect the VGS-NAG3 gearbox, and available models include Benz, Nissan, etc.
8 X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT) 307110084 Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include Benz, Infiniti, etc.
9 X-PROG3 Adapter Cable 9 (VGS3-NAG2) 307110085 Used to connect the VGS3-NAG2 gearbox, and available models include Benz, etc.
10 X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3) 307110086 Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include BMW, Land Rover, Jaguar, Dodge, Alpina, Chrysler, Rolls Royce, Alfa Romeo, Aston Martin, Great Wall, Jeep, Lamborghini, Maserati, Iveco, etc.
11 X-PROG3 Adapter Cable 11 (MPS6) 307110087 Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include Ford, Renault, Chrysler, Dodge, Land Rover, Volvo, etc.
12 X-PROG3 Adapter Cable 12 (DPS6) 307110088 Used to connect the DPS6 gearbox, and available models include Ford, etc.
13 X-PROG3 Adapter Cable Main Line (ML) 307110089 The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness

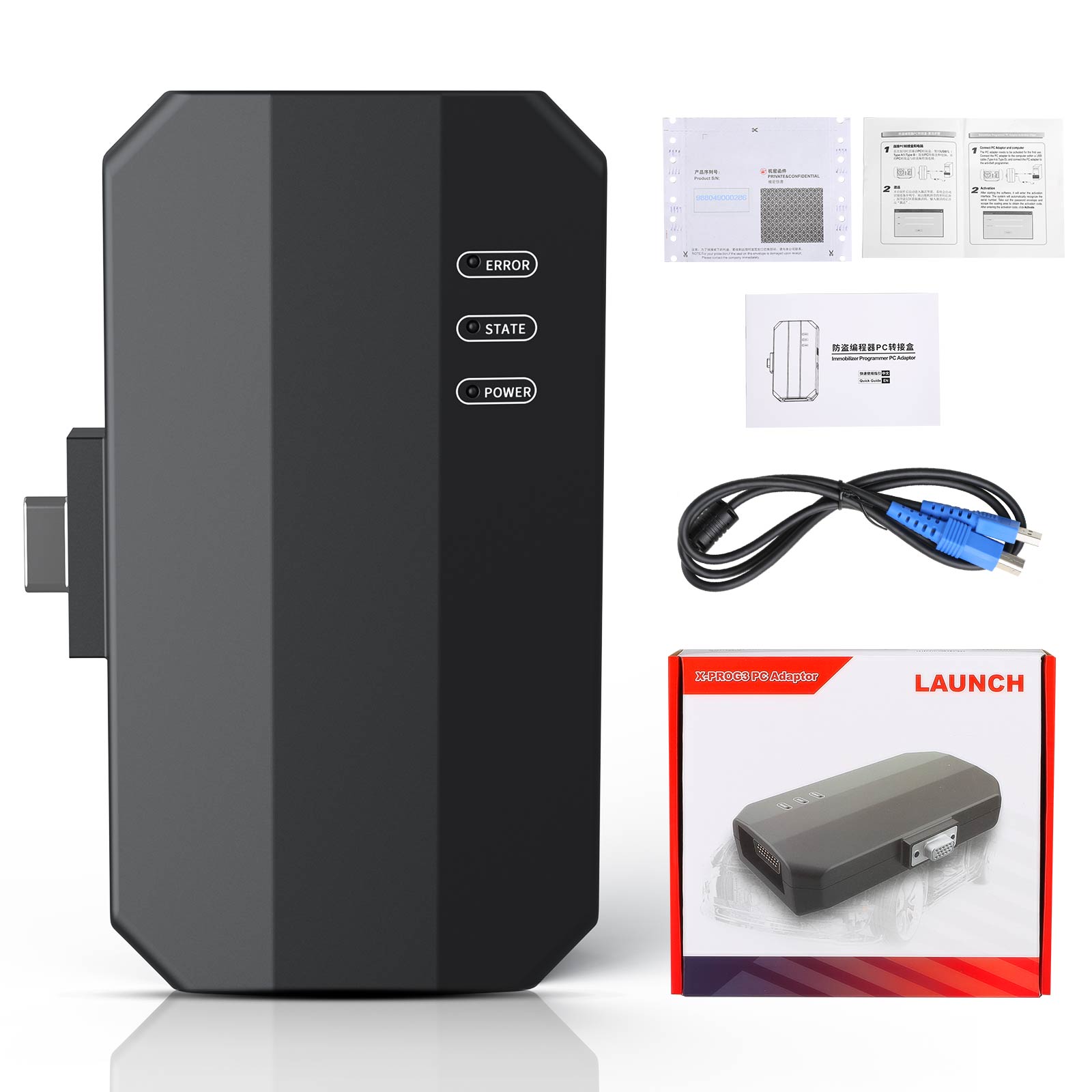

Package Includes:

1pc x Launch X431 IMMO Programmer  X-PRO G3 PC Adaptor
